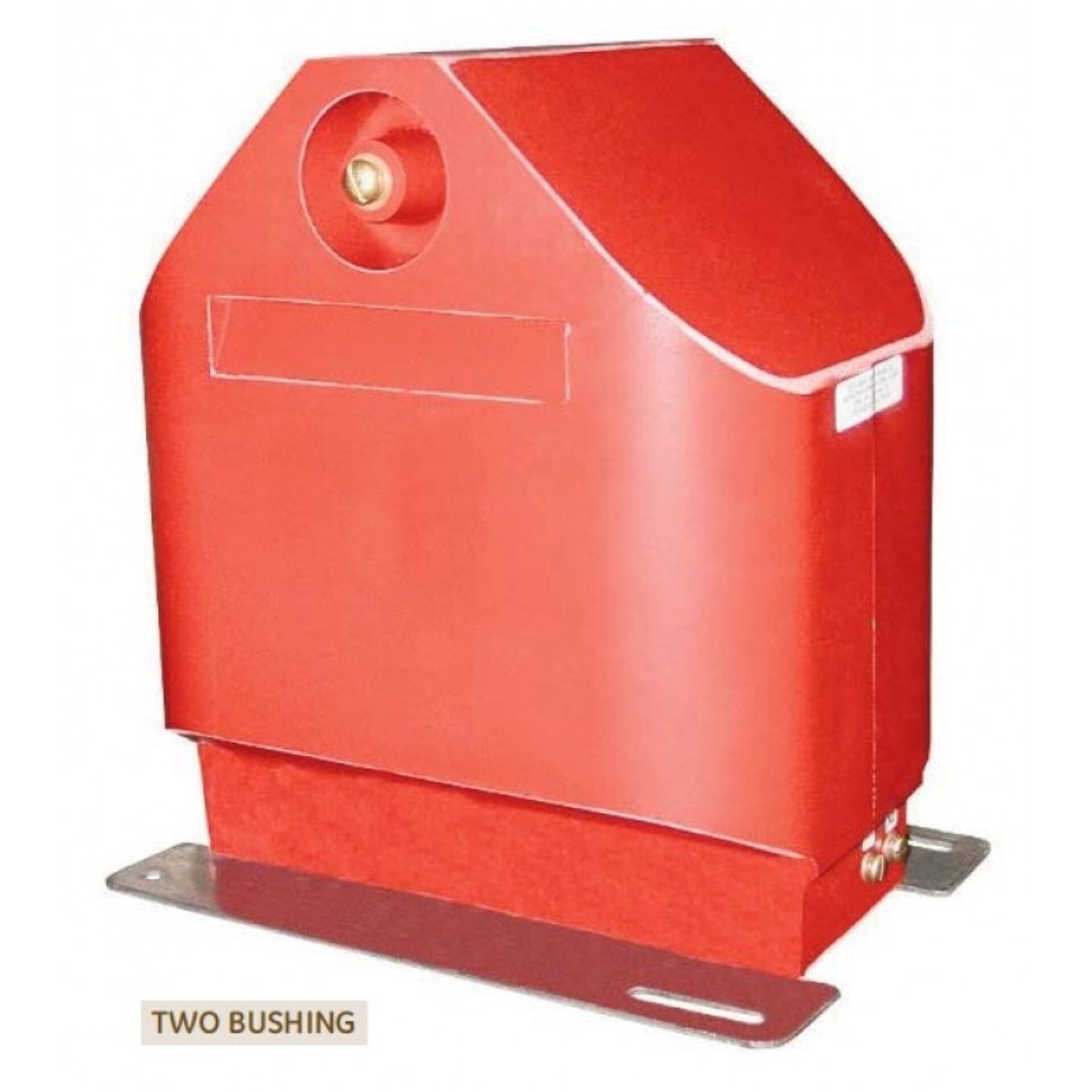

Model PT6-2-125 Medium Voltage Indoor Voltage Transformer
Model PT6-2-125 Medium Voltage Indoor Voltage Transformer
ACCURACY CLASS:
0.3 WXMYZ 1.2ZZ at 100% rated voltage with 120V based ANSI burden.
0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 25.5kV, BIL 125kV.
THERMAL RATING:
1500 VA at 30°C amb.
1000 VA at 55°C amb.
WEIGHT: Approximate weight 125 lbs.
Overview
ACCURACY CLASS:
0.3 WXMYZ 1.2ZZ at 100% rated voltage with 120V based ANSI burden.
0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 25.5kV, BIL 125kV.
THERMAL RATING:
1500 VA at 30°C amb.
1000 VA at 55°C amb.
WEIGHT: Approximate weight 125 lbs.
Request a Quote for Model PT6-2-125 Medium Voltage Indoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 125 kV
- Weight
- 125 lbs
- Mounting
- Indoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 25.5 kV
- Thermal Rating (30°C ambient)
- 1500 VA
- Thermal Rating (55°C ambient)
- 1000 VA
- Construction
- Two-bushing; core and coil vacuum encapsulated in polyurethane resin
- Primary Terminals
- 3/8-16 brass screws with flatwasher and lockwasher
- Secondary Terminals
- 1/4-20 brass screws with flatwasher and lockwasher
- Recommended Primary Fuse
- 25 kV, 0.5E rated
- Regulatory Approval
- Industry Canada approval AE-0676 Rev.2 for revenue metering
- Optional Terminal Kit
- Insulated primary terminal kit P/N 0882B06446
- Minimum Spacing, Unit-to-Unit
- 1.50" (open delta connection)
- Minimum Spacing, HV to Ground in Air
- 8.50"
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 18000 | 120 | 150:1 |
| 21000 | 120 | 175:1 |
| 24000 | 120 | 200:1 |
