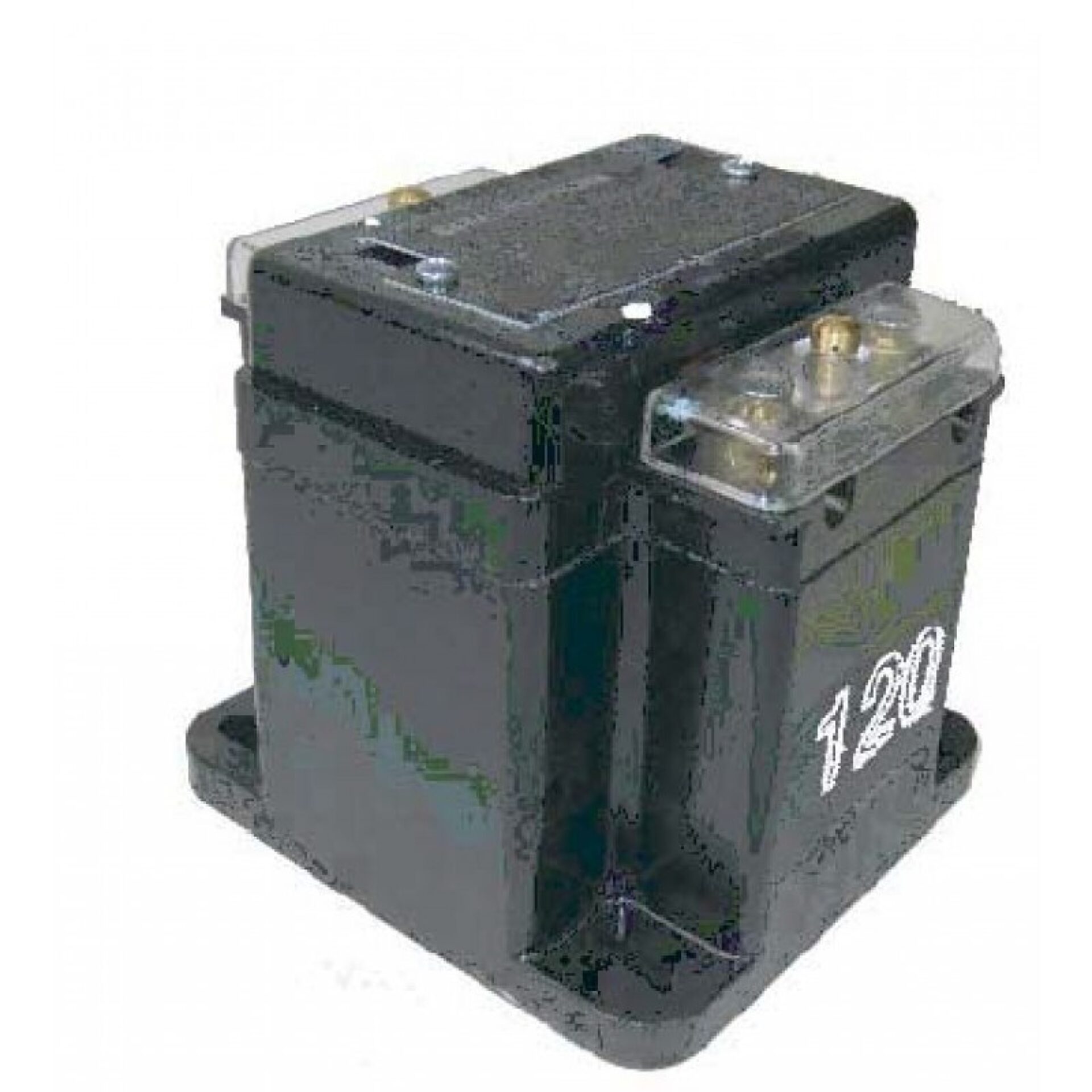

Model PTM-O Indoor/Outdoor Voltage Transformer
Model PTM-O Indoor/Outdoor Voltage Transformer - Transformers
APPLICATION: Designed for indoor and outdoor service; suitable for operating meters, instruments, relays and control devices. THERMAL RATING (VOLT-AMPERES): 55oC Rise above 30oC Ambient - 200 VA WEIGHT (Approximate): Unfused - 9.75 lbs REFERENCE DRAWINGS: Outline - 0122C02910 INSULATION LEVEL: 0.6kV; BIL 10kV full wave FREQUENCY: 60 Hz
Overview
APPLICATION: Designed for indoor and outdoor service; suitable for operating meters, instruments, relays and control devices. THERMAL RATING (VOLT-AMPERES): 55oC Rise above 30oC Ambient - 200 VA WEIGHT (Approximate): Unfused - 9.75 lbs REFERENCE DRAWINGS: Outline - 0122C02910 INSULATION LEVEL: 0.6kV; BIL 10kV full wave FREQUENCY: 60 Hz
Request a Quote for Model PTM-O Indoor/Outdoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 9.75 lbs
- Mounting
- Indoor
- Application
- Metering, Protection, Industrial
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Thermal Rating
- 200 VA
- IEEE Accuracy Class
- 0.3 at burden W, 0.6 at burden X
- Construction
- Core and coil in a plastic shell, polyurethane encapsulated
- Terminals
- Tin-plated fixed brass posts, No. 6 to No. 14 wire
- Nameplate
- Laser-engraved aluminium, top mounted
- Weight
- 9.75 lbs
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 120 | 120 | 1:1 |
| 240 | 120 | 2:1 |
| 300 | 120 | 2.5:1 |
| 360 | 120 | 3:1 |
| 480 | 120 | 4:1 |
| 600 | 120 | 5:1 |
