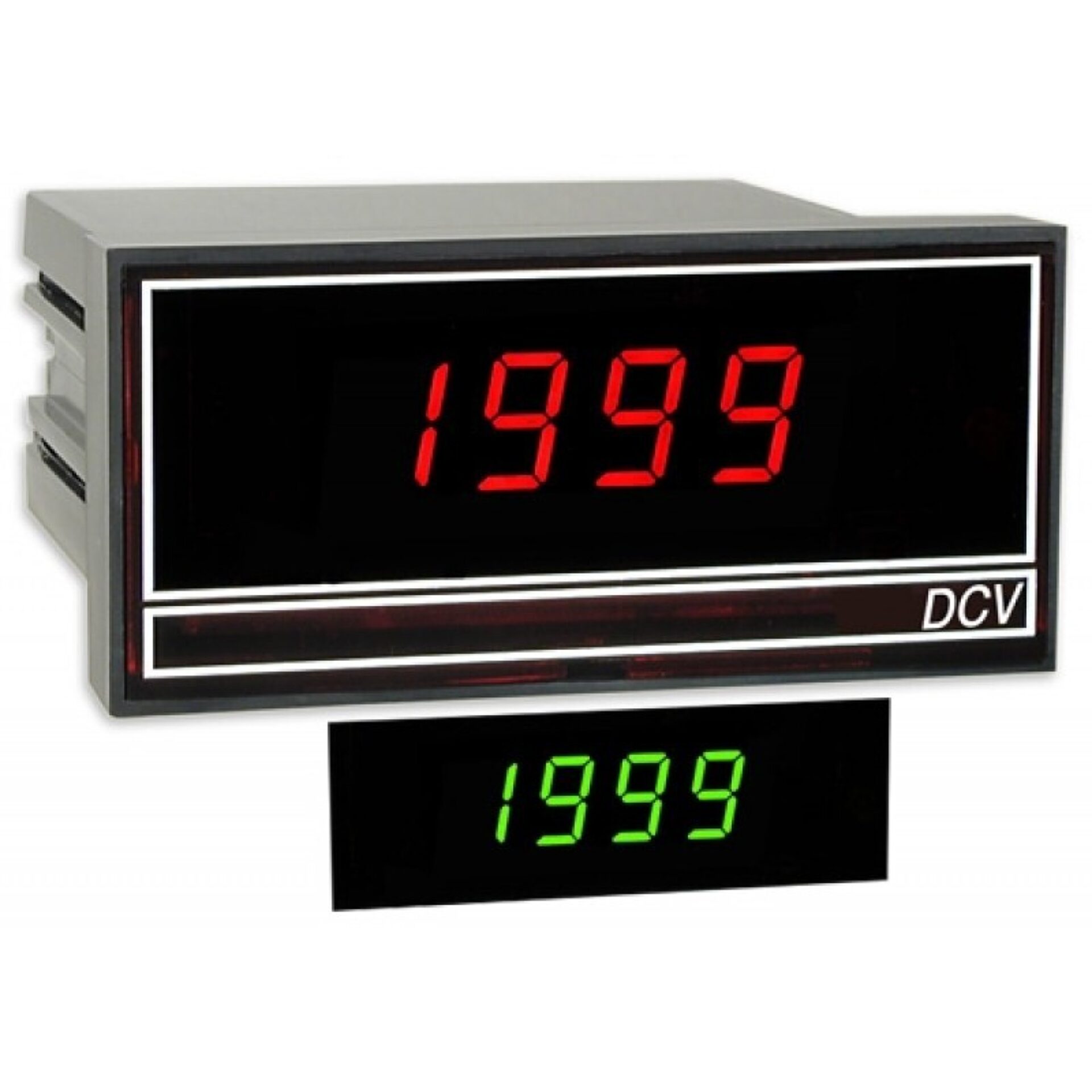

Model RP-35A Autozeroing Panel Meter

The Model RP-35A is a precision, autozeroing 31?2 digit meter designed to fit most other manufacturers’ panel cutouts, including DIN/NEMA standard. It measures bipolar differential and single-ended DC voltages over five user-programmable ranges from ±199.9 mV to ±1200 V full-scale. Provision has been made for offset capability, as well as for various operating modes, such as a ratiometric ohmmeter, ratiometric voltmeter, current meter, and temperature meter. For 4-20 mA applications, the suggested meter, in the same case size is the UM-35CL. The UM-Series also has temperature, pressure, AC Volts and AC Amp meters that are in the same case size as the RP-35A.
