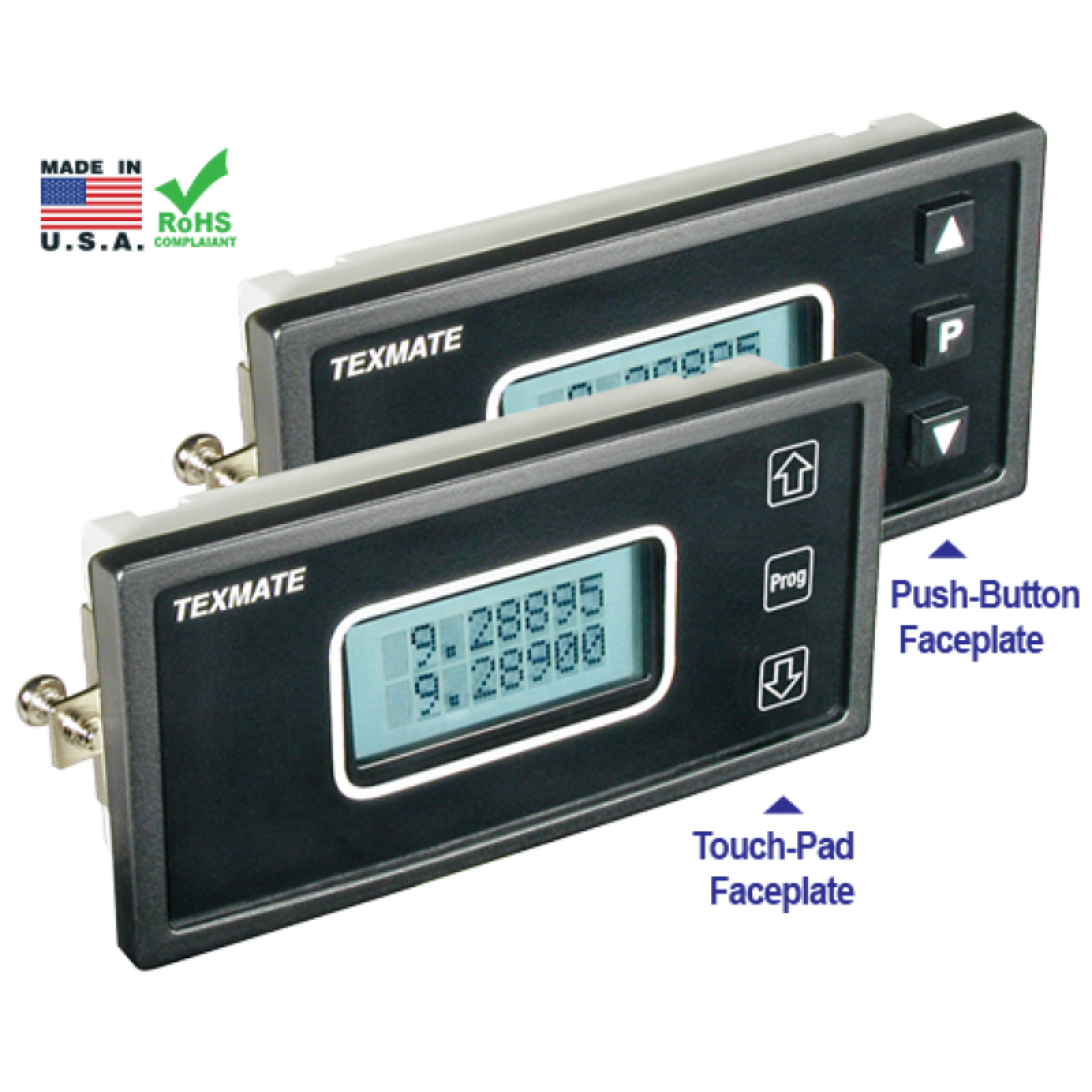

Model SD-802XAI 4-20mA Loop Powered Dual Display Meter with Dual Totalizer
Model SD-802XAI 4-20mA Loop Powered Dual Display Meter with Dual Totalizer
The 1/8 DIN case style and panel appearance of the SD-802XAI meter matches Texmate’s range of Lynx, Leopard, and Tiger 320 Series meter families. The depth behind the panel is only 15 mm (0.59”), increasing to just 27.5 with a connector attached. The SD-802XAI makes an ideal extra or remote display as it can operate in conjunction with the 4-20 mA loop input, or from the 4-20 mA analog output of most Leopard or Tiger 320 Series meters.
Overview
The 1/8 DIN case style and panel appearance of the SD-802XAI meter matches Texmate’s range of Lynx, Leopard, and Tiger 320 Series meter families. The depth behind the panel is only 15 mm (0.59”), increasing to just 27.5 with a connector attached. The SD-802XAI makes an ideal extra or remote display as it can operate in conjunction with the 4-20 mA loop input, or from the 4-20 mA analog output of most Leopard or Tiger 320 Series meters.
Request a Quote for Model SD-802XAI 4-20mA Loop Powered Dual Display Meter with Dual Totalizer
Product Specifications
- Mounting
- Panel mount
- Application
- Metering, Process Control
- Solid state relay rating
- 210 mA, 400 VDC SSR
- Input signal
- 4-20 mA DC loop powered
- External control inputs
- 3 contact-closure inputs
- Case size
- 1/8 DIN, 96 x 48 mm
- IP rating scope
- IP65 with optional NEMA 4X cover
- Digital filtering
- Smart digital filter with programmable input averaging
- Security
- Programmable safety lockout
- Displayed Parameters — Count
- 2
- Displayed Parameters — Notes
- Dual 8-digit, 5.5mm high dot matrix LCD display; sub and grand totalizer processing on a single input channel.
- Output — Kind
- contact
- Output — Max
- 210
- Enclosure IP Rating — Rating
- IP65
