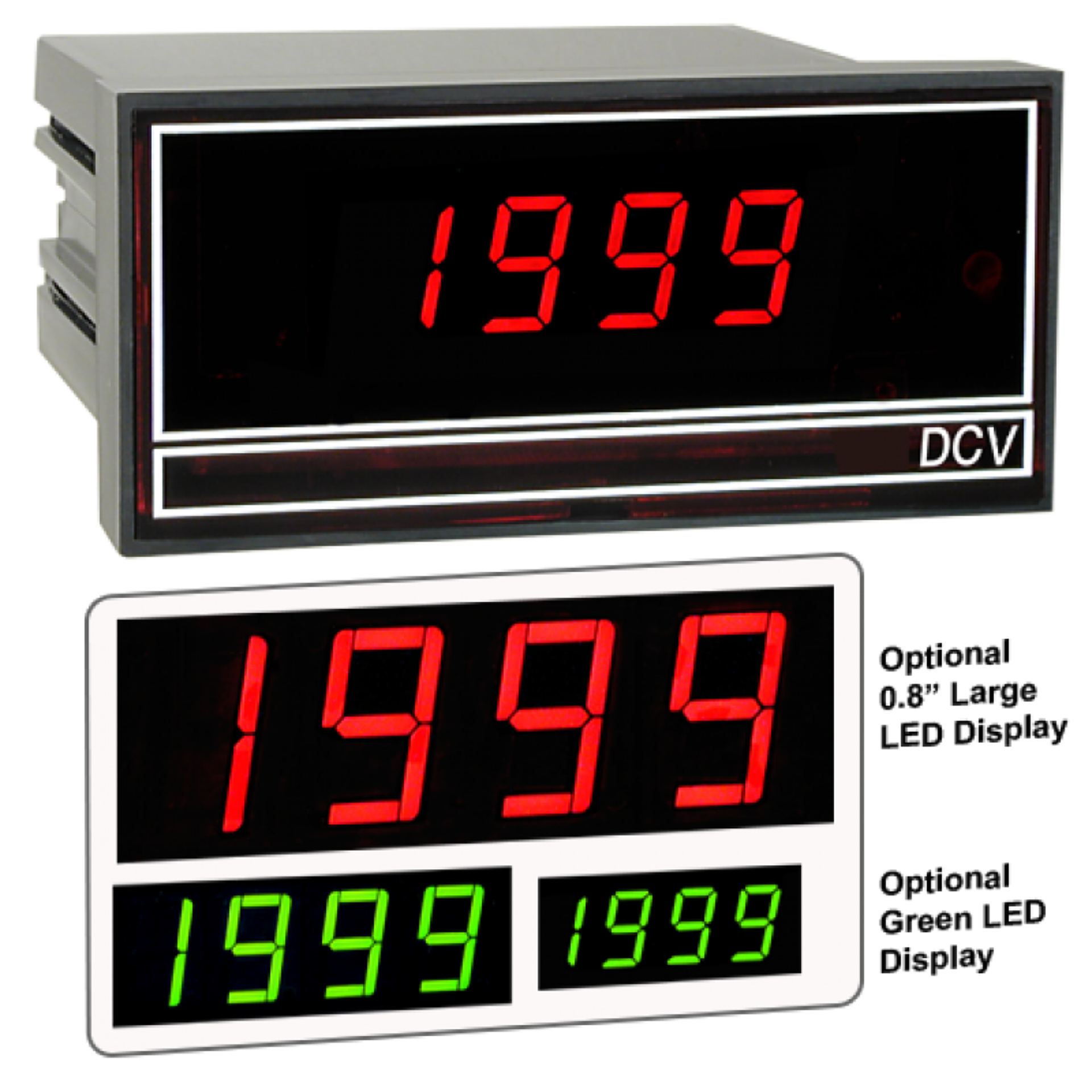

Model UM-35 2V DC to 200V DC Meter

The UM-35 is a low-cost, utility, DC voltage measuring meter with two built-in ranges of 2V and 20V or optionally 2V and 200V. This meter is a very cost-effective solution to most DC voltage measuring applications since it may be used to measure single-ended as well as differential signals and is easily scaled to any desired process engineering unit. An economical option is the dummy (non-functional) right handside zero which allows the meter to display readings from –19990 to +19990 without going to the expense of a 4.5 digit meter. The apparent resolution with the dummy zero option would be 10 counts. The standard meter is provided with TB-KIT screw terminal blocks and insulated quick- disconnects. For the greatest convenience and ease of use, order the optional pre-configured Push-On screw terminal connectors. (see Push-On Screw Terminals and Ordering Information)
