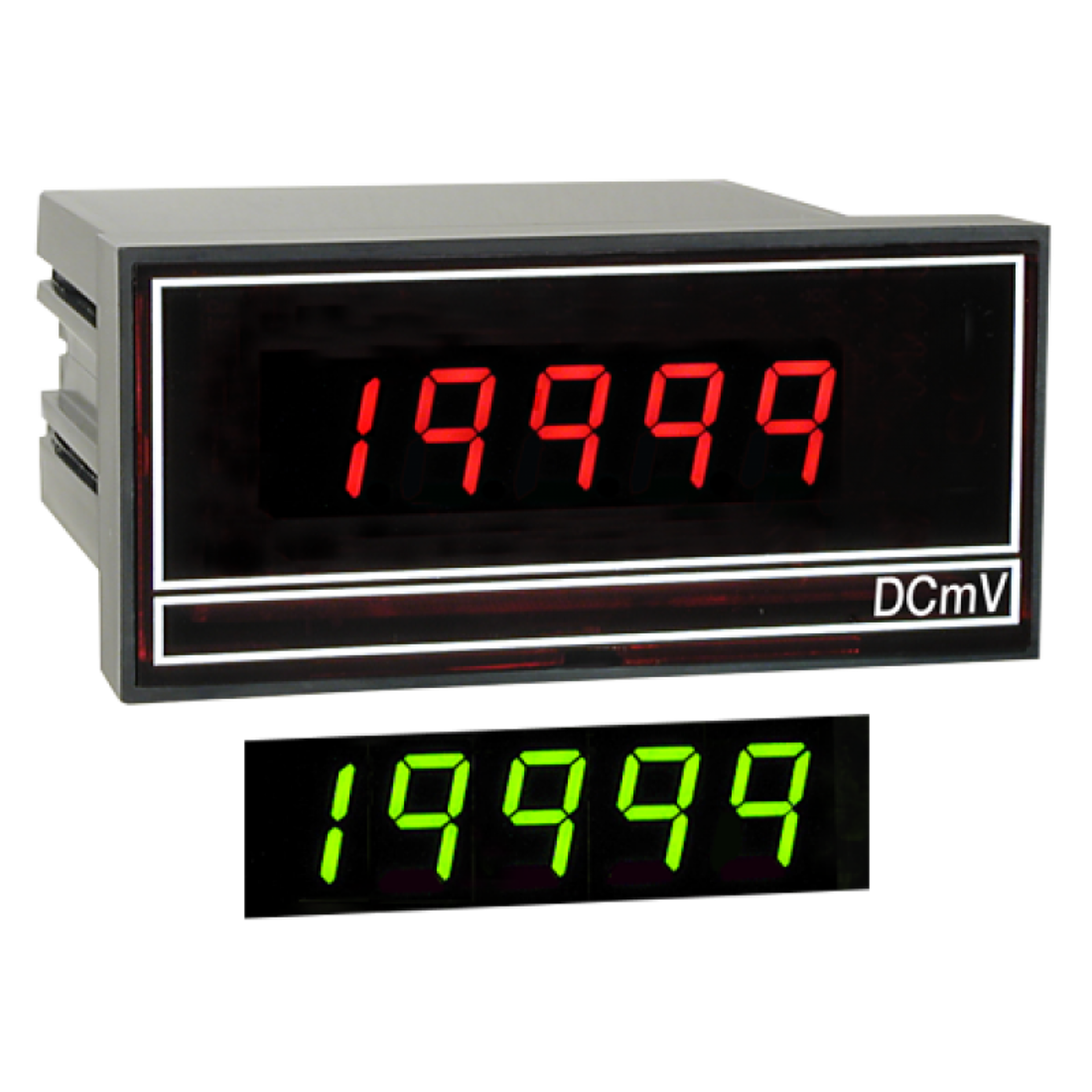

Model UM-45MV 50mV DC Full Scale Digital Meter
The UM-45MV is an economical, high resolution DC voltage measuring meter with three header selectable full scale ranges of 50mV, 100mV and 200mV. A five position Span Adjust header facilitates scaling in engineering units. The meter is particularly suited for measuring DC current using 50mV standard current shunts. The ability to accurately measure shunts with even lower voltage drops can produce substantial energy savings, for example 10mV can display 5000 Amps. Display Hold and Display Test functions are also provided. The standard meter has a high efficiency red LED display and user selectable AC power inputs of 100V AC to 120V AC or 200V AC to 240V AC are provided. An Optional 24V AC or an auto sensing isolated AC/DC 24V switching power supply can be ordered. (See ordering information)
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
