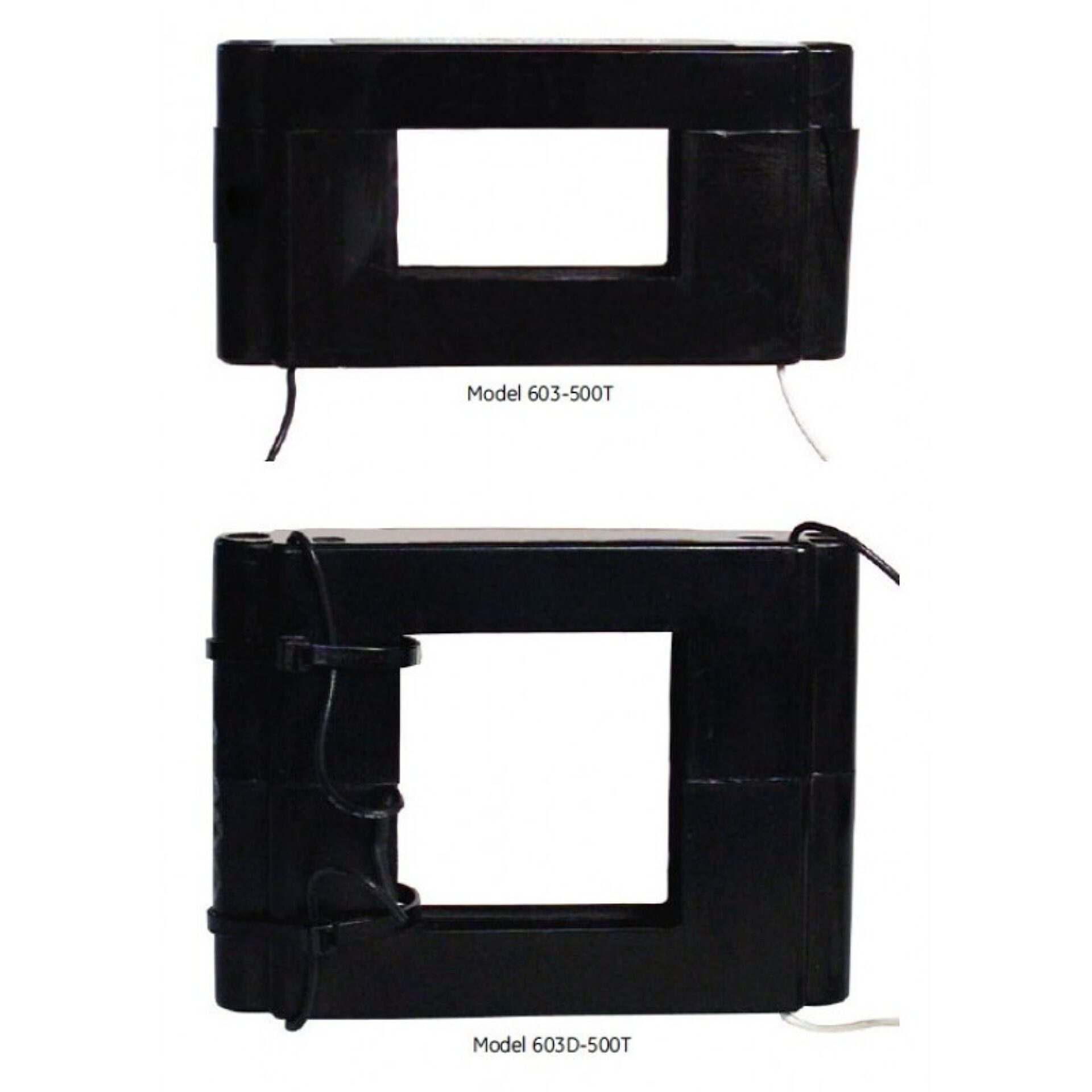

Models 603-500T & 603D-500T Split Core Current Transformer
Models 603-500T & 603D-500T Split Core Current Transformer
APPLICATION: For energy management systems and instrumentation equipment having a no return high input impedance, eg. 14K ohms minimum.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR: Model 603: 350A at 30oC. amb. 260A at 55oC. amb.
Flexible leads are UL 1015, 105oC , CSA approved, #22 AWG, 24" long unless otherwise specified.
Approximate Weight:
Model 603-500T. 0.63 lbs.
Model 603D-500T. 0.75 lbs.
Window Size 2.00" x 1.00", 2.00"x 2.00"
Overview
APPLICATION: For energy management systems and instrumentation equipment having a no return high input impedance, eg. 14K ohms minimum.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR: Model 603: 350A at 30oC. amb. 260A at 55oC. amb.
Flexible leads are UL 1015, 105oC , CSA approved, #22 AWG, 24" long unless otherwise specified.
Approximate Weight:
Model 603-500T. 0.63 lbs.
Model 603D-500T. 0.75 lbs.
Window Size 2.00" x 1.00", 2.00"x 2.00"
Request a Quote for Models 603-500T & 603D-500T Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Application
- Energy Management
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- Continuous Thermal Current Rating Factor (Model 603)
- 350 A at 30°C amb.; 260 A at 55°C amb.
- Window Size
- 2.00" x 1.00", 2.00" x 2.00"
- Input Impedance Requirement
- High input impedance, no-return, e.g. 14 kOhm minimum
- Insulation Class
- 0.6 kV
- Lead Wire
- UL 1015, 105°C, CSA approved, #22 AWG, 24" long unless otherwise specified
- Weight by Model
- Model 603-500T: 0.63 lbs; Model 603D-500T: 0.75 lbs
- Output — Kind
- V
- Output — Max
- 5
