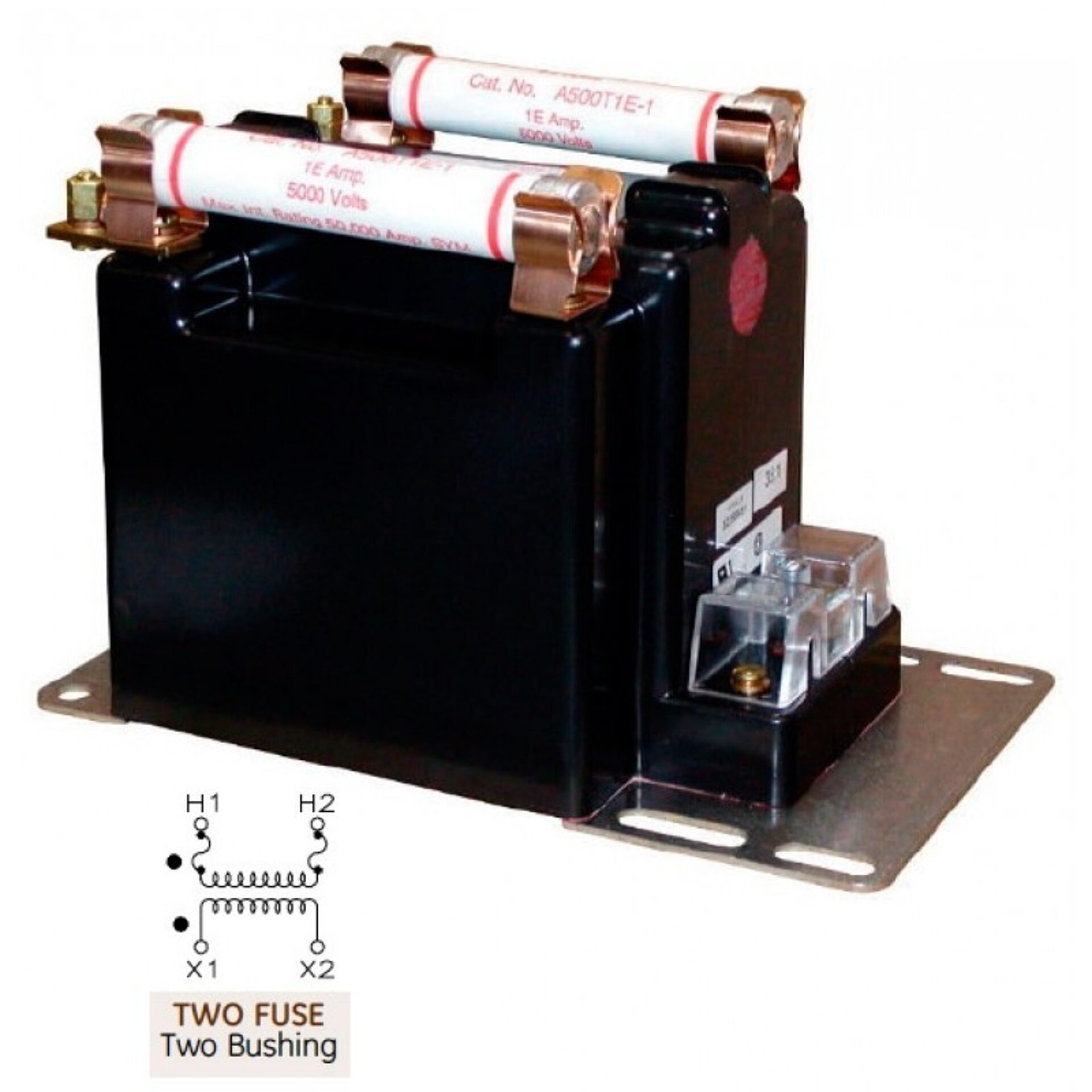

Models PTG3-1-60 & PTG3-2-60 Medium Voltage Indoor Voltage Transformer
Models PTG3-1-60 & PTG3-2-60 Medium Voltage Indoor Voltage Transformer
ACCURACY CLASS:
0.3 WXMY 1.2Z at 100% rated voltage with 120V based ANSI burden.
0.6 WX, 1.2 MY at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 5.6kv, BIL 60kV.
THERMAL RATING:
750 VA at 30oC amb.
500 VA at 55oC amb.
Approximate weight 34 lbs. unfused.
Overview
ACCURACY CLASS:
0.3 WXMY 1.2Z at 100% rated voltage with 120V based ANSI burden.
0.6 WX, 1.2 MY at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 5.6kv, BIL 60kV.
THERMAL RATING:
750 VA at 30oC amb.
500 VA at 55oC amb.
Approximate weight 34 lbs. unfused.
Request a Quote for Models PTG3-1-60 & PTG3-2-60 Medium Voltage Indoor Voltage Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 34 lbs
- Mounting
- Indoor
- Application
- Metering, Protection, Switchgear
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 5.6 kV
- Thermal Rating
- 750 VA at 30 C amb; 500 VA at 55 C amb
- Encapsulation
- Vacuum encapsulated polyurethane resin
- Revenue Metering Approval
- Industry Canada Approval No. T-215 Rev. 02
- Primary Terminals (Unfused)
- 1/4-20 brass screws with one flatwasher and lockwasher
- Primary Terminals (Fused)
- 1/4-20 brass screws with one flatwasher, lockwasher, and two nuts
- Secondary Terminals
- No. 10-32 brass screws with one flatwasher and lockwasher
- Recommended Spacing (Unit to Unit)
- 0.75 in minimum
- Recommended Spacing (HV to Ground in air)
- 3.00 in minimum
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 2400 | 120 | 20:1 | 2.0E, 5.5 kV, 45,000 A interrupting |
| 2400 | 120 | 20:1 | — |
| 2400 | 120 | 20:1 | — |
| 2400 | 120 | 20:1 | — |
| 4200 | 120 | 35:1 | 1.0E, 5.5 kV, 45,000 A interrupting |
| 4200 | 120 | 35:1 | — |
| 4200 | 120 | 35:1 | — |
| 4200 | 120 | 35:1 | — |
| 4800 | 120 | 40:1 | 1.0E, 5.5 kV, 45,000 A interrupting |
| 4800 | 120 | 40:1 | — |
| 4800 | 120 | 40:1 | — |
| 4800 | 120 | 40:1 | — |
| 2400 | 120 | 20:1 | — |
| 2400 | 120 | 20:1 | 2.0E, 5.5 kV, 45,000 A interrupting |
| 2400 | 120 | 20:1 | — |
| 2400 | 120 | 20:1 | — |
| 2400 | 120 | 20:1 | — |
| 3300 | 110 | 30:1 | — |
| 3300 | 110 | 30:1 | 2.0E, 5.5 kV, 45,000 A interrupting |
| 3300 | 110 | 30:1 | — |
| 3300 | 110 | 30:1 | — |
| 3300 | 110 | 30:1 | — |
| 4200 | 120 | 35:1 | — |
| 4200 | 120 | 35:1 | 1.0E, 5.5 kV, 45,000 A interrupting |
| 4200 | 120 | 35:1 | — |
| 4200 | 120 | 35:1 | — |
| 4200 | 120 | 35:1 | — |
| 4800 | 120 | 40:1 | — |
| 4800 | 120 | 40:1 | 1.0E, 5.5 kV, 45,000 A interrupting |
| 4800 | 120 | 40:1 | — |
| 4800 | 120 | 40:1 | — |
| 4800 | 120 | 40:1 | — |
