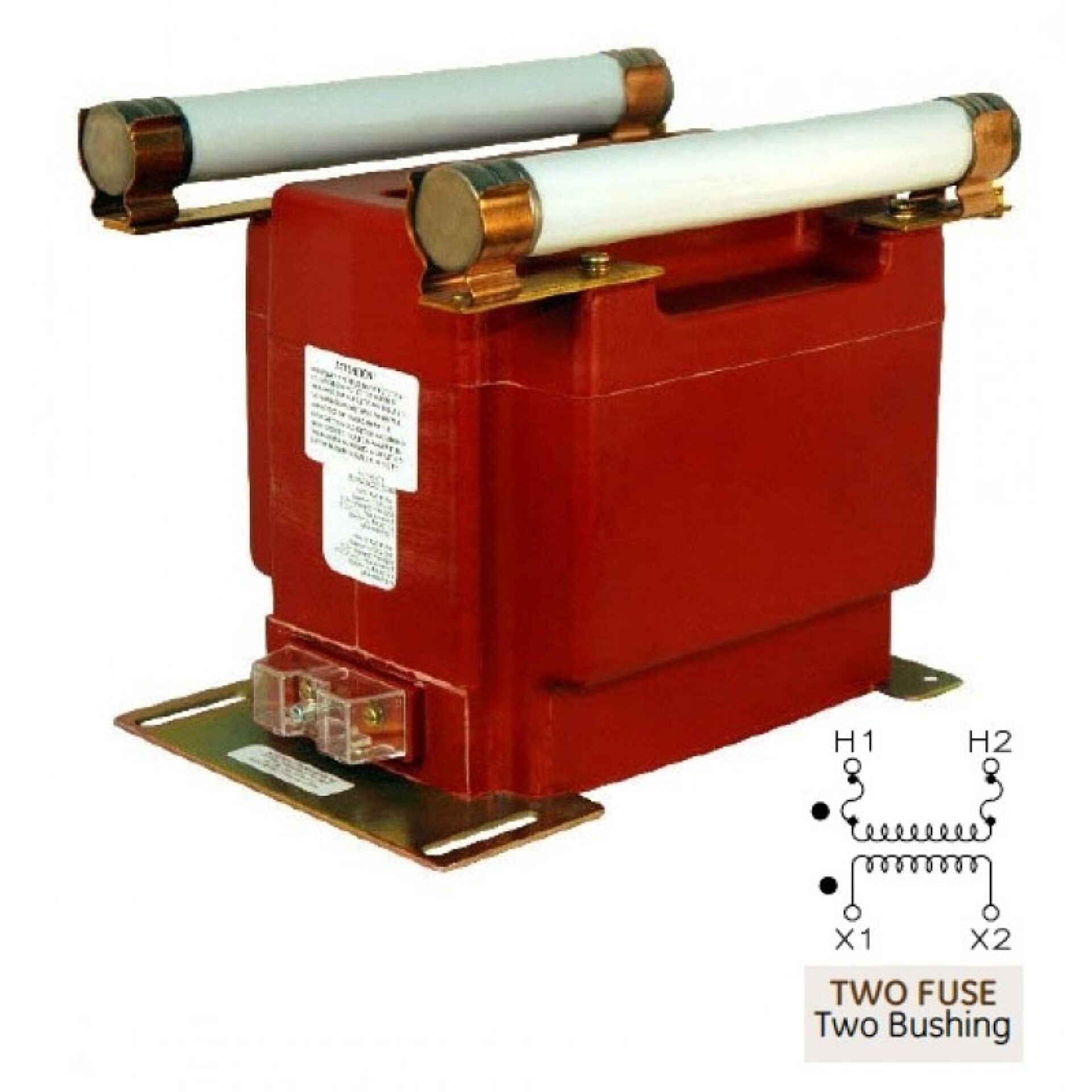

Models PTG5-2-110 Medium Voltage Indoor Voltage Transformer

Name: Spectrum Industries
Price range: $

ACCURACY CLASS: 0.3 WXMYZ 1.2 ZZ at 100% rated voltage with 120V based ANSI burden. 0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden. FREQUENCY: 60 Hz. MAXIMUM SYSTEM VOLTAGE: 15.5kV, BIL 110kV. THERMAL RATING: 1500 VA at 30oC amb. 1000 VA at 55oC amb. Approximate weight 85 lbs. unfused.

Primary Voltage

Fuses

If Custom, please specify requirements

Contact sales

Overview

ACCURACY CLASS: 0.3 WXMYZ 1.2 ZZ at 100% rated voltage with 120V based ANSI burden. 0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden. FREQUENCY: 60 Hz. MAXIMUM SYSTEM VOLTAGE: 15.5kV, BIL 110kV. THERMAL RATING: 1500 VA at 30oC amb. 1000 VA at 55oC amb. Approximate weight 85 lbs. unfused.
