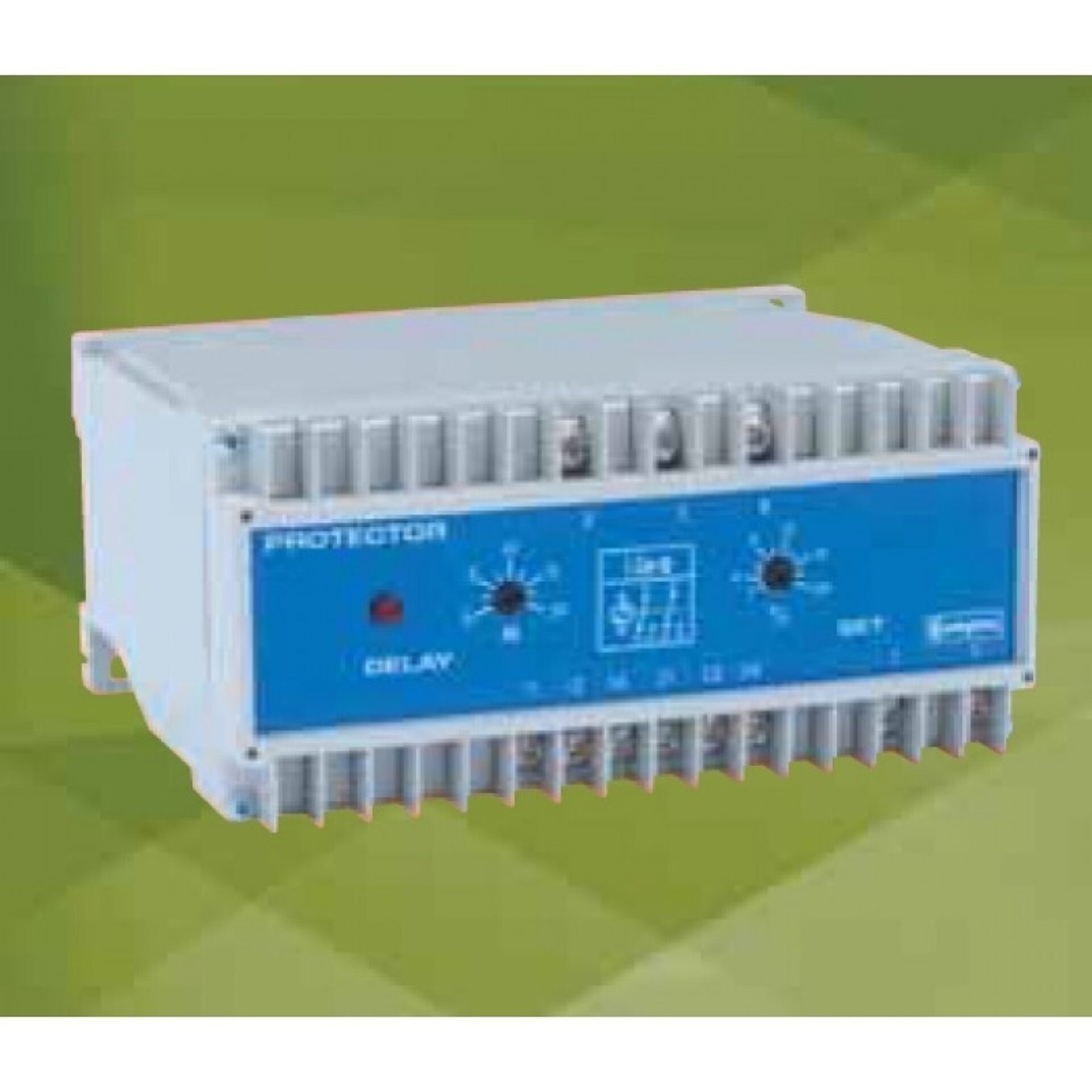

Reverse Power (current) DIN Relay
Reverse Power (current) DIN Relay - Protector Relays
The reverse power protector provides continuous surveillance for ac generators operating in parallel or for boosting mains supplies. On site adjustment of the trip point and time delay ensures accurate protection against ‘motoring’ in the event of engine failure and prevents tripping from surges during synchronising.
Overview
The reverse power protector provides continuous surveillance for ac generators operating in parallel or for boosting mains supplies. On site adjustment of the trip point and time delay ensures accurate protection against ‘motoring’ in the event of engine failure and prevents tripping from surges during synchronising.
Request a Quote for Reverse Power (current) DIN Relay
Product Specifications
- Applications
- Marine panels
- Nominal voltage
- 100V, 110V, 120V, 220V, 230V, 240V, 277V
- Burden
- Voltage: 3VA maximum
- Current
- 2VA maximum
- Power factor
- 0.5 inductive/unity/0.2
- Operating temperature
- 0°C to +60°C (0°C to +40°C for UL models)
- Storage temperature
- –20°C to +70°C
- Material
- Flame retardant polycarbonate/ABS
- Dimensions
- 150mm (5.9") wide x 70mm (2.8") high
- Weight
- 1.0Kg approx
