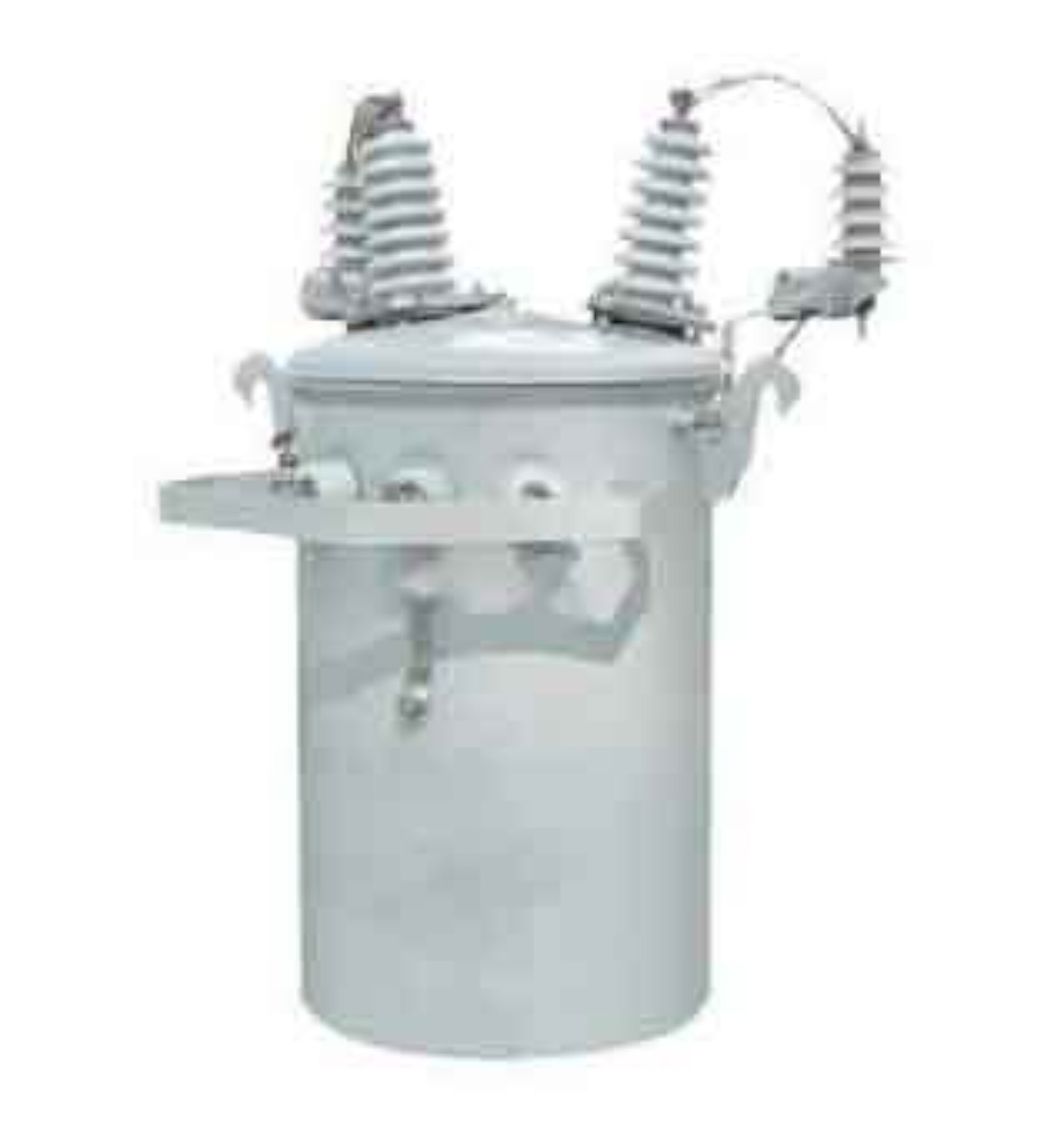

Single-Phase Pole Mounted Transformer
25kVA Distribution Unit - Single-phase pole-mounted transformers serve as distribution transformers in the distribution network of decentralized power supply.
Our single-phase pole mounted transformer provides reliable voltage transformation for decentralized and overhead power distribution networks. Installed close to the point of use, it helps shorten low-voltage distribution distances, reduce line losses, improve voltage performance, and increase overall power supply efficiency.
Overview
Single-phase pole-mounted distribution transformers are designed for overhead electrical distribution systems and decentralized power supply networks. Installed directly on utility poles, these distribution transformers step medium-voltage electricity down to the low-voltage levels required by residential, commercial, agricultural, and light industrial customers.
By locating the transformer close to the electrical load, utilities can shorten the low-voltage distribution distance, reduce conductor losses, improve voltage regulation, and increase overall power distribution efficiency. This makes pole-mounted transformers particularly suitable for rural electrification, suburban distribution networks, remote facilities, and areas with widely dispersed electrical loads.
The transformer features a high-efficiency wound-core design that helps reduce no-load losses and supports energy-efficient operation. Its compact size, pole-top mounting configuration, and relatively low installation cost make it practical for new distribution projects, network extensions, and replacement applications.

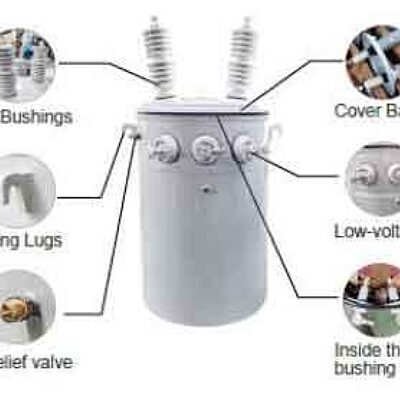

A fully sealed tank protects the transformer oil and internal components from moisture, contamination, and environmental exposure. The sealed construction also reduces routine maintenance requirements and supports reliable continuous operation. With strong short-term overload capability, durable insulation, and a robust enclosure, the transformer is designed to provide dependable voltage transformation and long service life in outdoor utility applications.
Request a Quote for Single-Phase Pole Mounted Transformer
Product Specifications
- Application
- Distribution
- Frequency
- 60 Hz
- Standards
- ANSI / IEEE / DOE 2016 / CSA / IEC 60076
- Insulation Type
- Oil-immersed, fully sealed
- Tapping Ranges
- ±2×2.5%
- Available Capacities
- 15, 25, 37.5, 50, 75, 100, 167, 250, 333, 500 kVA
- High Voltage Options
- 2400 / 4160 / 7200 / 7620 / 12000 / 12470 / 13200 / 13800 / 14400 / 19920 / 24940 / 34500 V
- Low Voltage Options
- 110 / 120 / 208 / 240 / 277 / 347 / 415 / 416 / 480 / 600 / 690 V
- DOE2016 Efficiency Range
- 98.82% – 99.49%
- Mounting
- Pole-type suspension
- Model Number Pattern
- VO-UT-1PLM-{kVA}-{HkV}-{LW}
Specification Table
| Capacity (kVA) | W (mm) | D (mm) | H (mm) | DOE2016 Efficiency (%) | No-load Loss (W) | On-load Loss (W) |
|---|---|---|---|---|---|---|
| 15 | 520 | 565 | 905 | 98.82 | — | — |
| 25 | 560 | 590 | 935 | 98.95 | — | — |
| 37.5 | — | — | — | 99.05 | — | — |
| 50 | 610 | 625 | 935 | 99.11 | 60 | 330 |
| 75 | 635 | 975 | 1035 | 99.19 | 80 | 370 |
| 100 | 754 | 840 | 1035 | 99.25 | 100 | 450 |
| 167 | 770 | 965 | 1135 | 99.33 | 120 | 620 |
| 250 | 795 | 890 | 1135 | 99.39 | 130 | 850 |
| 333 | — | — | — | 99.43 | 150 | 1150 |
| 500 | — | — | — | 99.49 | — | — |
