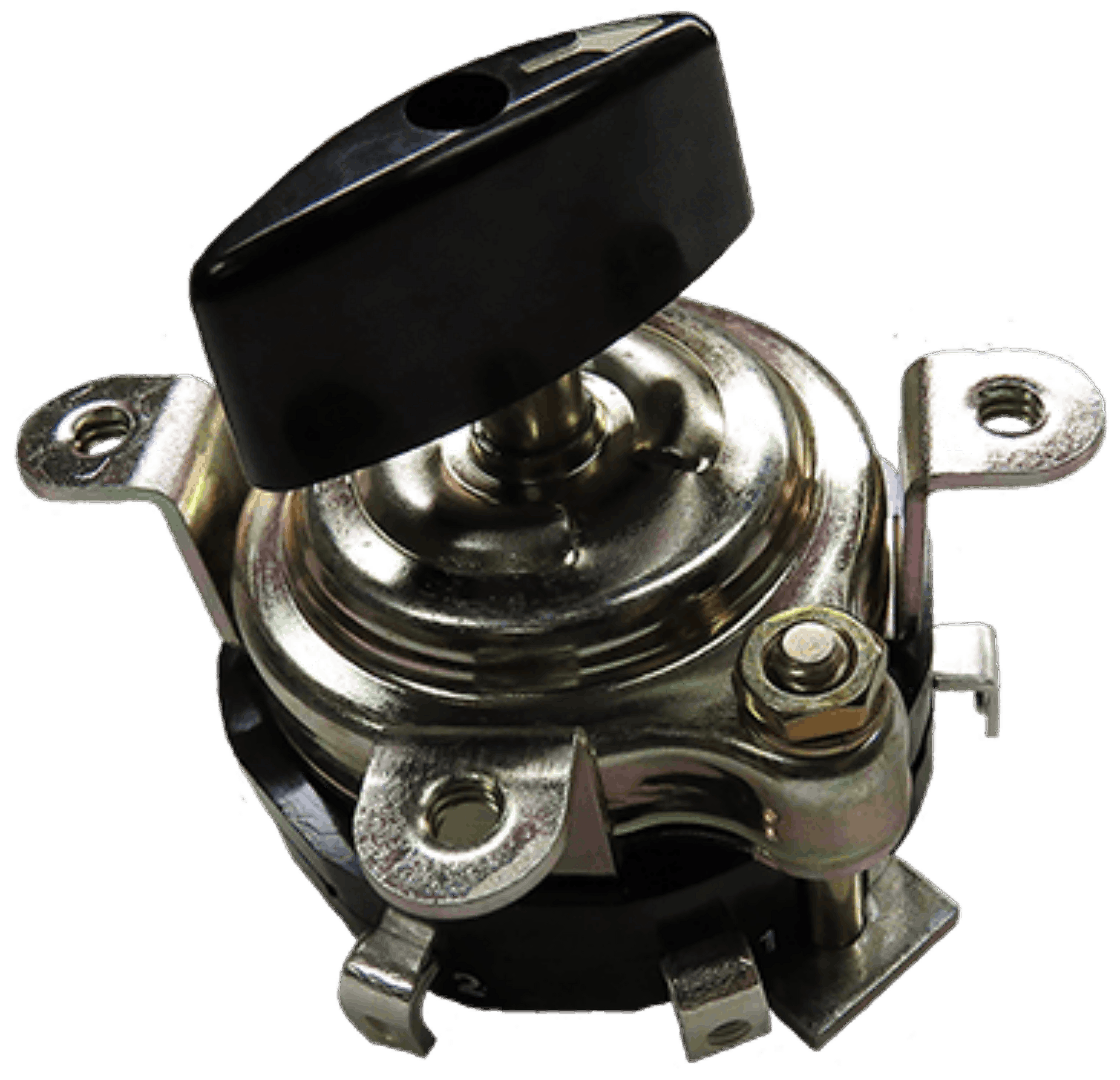

Snap-Action Rotary Switch - Railroad
Snap-action rotary switches designed specifically for railroad applications with rugged construction meeting the demands of rail environments.
Our snap-action rotary switches deliver reliable multi-position control for demanding railroad applications.
Overview
Rail environments demand switch designs that withstand vibration, temperature extremes, exposure to weather and cleaning agents, and long service intervals between maintenance — requirements that exceed those of typical industrial rotary switches. The 345 Series meets these demands with heavy-duty construction, materials selection targeting rail service life, and contact designs optimized for reliability rather than convenience.
The snap-action mechanism uses spring-loaded contacts that break and remake independently of operator rotation speed, providing consistent contact-transfer time and extended service life under repeated switching. Multi-pole and multi-position configurations support complex switching arrangements in a single compact switch envelope — typical of the mode selectors, source transfers, and control-position switches used in locomotive cabs, passenger-car electrical panels, and wayside signaling equipment. Contact materials and construction are chosen to withstand the vibration and shock inherent in rail operation.
Typical applications include locomotive control-stand mode switches, HVAC controllers on passenger equipment, headlight and marker-light selectors, cab-signaling equipment interface switches, wayside interlocking control panels, and specialized railroad-industry test and measurement equipment. Standard mounting patterns and terminal options simplify integration into existing rail-industry panel layouts and support both original-equipment and replacement applications. The 345 Series is engineered for the extended service life and reliability that rail operators expect from primary control components.
Request a Quote for Snap-Action Rotary Switch - Railroad
Product Specifications
- Rated operating voltage
- 230 VAC
- Carrying capacity
- 45 A
- Switching capacity
- Up to 30 A
- Contact resistance
- 10 milliohms max (4 milliohms average)
- Insulation resistance
- 1000 megohms min initial
- Poles
- Up to 3
- Positions
- Up to 5
- Indexing
- 45 degrees
- Throw angle
- 45 degrees
- Terminal type
- Screw
- Construction
- Closed
- Switching load rating
- 10 to 30 A resistive, 0.75 PF
- Circuit option A
- OFF + ON + ...
- Circuit option B
- ON + ON + ...
- Switch action options
- Non-shorting (blank) or shorting (S)
- Knob options
- A = pointer, C = round
- Included accessories
- Mounting hardware kit, terminal screw kit, knob kit
- Back panel depth (1 pole)
- 2.2 in
- Back panel depth (2 poles)
- 2.9 in
- Back panel depth (3 poles)
- 3.7 in
- Mounting hole pattern
- 2.28 in x 2.28 in, 1/4-20 UNC-2B (4 places)
- Dielectric Test — Voltage
- 2.5
