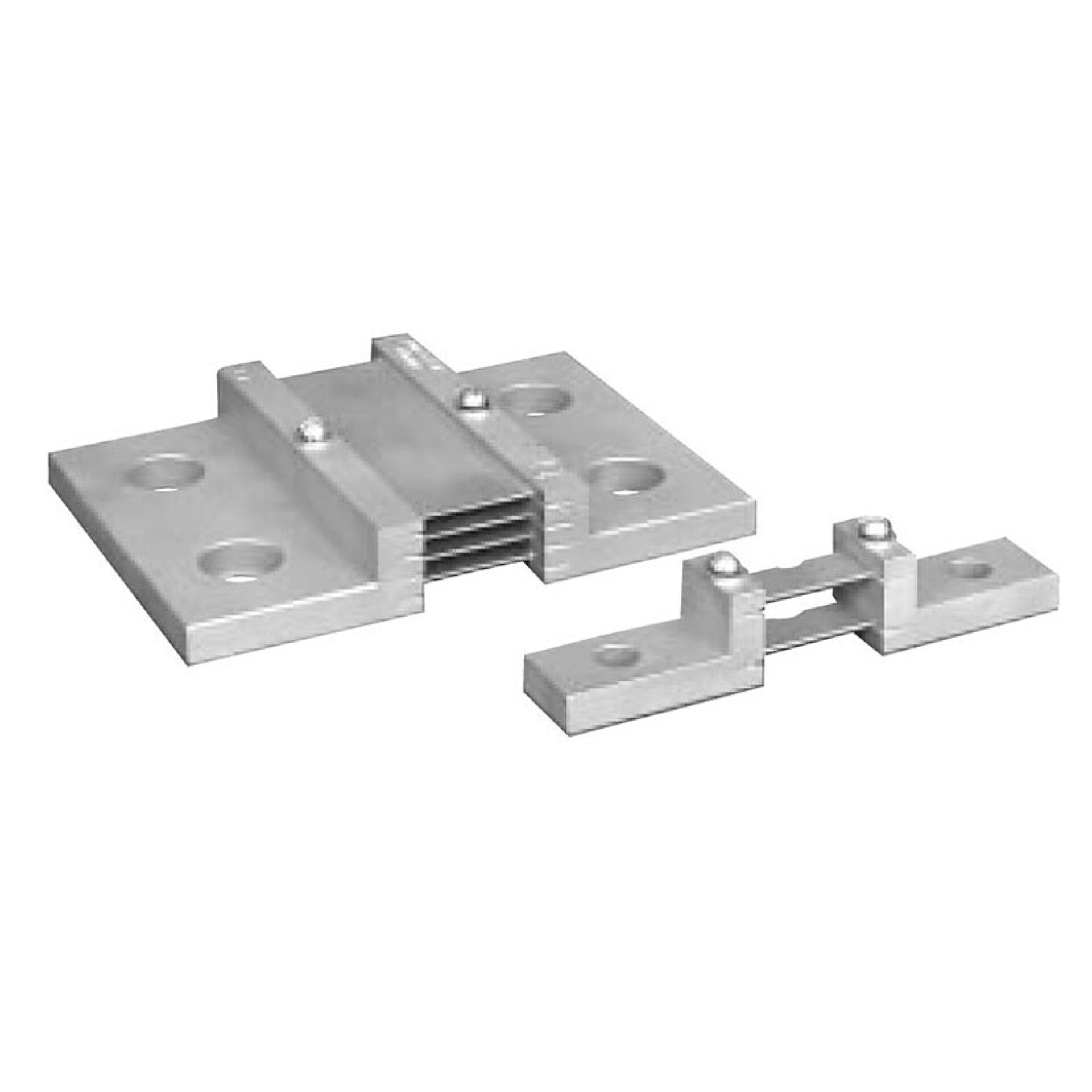

Type 860 Form B - Solid End Block Shunts

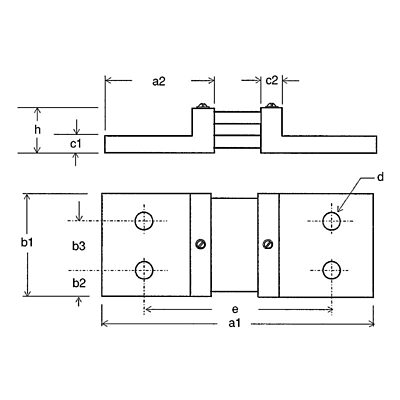

Shunt type 860 solid end block dimensions 1

Type 860 Form B - Solid End Block Shunts

Name: Spectrum Industries
Price range: $

Type 860 Form B - Solid End Block Shunts - Shunts

Accuracy class 0.5% Class 0.25% also available. Overload 120% rated current continuously 5 second ratings: 1A - 500A = 10 times rated current 501A - 2000A = 5 times rated current 2001A - 15000A = 2 times rated current Temperature coefficient: 0.002% per ºC overall Calibrated for 23ºC with the working range of -20ºC to +60ºC Maximum load: for maximum accuracy, load should not exceed 0.1% of the shunt current rating.

Contact sales

Overview

Accuracy class 0.5% Class 0.25% also available. Overload 120% rated current continuously 5 second ratings: 1A - 500A = 10 times rated current 501A - 2000A = 5 times rated current 2001A - 15000A = 2 times rated current Temperature coefficient: 0.002% per ºC overall Calibrated for 23ºC with the working range of -20ºC to +60ºC Maximum load: for maximum accuracy, load should not exceed 0.1% of the shunt current rating.
