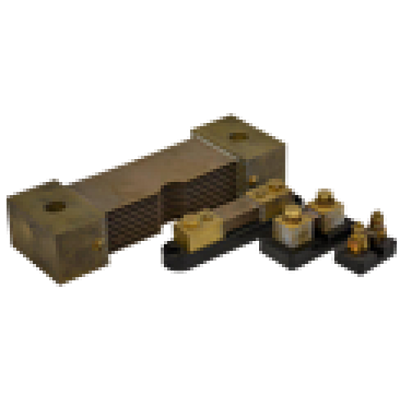

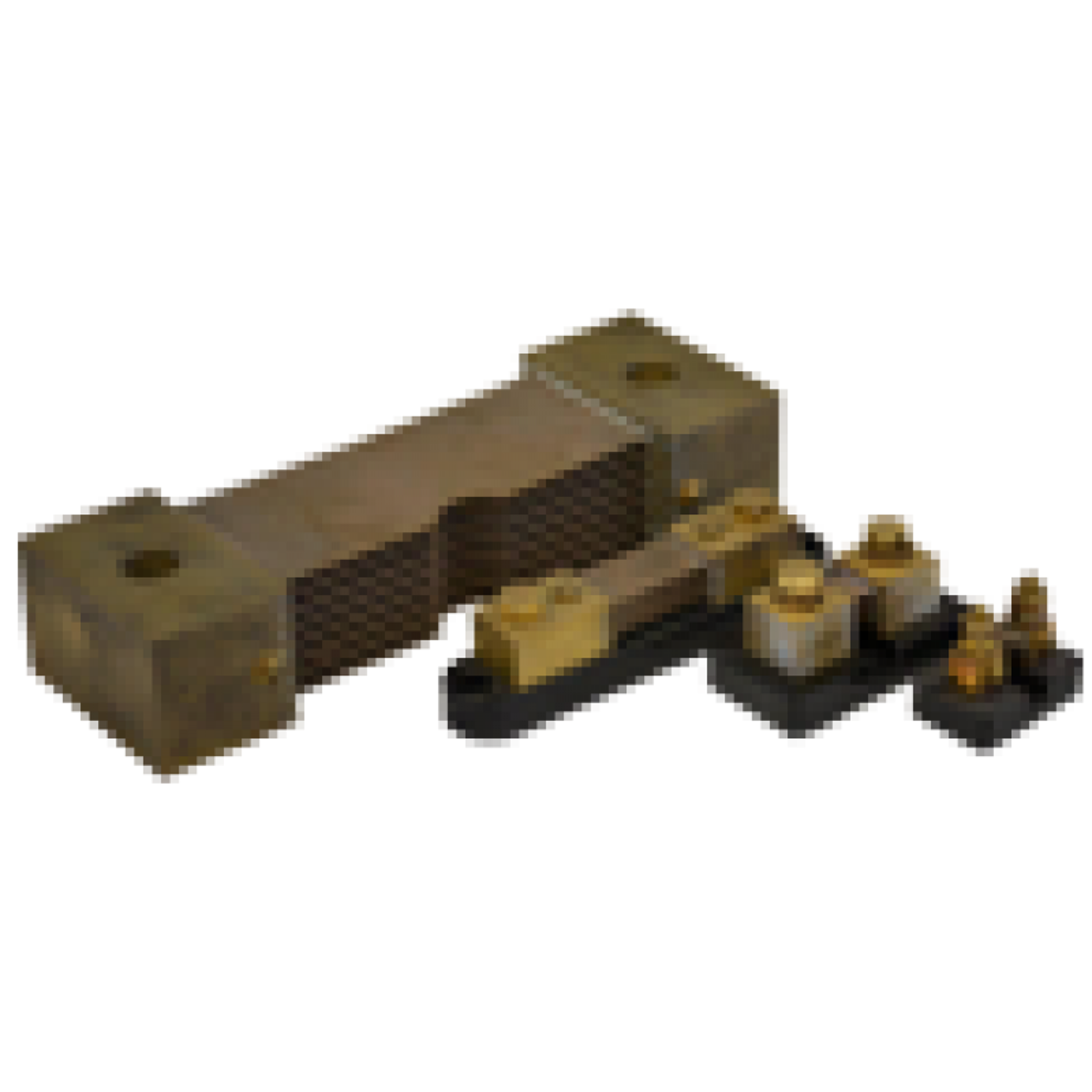

Type C - Switchboard Base Mounted Shunts
Introducing the Type C Switchboard Base Mounted Shunts from Spectrum, a reliable and precise solution designed to enhance the performance and safety of your electrical switchboards. Engineered with durability and accuracy in mind, these shunts are essential components for measuring electrical currents in various industrial and commercial applications. Their robust construction ensures long-lasting operation even in demanding environments, providing peace of mind and consistent performance over time.
Overview
Introducing the Type C Switchboard Base Mounted Shunts from Spectrum, a reliable and precise solution designed to enhance the performance and safety of your electrical switchboards. Engineered with durability and accuracy in mind, these shunts are essential components for measuring electrical currents in various industrial and commercial applications. Their robust construction ensures long-lasting operation even in demanding environments, providing peace of mind and consistent performance over time.
The Type C Switchboard Base Mounted Shunts are specifically designed for easy integration into existing switchboard systems. Their base-mounted configuration allows for straightforward installation, reducing downtime and simplifying maintenance processes. Crafted with high-quality materials, these shunts offer excellent electrical conductivity and minimal resistance, ensuring accurate current measurement and reliable readings. This precision is critical for monitoring system performance, preventing overloads, and maintaining overall electrical safety.
Additionally, these shunts are versatile and adaptable to a wide range of current ratings, making them suitable for various applications across industries such as manufacturing, energy distribution, and infrastructure. Spectrum’s commitment to quality and innovation is reflected in the thoughtful design of these base-mounted shunts, ensuring they meet stringent safety standards and deliver dependable performance. Whether upgrading existing systems or designing new installations, the Type C Switchboard Base Mounted Shunts are a smart choice for achieving efficient and safe electrical management.
Request a Quote for Type C - Switchboard Base Mounted Shunts
Product Specifications
- Mounting
- Switchboard
- Application
- Metering
- Output Options
- 50 mV or 100 mV
- Tolerances

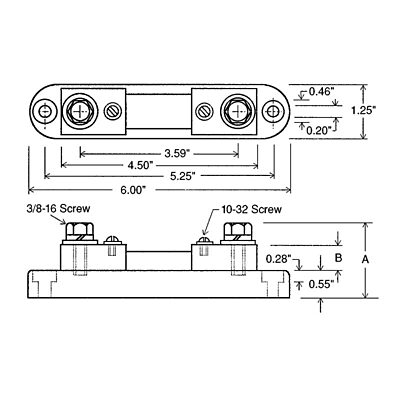

- ±0.015 in hole dia; ±0.030 in other
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- STD Accuracy
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 1 | 50 | 0.25 |
| 2 | 50 | 0.25 |
| 5 | 50 | 0.25 |
| 10 | 50 | 0.25 |
| 20 | 50 | 0.25 |
| 50 | 50 | 0.25 |
| 100 | 50 | 0.25 |
| 150 | 50 | 0.25 |
| 200 | 50 | 0.25 |
| 250 | 50 | 0.25 |
| 300 | 50 | 0.25 |
| 400 | 50 | 0.25 |
| 500 | 50 | 0.25 |
| 1 | 100 | 0.25 |
| 2 | 100 | 0.25 |
| 5 | 100 | 0.25 |
| 10 | 100 | 0.25 |
| 15 | 100 | 0.25 |
| 20 | 100 | 0.25 |
| 25 | 100 | 0.25 |
| 50 | 100 | 0.25 |
| 75 | 100 | 0.25 |
| 100 | 100 | 0.25 |
| 200 | 100 | 0.25 |
| 300 | 100 | 0.25 |
| 500 | 100 | 0.25 |
