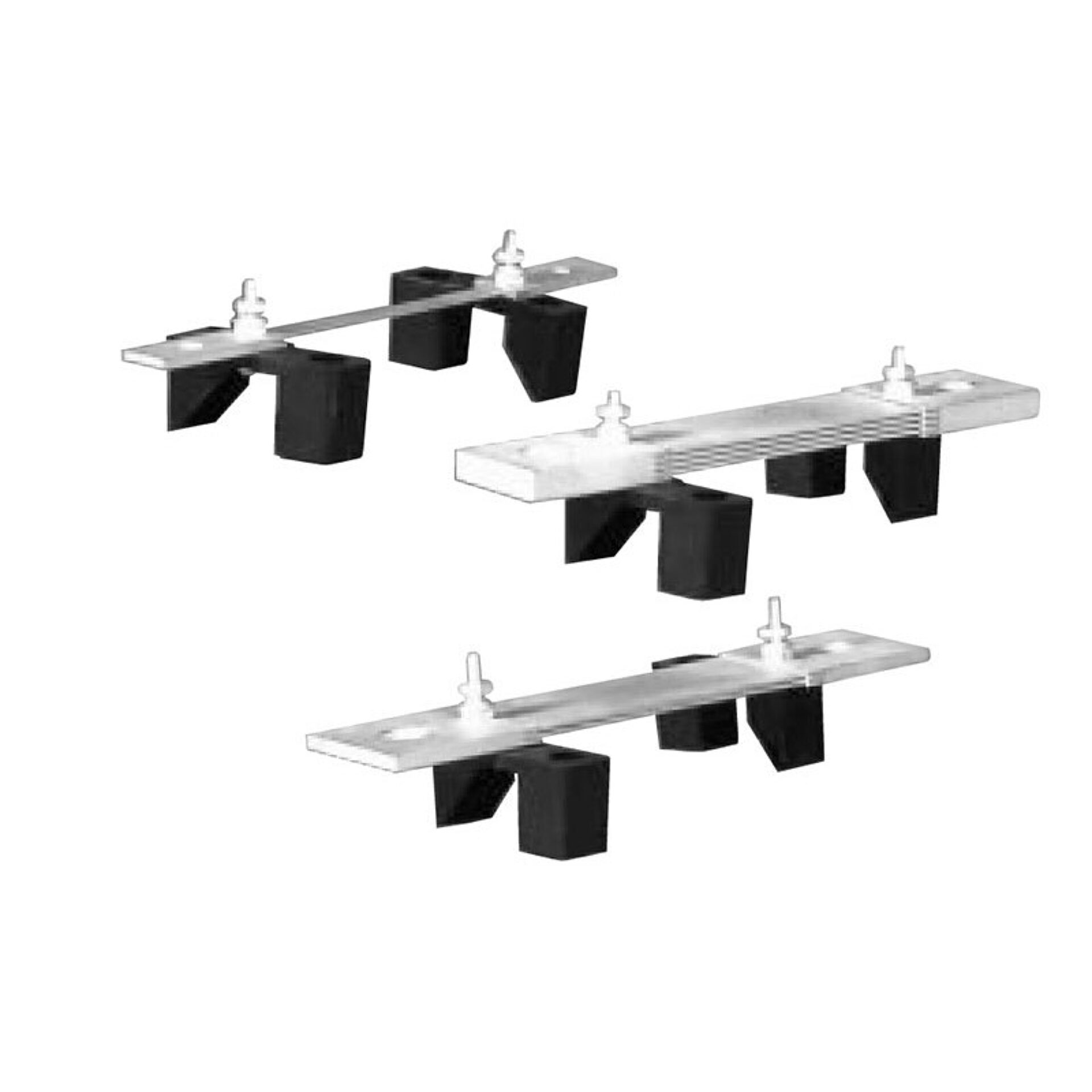

Type GB Base Mounted Shunts
The Type GB Base Mounted Shunts offered by Spectrum are essential components designed to provide precise current measurement and reliable performance in various electrical systems. Engineered with durability and accuracy in mind, these shunts serve as a vital link between high-current circuits and measuring instruments, enabling efficient monitoring and control of electrical flow. Their robust construction ensures they can withstand demanding industrial environments, making them a dependable choice for power distribution, automation, and control applications.
Overview
The Type GB Base Mounted Shunts offered by Spectrum are essential components designed to provide precise current measurement and reliable performance in various electrical systems. Engineered with durability and accuracy in mind, these shunts serve as a vital link between high-current circuits and measuring instruments, enabling efficient monitoring and control of electrical flow. Their robust construction ensures they can withstand demanding industrial environments, making them a dependable choice for power distribution, automation, and control applications.
Designed for easy installation, the Type GB shunts feature a compact, base-mounted configuration that simplifies integration into existing systems. They are engineered to handle high currents with minimal voltage drop, ensuring accurate readings without compromising system efficiency. The high-quality materials used in their construction contribute to their longevity and resistance to corrosion, even in harsh conditions. Whether used in new installations or as replacements for aging components, these shunts provide consistent performance and precise measurement capabilities.
Furthermore, the Type GB Base Mounted Shunts are versatile, suitable for a wide range of applications from small-scale industrial setups to large power distribution networks. Their design emphasizes safety, accuracy, and ease of maintenance, making them a reliable choice for engineers and technicians aiming to optimize electrical system performance. With Spectrum’s commitment to quality and innovation, these shunts are a trusted solution for ensuring accurate current measurement and enhancing overall system reliability.
Request a Quote for Type GB Base Mounted Shunts
Product Specifications
- Application
- Metering
- Hole diameter tolerance
- ± 0.015 in
- Mounting style
- Base mounted
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- Standard accuracy
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 60 | 50 | 0.25 |
| 75 | 50 | 0.25 |
| 80 | 50 | 0.25 |
| 100 | 50 | 0.25 |
| 150 | 50 | 0.25 |
| 200 | 50 | 0.25 |
| 250 | 50 | 0.25 |
| 300 | 50 | 0.25 |
| 400 | 50 | 0.25 |
| 500 | 50 | 0.25 |
| 60 | 100 | 0.25 |
| 75 | 100 | 0.25 |
| 80 | 100 | 0.25 |
| 100 | 100 | 0.25 |
| 150 | 100 | 0.25 |
| 200 | 100 | 0.25 |
| 250 | 100 | 0.25 |
| 300 | 100 | 0.25 |
| 400 | 100 | 0.25 |
| 500 | 100 | 0.25 |
| 10 | 50 | 0.25 |
| 15 | 50 | 0.25 |
| 20 | 50 | 0.25 |
| 30 | 50 | 0.25 |
| 40 | 50 | 0.25 |
| 50 | 50 | 0.25 |
| 600 | 50 | 0.25 |
| 800 | 50 | 0.25 |
| 1000 | 50 | 0.25 |
| 10 | 100 | 0.25 |
| 15 | 100 | 0.25 |
| 20 | 100 | 0.25 |
| 30 | 100 | 0.25 |
| 40 | 100 | 0.25 |
| 50 | 100 | 0.25 |
| 600 | 100 | 0.25 |
| 800 | 100 | 0.25 |
| 1000 | 100 | 0.25 |
