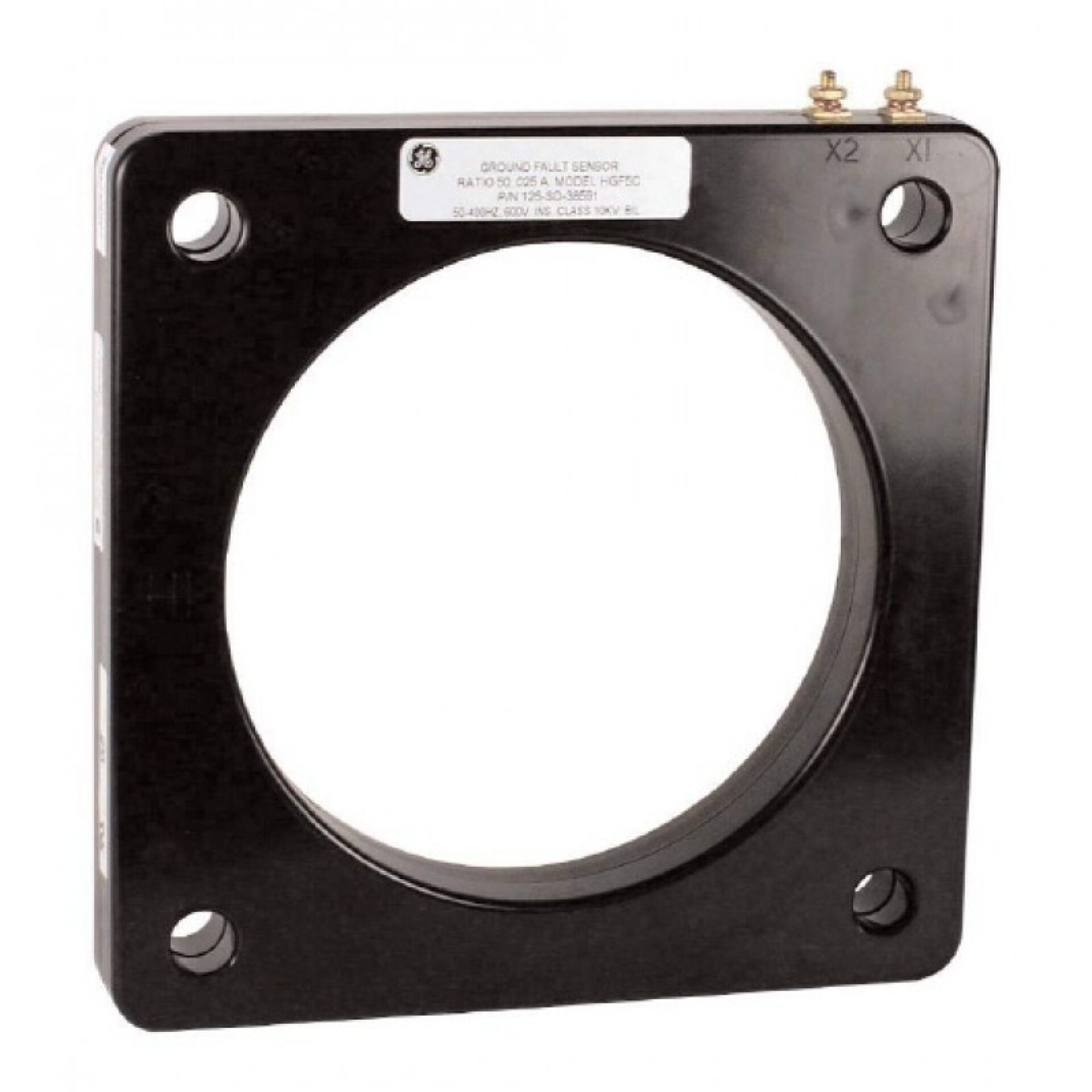

Type HGF5C Ground Fault Current Transformer
Type HGF5C Ground Fault Current Transformer - Transformers
Part Number 125-SD-38591
50:0.025 Amps (2000:1 Ratio)
Replaces Multilin P/N HGF5 Notes:
1. Ratio 50:0.025Amp
2. Insulation Class: 0.6kV, 10kV BIL
3. Frequency: 50-60Hz
4. DC Resistance approximately 30 ohms
5. Thermoplastic case
6. Terminals are #10-32 brass studs with one flat washer, lockwasher, and regular nut
7.Approximate weight: 3.0 lbs. (1.4 kg)
8. UL and cUL recognized
9. Dimensions shown as inches [mm]
10. Order mounting bracket kit 0221B00231 separately
11. Application: Ground fault sensors to work in conjunction with motor management relays. Specially designed to match the ground fault input of motor protection relays and should be used to ensure correct performance. This CT can sense low leakage currents over the relay setting range with minimum error.
Overview
Part Number 125-SD-38591
50:0.025 Amps (2000:1 Ratio)
Replaces Multilin P/N HGF5 Notes:
1. Ratio 50:0.025Amp
2. Insulation Class: 0.6kV, 10kV BIL
3. Frequency: 50-60Hz
4. DC Resistance approximately 30 ohms
5. Thermoplastic case
6. Terminals are #10-32 brass studs with one flat washer, lockwasher, and regular nut
7.Approximate weight: 3.0 lbs. (1.4 kg)
8. UL and cUL recognized
9. Dimensions shown as inches [mm]
10. Order mounting bracket kit 0221B00231 separately
11. Application: Ground fault sensors to work in conjunction with motor management relays. Specially designed to match the ground fault input of motor protection relays and should be used to ensure correct performance. This CT can sense low leakage currents over the relay setting range with minimum error.
Request a Quote for Type HGF5C Ground Fault Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 3 lbs
- Application
- Protection, Motor Control
- Standards
- UL, cUL
- Insulation Class
- 0.6 kV
- Case Construction
- Thermoplastic case on metal bracket
- Terminals
- #10-32 brass studs with one flat washer, lockwasher, and regular nut
- Mounting Bracket Kit
- 0221B00231 (order separately)
- Cross-Reference Part Number
- HGF5
Maximum 1000 characters
Specification Table
| Primary A | Secondary A | Ratio (display) | Secondary Resistance |
|---|---|---|---|
| 50 | 0.03 | 50:0.025 | 26 |
