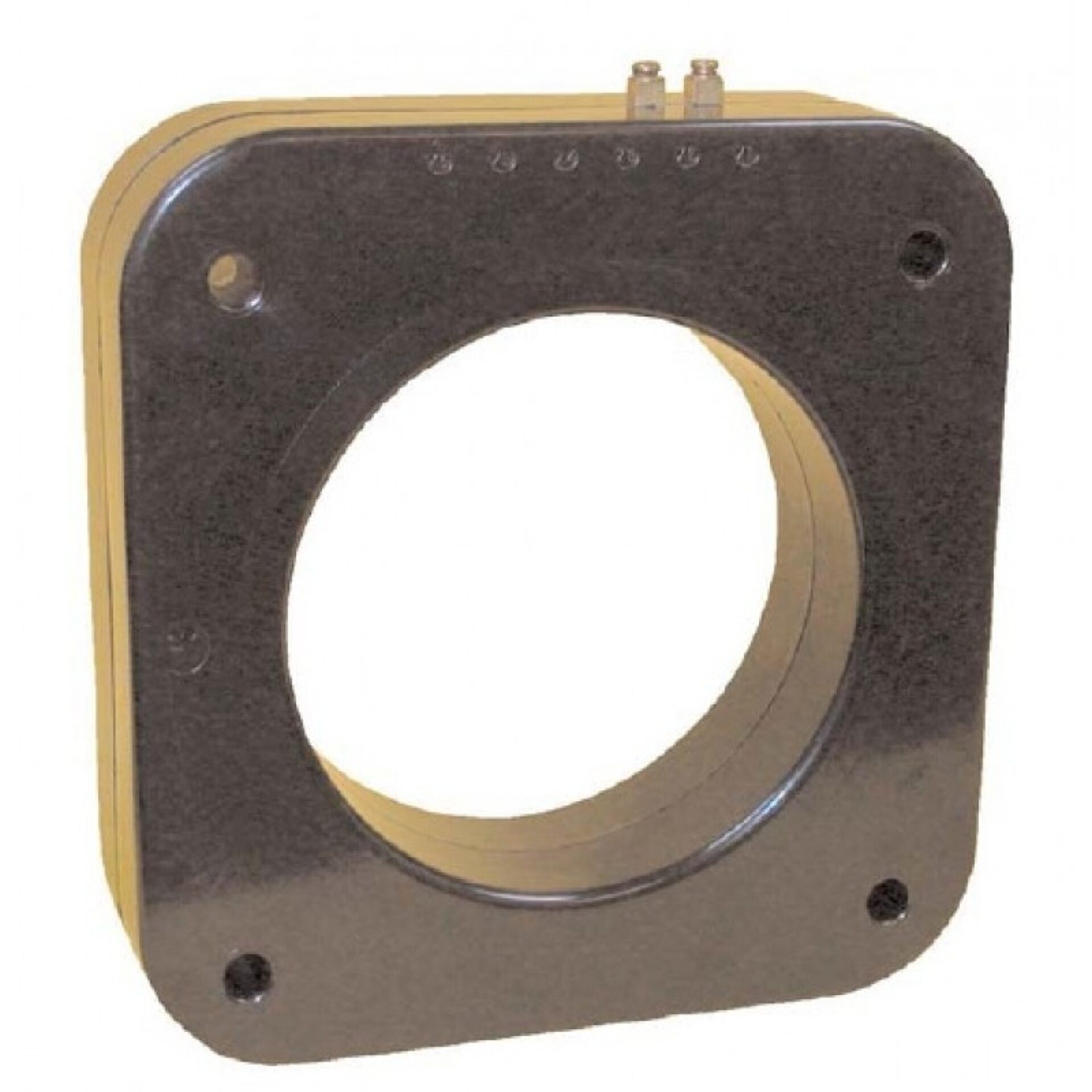

Type HGF8 Ground Fault Current Transformer
Type HGF8 Ground Fault Current Transformer - Transformers
Part Number 140-SD-13526
50:0.025 Amps (2000:1 Ratio) Notes:
1. Ratio 50:0.025Amp
2. Insulation Class: 0.6kV, 10kV BIL
3. Frequency: 50-60Hz
4. DC resistance approximately 56 ohms
5. Thermoplastic case
6. Terminals are #8-32 brass studs with one flat washer, lockwasher, and regular nut
7.Approximate weight: 22.0 lbs (10kg)
8. UL and cUL recognized
9. Dimensions shown as inches [mm]
10. Accuracy + 1.0% at 1.0 VA
11. Order mounting bracket kit 0221B00259 separately
12. Application: Ground fault sensors to work in conjunction with motor management relays. Specially designed to match the ground fault input of motor protection relays and should be used to ensure correct performance. This CT can sense low leakage currents over the relay setting range with minimum error.
Overview
Part Number 140-SD-13526
50:0.025 Amps (2000:1 Ratio) Notes:
1. Ratio 50:0.025Amp
2. Insulation Class: 0.6kV, 10kV BIL
3. Frequency: 50-60Hz
4. DC resistance approximately 56 ohms
5. Thermoplastic case
6. Terminals are #8-32 brass studs with one flat washer, lockwasher, and regular nut
7.Approximate weight: 22.0 lbs (10kg)
8. UL and cUL recognized
9. Dimensions shown as inches [mm]
10. Accuracy + 1.0% at 1.0 VA
11. Order mounting bracket kit 0221B00259 separately
12. Application: Ground fault sensors to work in conjunction with motor management relays. Specially designed to match the ground fault input of motor protection relays and should be used to ensure correct performance. This CT can sense low leakage currents over the relay setting range with minimum error.
Request a Quote for Type HGF8 Ground Fault Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 22 lbs
- Application
- Protection, Motor Control
- Standards
- UL, cUL
- Insulation Class
- 0.6 kV
- Case Material
- Thermoplastic
- Terminals
- #8-32 brass studs with one flat washer, lockwasher, and regular nut
- Mounting Bracket Kit
- 0221B00259 (ordered separately)
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- at 1.0 VA burden
