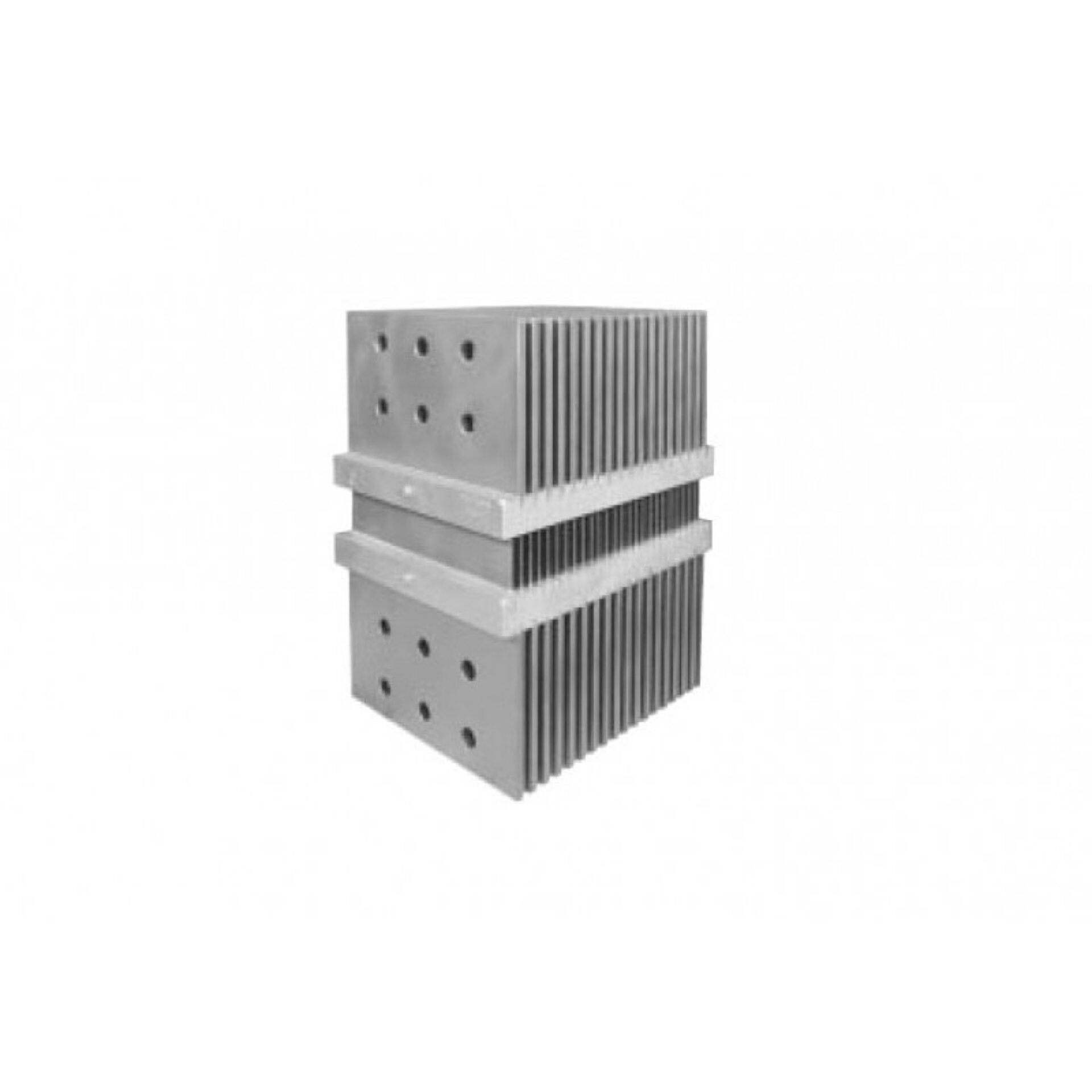

Type K - Multi-Fin Design Bus - Bar Shunts
Introducing the Type K Multi-Fin Design Bus Bar Shunts from Spectrum, a cutting-edge solution engineered for precision and reliability in electrical measurement. Designed with advanced multi-fin technology, these shunts provide highly accurate current sensing essential for a wide range of industrial and commercial applications. Whether you're managing power distribution systems, monitoring electrical loads, or integrating complex automation setups, the Type K shunts deliver consistent performance and ease of integration.
Overview
Introducing the Type K Multi-Fin Design Bus Bar Shunts from Spectrum, a cutting-edge solution engineered for precision and reliability in electrical measurement. Designed with advanced multi-fin technology, these shunts provide highly accurate current sensing essential for a wide range of industrial and commercial applications. Whether you're managing power distribution systems, monitoring electrical loads, or integrating complex automation setups, the Type K shunts deliver consistent performance and ease of integration.
Built with durability and stability in mind, these bus bar shunts feature a robust construction that withstands harsh environments and high current loads. Their innovative multi-fin design enhances surface contact and minimizes resistance, ensuring precise readings even under demanding conditions. The compact form factor allows for seamless installation in tight spaces, making them ideal for modern electrical systems that require both efficiency and scalability.
Spectrum's Type K Multi-Fin Design Bus Bar Shunts are engineered to meet the highest standards of quality and safety. They are compatible with a variety of measurement instruments and can be customized to fit specific system requirements. Whether you're upgrading existing infrastructure or designing new electrical layouts, these shunts offer a reliable, accurate, and efficient solution to your current sensing needs. Trust in Spectrum's expertise to deliver products that enhance performance and ensure the safety of your electrical operations.
Request a Quote for Type K - Multi-Fin Design Bus - Bar Shunts
Product Specifications
- Application
- Metering
- Amperage Range
- 600 through 10,000 Amperes
- Dimensional Tolerances
- ±0.015 in for hole diameters; ±0.030 in otherwise
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- STD Accuracy
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 1000 | 50 | 0.25 |
| 1200 | 50 | 0.25 |
| 1500 | 50 | 0.25 |
| 2000 | 50 | 0.25 |
| 2500 | 50 | 0.25 |
| 3000 | 50 | 0.25 |
| 4000 | 50 | 0.25 |
| 5000 | 50 | 0.25 |
| 6000 | 50 | 0.25 |
| 7500 | 50 | 0.25 |
| 8000 | 50 | 0.25 |
| 10000 | 50 | 0.25 |
| 600 | 100 | 0.25 |
| 750 | 100 | 0.25 |
| 800 | 100 | 0.25 |
| 1000 | 100 | 0.25 |
| 1200 | 100 | 0.25 |
| 1500 | 100 | 0.25 |
| 2000 | 100 | 0.25 |
| 2500 | 100 | 0.25 |
| 3000 | 100 | 0.25 |
| 4000 | 100 | 0.25 |
| 5000 | 100 | 0.25 |
| 6000 | 100 | 0.25 |
