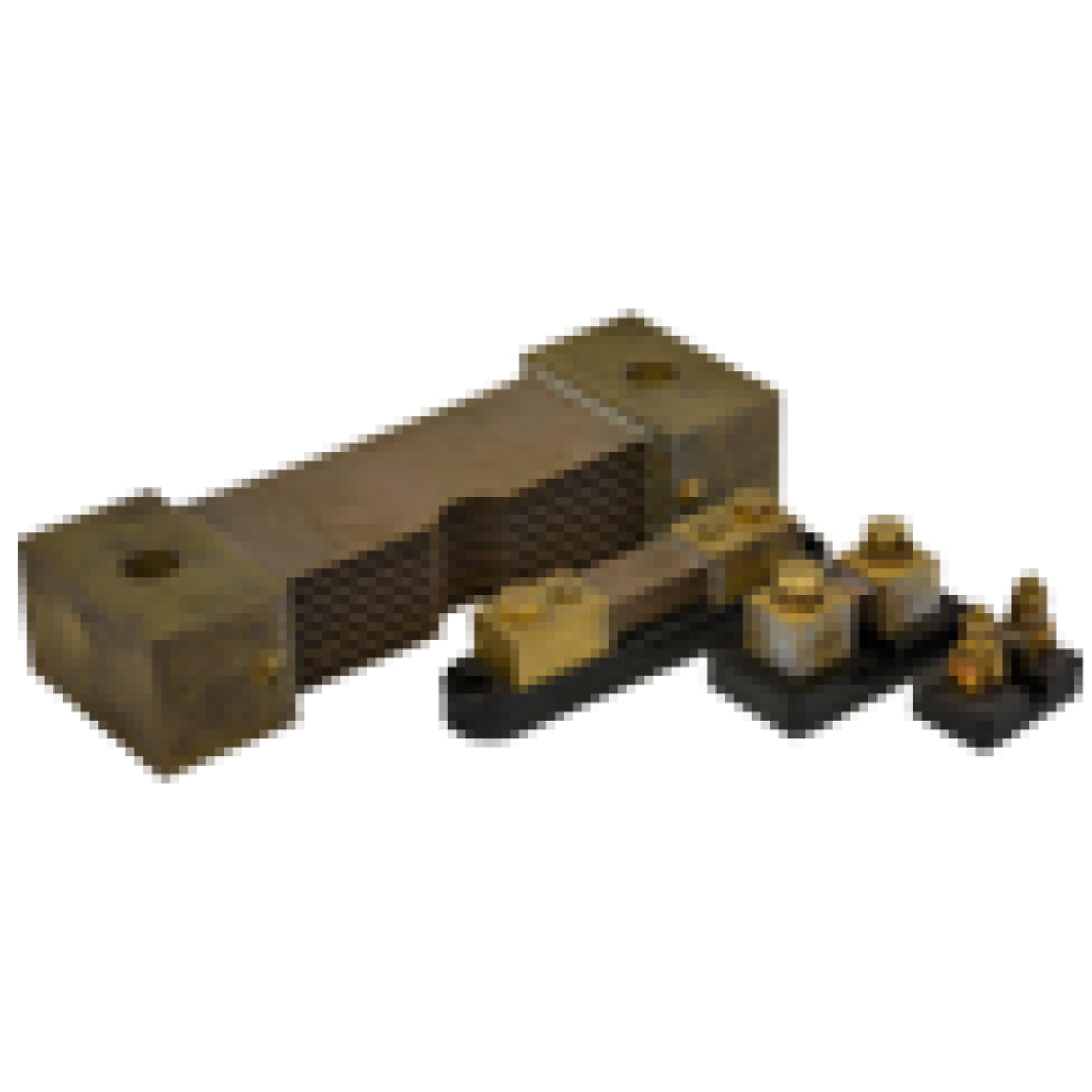

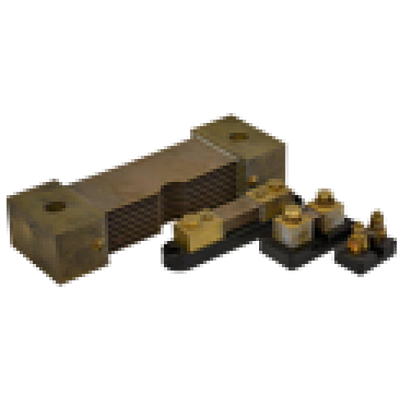

Type LAB - Laboratory Portable Base Mounted Shunts
Introducing the Type Lab Laboratory Portable Base Mounted Shunts, a reliable and versatile solution designed to meet the demanding needs of modern electrical testing and measurement environments. Engineered with precision and durability in mind, these shunts provide accurate current measurement capabilities essential for laboratory, industrial, and field applications. Their portable design ensures ease of use across various locations, making them an ideal choice for technicians and engineers who require dependable performance on the go.
Overview
Introducing the Type Lab Laboratory Portable Base Mounted Shunts, a reliable and versatile solution designed to meet the demanding needs of modern electrical testing and measurement environments. Engineered with precision and durability in mind, these shunts provide accurate current measurement capabilities essential for laboratory, industrial, and field applications. Their portable design ensures ease of use across various locations, making them an ideal choice for technicians and engineers who require dependable performance on the go.
Constructed from high-quality materials, the Type Lab shunts feature a robust base-mounted configuration that ensures stability during operation, reducing the risk of measurement errors caused by movement or vibrations. The modular design allows for straightforward installation and maintenance, enabling users to quickly set up and adapt the system to different testing scenarios. Whether used for calibrations, testing electrical circuits, or monitoring system performance, these shunts deliver consistent and precise readings, ensuring confidence in your measurements.
Furthermore, the Type Lab shunts are compatible with a wide range of testing equipment, offering flexibility and integration with existing setups. Their compact size combined with their sturdy construction makes them suitable for both laboratory environments and fieldwork, where space and reliability are critical. Overall, these portable base-mounted shunts are an essential tool for professionals seeking accurate, durable, and easy-to-use current measurement solutions in their electrical testing arsenal.
Request a Quote for Type LAB - Laboratory Portable Base Mounted Shunts
Product Specifications
- Application
- Metering
- Style
- Laboratory portable, base mounted
- Current Range
- 10 through 1,000 Amperes
- Hole Diameter Tolerance
- ± 0.015 in
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- STD Accuracy
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 10 | 50 | 0.25 |
| 15 | 50 | 0.25 |
| 25 | 50 | 0.25 |
| 50 | 50 | 0.25 |
| 100 | 50 | 0.25 |
| 150 | 50 | 0.25 |
| 200 | 50 | 0.25 |
| 250 | 50 | 0.25 |
| 300 | 50 | 0.25 |
| 400 | 50 | 0.25 |
| 500 | 50 | 0.25 |
| 600 | 50 | 0.25 |
| 750 | 50 | 0.25 |
| 1000 | 50 | 0.25 |
| 10 | 100 | 0.25 |
| 15 | 100 | 0.25 |
| 25 | 100 | 0.25 |
| 50 | 100 | 0.25 |
| 100 | 100 | 0.25 |
| 150 | 100 | 0.25 |
| 200 | 100 | 0.25 |
| 250 | 100 | 0.25 |
| 300 | 100 | 0.25 |
| 400 | 100 | 0.25 |
| 500 | 100 | 0.25 |
| 600 | 100 | 0.25 |
| 750 | 100 | 0.25 |
| 1000 | 100 | 0.25 |
