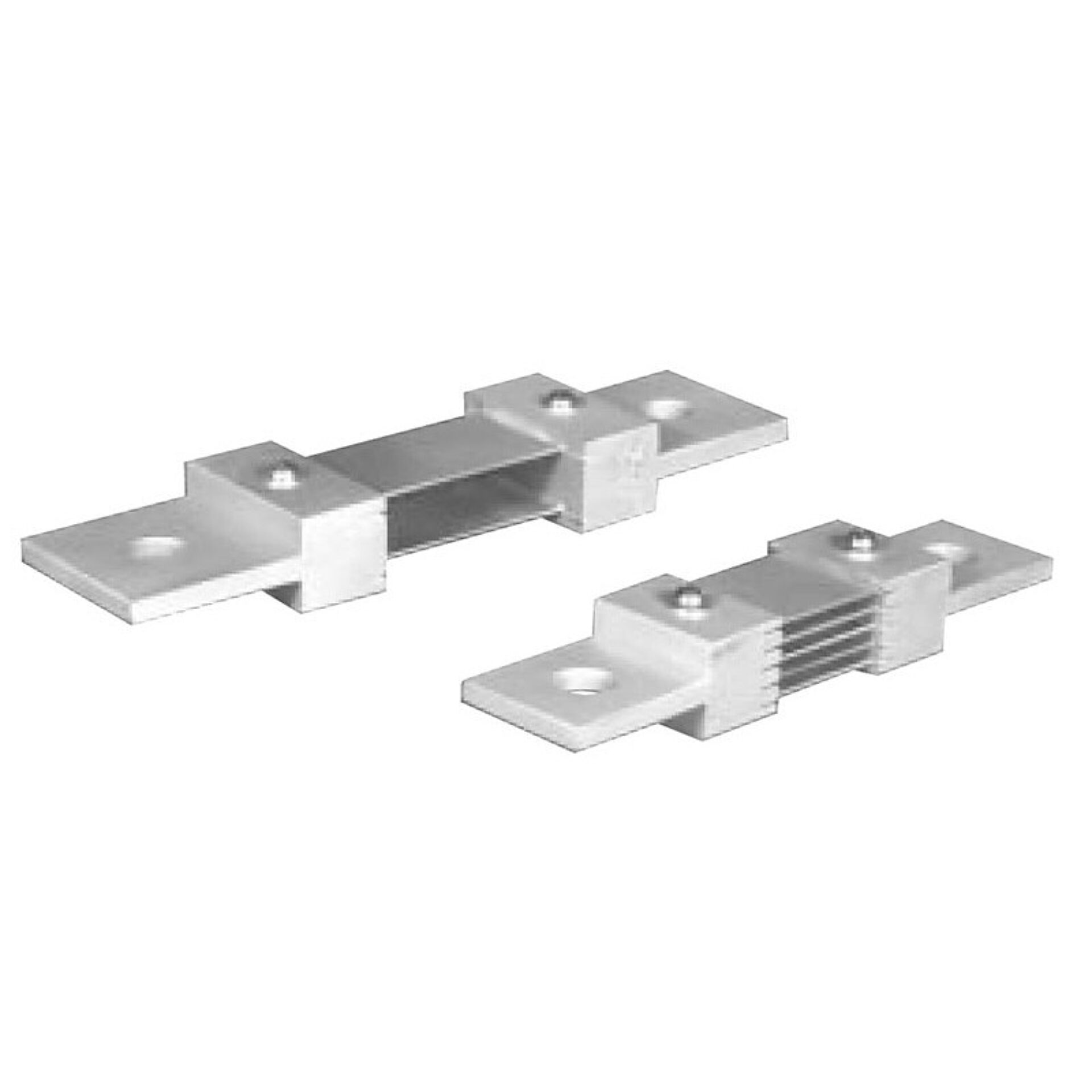

Type M - Single Fin Design Bus - Bar Shunts
Introducing the Type M Single Fin Design Bus Bar Shunts, a reliable and efficient solution for precise current measurement in electrical systems. Engineered with durability and accuracy in mind, these shunts are ideal for a wide range of applications, including industrial, commercial, and renewable energy sectors. Their robust construction ensures longevity even in demanding environments, providing consistent performance over time.
Overview
Introducing the Type M Single Fin Design Bus Bar Shunts, a reliable and efficient solution for precise current measurement in electrical systems. Engineered with durability and accuracy in mind, these shunts are ideal for a wide range of applications, including industrial, commercial, and renewable energy sectors. Their robust construction ensures longevity even in demanding environments, providing consistent performance over time.
The innovative single fin design enhances thermal management and reduces electrical resistance, resulting in improved measurement accuracy and reduced heat generation. This design also simplifies installation and maintenance, making it easier for technicians to incorporate into existing systems. Crafted from high-quality materials, the Type M shunts deliver excellent conductivity and resistance to corrosion, ensuring dependable operation in various conditions.
Designed to handle high current loads, these bus bar shunts are suitable for large-scale power distribution and monitoring tasks. Their compact form factor allows for seamless integration into complex electrical setups without occupying excessive space. Whether used in new installations or as replacements for aging components, the Type M Single Fin Design Bus Bar Shunts provide a cost-effective and dependable solution for current measurement needs.
Overall, these shunts combine innovative design, durability, and precision to help maintain the safety, efficiency, and reliability of your electrical systems.
Request a Quote for Type M - Single Fin Design Bus - Bar Shunts
Product Specifications
- Application
- Metering
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- typical
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 300 | 50 | 0.25 |
| 400 | 50 | 0.25 |
| 500 | 50 | 0.25 |
| 600 | 50 | 0.25 |
| 750 | 50 | 0.25 |
| 800 | 50 | 0.25 |
| 1000 | 50 | 0.25 |
| 120 | 100 | 0.25 |
| 130 | 100 | 0.25 |
| 150 | 100 | 0.25 |
| 200 | 100 | 0.25 |
| 250 | 100 | 0.25 |
| 300 | 100 | 0.25 |
| 400 | 100 | 0.25 |
| 500 | 100 | 0.25 |
