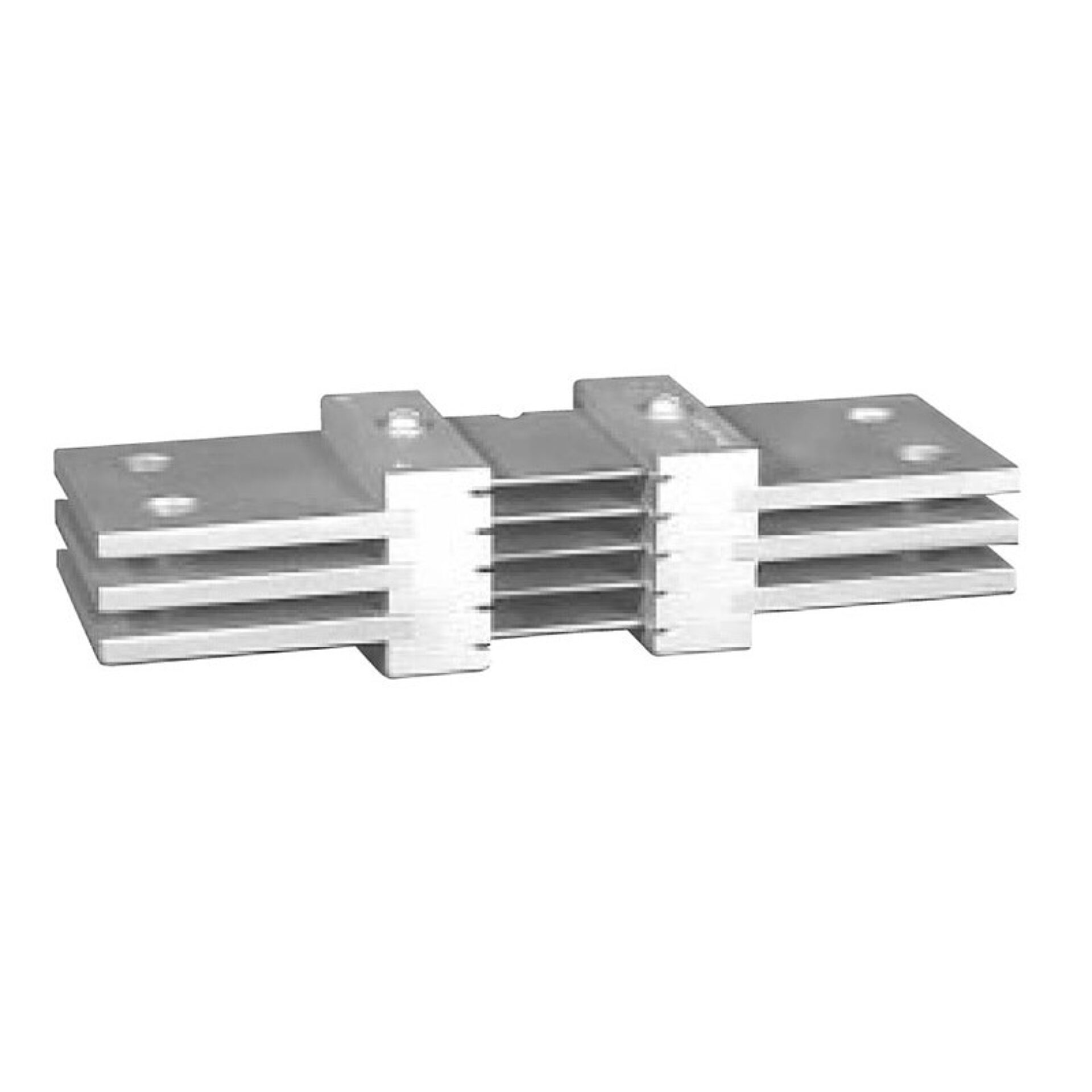

Type R - Multi-Fin Design Bus - Bar Shunts
Introducing the Type R Multi-Fin Design Bus Bar Shunts from Spectrum, a cutting-edge solution engineered to deliver precise and reliable current measurement for high-performance electrical systems. Built with innovation and durability in mind, these shunts feature a sophisticated multi-fin design that ensures optimal contact and minimal resistance, providing accurate readings even under demanding conditions. Whether used in industrial, commercial, or renewable energy applications, the Type R shunts are designed to meet the rigorous standards required for safe and efficient operation.
Overview
Introducing the Type R Multi-Fin Design Bus Bar Shunts from Spectrum, a cutting-edge solution engineered to deliver precise and reliable current measurement for high-performance electrical systems. Built with innovation and durability in mind, these shunts feature a sophisticated multi-fin design that ensures optimal contact and minimal resistance, providing accurate readings even under demanding conditions. Whether used in industrial, commercial, or renewable energy applications, the Type R shunts are designed to meet the rigorous standards required for safe and efficient operation.
The advanced multi-fin configuration enhances thermal management by distributing heat more effectively, which extends the lifespan of the device and maintains measurement stability over time. Crafted from high-quality materials, these bus bar shunts are resistant to corrosion and mechanical wear, ensuring long-term reliability in various environments. Their compact and robust construction allows for easy installation and integration into existing electrical systems, making them a versatile choice for engineers and technicians seeking dependable current sensing solutions.
Furthermore, the Type R Multi-Fin Design Bus Bar Shunts are engineered to deliver highly accurate current measurements, supporting precise system monitoring and control. This precision is crucial for optimizing energy efficiency, preventing overloads, and ensuring safety across complex electrical networks. With Spectrum’s commitment to quality and innovation, these shunts provide a reliable foundation for your electrical measurement needs, helping you achieve operational excellence and peace of mind.
Request a Quote for Type R - Multi-Fin Design Bus - Bar Shunts
Product Specifications
- Application
- Metering
- Design
- Multi-fin bus-bar
- Current range
- 1,000 - 2,000 A
- Hole diameter tolerance
- +/- 0.015 in
- Overall Accuracy — Accuracy
- 0.25
Specification Table
| Max Current | mV Output @ rated |
|---|---|
| 1000 | 50 |
| 1200 | 50 |
| 1500 | 50 |
| 2000 | 50 |
| 1000 | 100 |
| 1200 | 100 |
| 1500 | 100 |
| 2000 | 100 |
