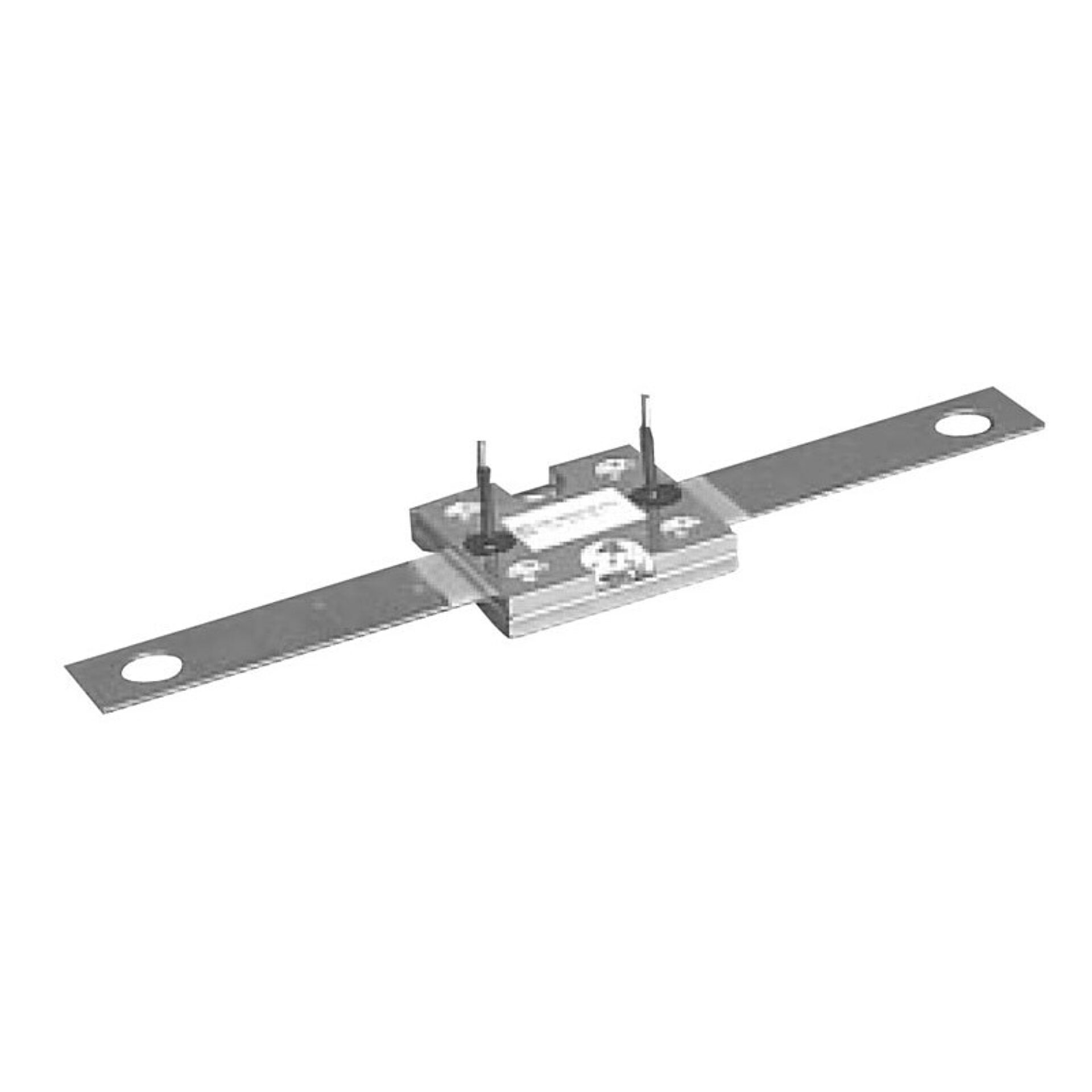

Type TMH - 200 Watts Heat Sink Mounted Hi-Per Shunt

Type TMH - 200 Watts Heat Sink Mounted Hi-Per Shunt

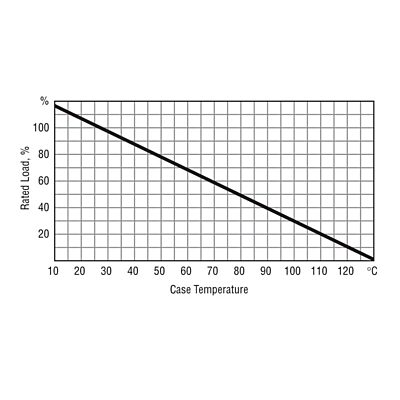

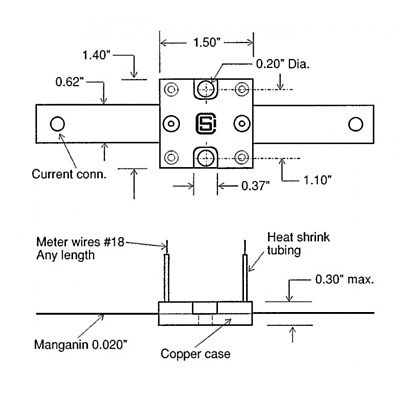

Up to 200 Watts at +25ºC Case Temperature derated to zero at +130ºC Copper Heat Dissipating Mounting Surface Resistance Range of: 0.03 to 0.0015 Ohms Maximum Current: 350 Amps Resistance Tolerance: ±0.25% or ±0.10% Breakdown Voltage: 1.5 kV to 5 kV AC Exclusive Non-Inductive Design Use your thermal design experience with power semiconductors. This experience will help you get the most out of this unique family of high performance (Hi-Per) shunts. The thermal design issues are the same where the power handling capability is based on the case temperature which is maintained in your design. Resistor element is electrically isolated from the mounting metal heat sink surface. The case temperature is to be used for the purpose of establishing the maximum applied power. See Derating Curve. We are ready to assist you in the application of the new generation of shunts or in the design of a custom shunt product to solve your unique circuit performance requirements. US Patent Pending. Call SPECTRUM for questions on prices and/or non-standard options Voltage - 1000 mV Wattage - 200 W Current - 30 A Resistance Range - 0.03 to 0.0015 ohm Maximum Current - 350 A Resistance Tolerance - "±0.10 % ±0.25 %" Breakdown Voltage (AC) - 1.5 to 5 kV
