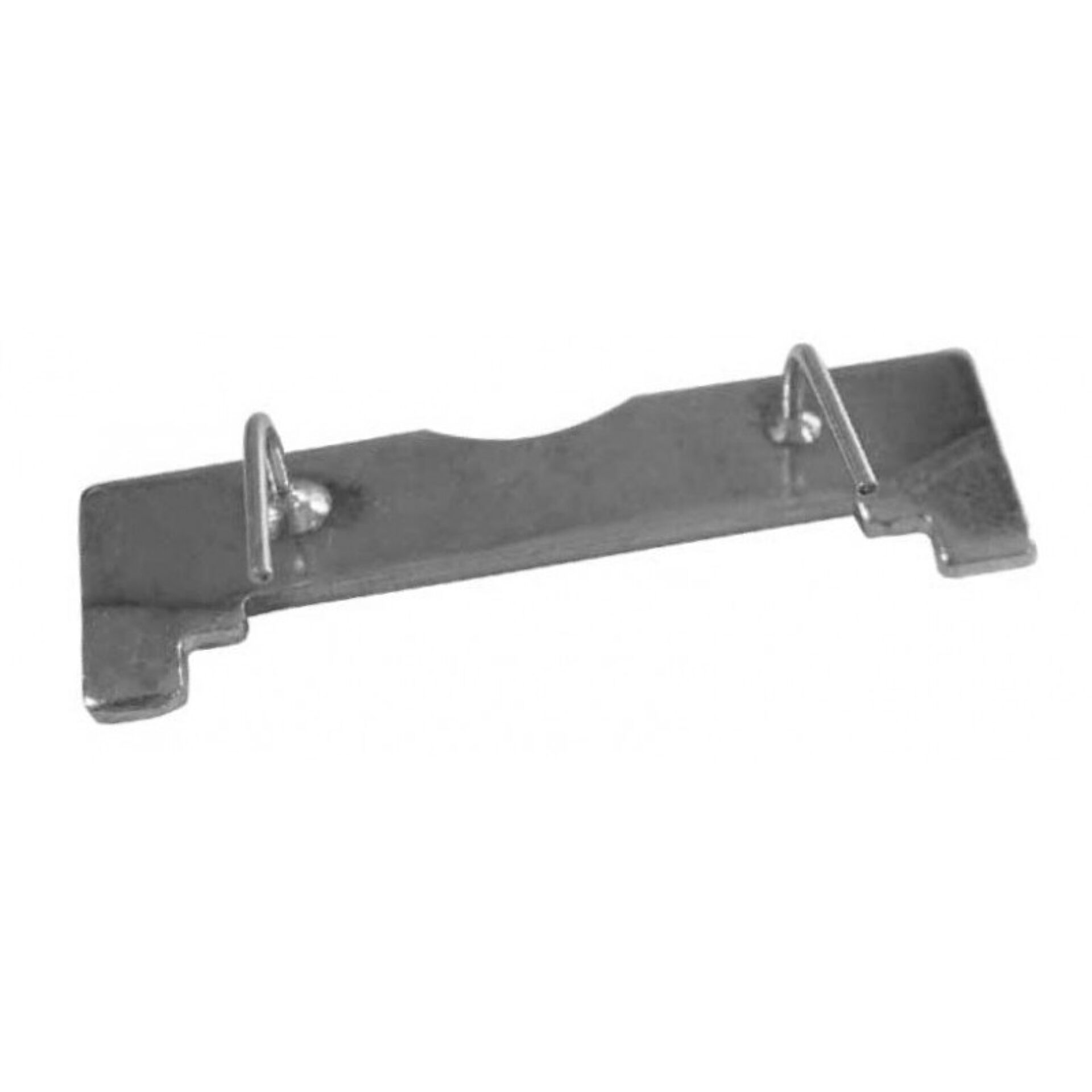

Type V - DC Ammeter Shunts
Introducing the Type V DC Ammeter Shunts from Spectrum Industries, a reliable and precise solution designed for accurate current measurement in DC electrical systems. Engineered with exceptional craftsmanship and attention to detail, these shunts provide a dependable means to monitor and manage electrical performance in various applications, from industrial machinery to renewable energy systems. Crafted from high-quality materials, the Type V shunts are built to withstand demanding operational conditions, ensuring longevity and consistent performance over time.
Overview
Introducing the Type V DC Ammeter Shunts from Spectrum Industries, a reliable and precise solution designed for accurate current measurement in DC electrical systems. Engineered with exceptional craftsmanship and attention to detail, these shunts provide a dependable means to monitor and manage electrical performance in various applications, from industrial machinery to renewable energy systems. Crafted from high-quality materials, the Type V shunts are built to withstand demanding operational conditions, ensuring longevity and consistent performance over time.
These shunts are engineered to deliver precise voltage drops proportional to the current flowing through them, allowing for highly accurate readings when used in conjunction with ammeters. Their robust construction minimizes power loss and heat generation, making them suitable for continuous use in high-current environments. Spectrum’s Type V DC Ammeter Shunts are designed with ease of installation in mind, featuring standard configurations that integrate seamlessly into existing systems. Whether you’re measuring current in power supplies, battery banks, or motor controllers, these shunts provide the dependable performance required for effective system monitoring and troubleshooting.
With a focus on safety, durability, and accuracy, Spectrum Industries’ Type V DC Ammeter Shunts are an essential component for professionals seeking reliable current measurement solutions. Their versatility and high-quality design make them an excellent choice for a wide range of DC electrical applications, ensuring your systems operate efficiently and safely.
Request a Quote for Type V - DC Ammeter Shunts
Product Specifications
- Application
- Metering

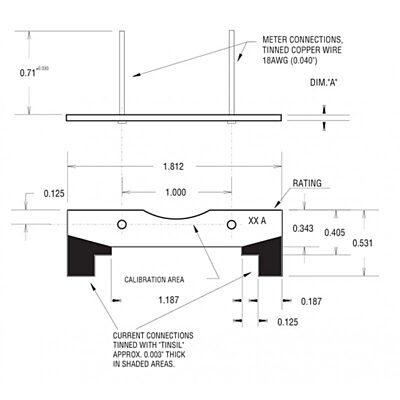

- Dimensional Tolerances
- ±0.015 in for hole diameters; ±0.030 in otherwise
- Overall Accuracy — Accuracy
- 0.25
- Overall Accuracy — Condition
- STD Accuracy
Specification Table
| Max Current | mV Output @ rated | Tolerance |
|---|---|---|
| 50 | 100 | 0.25 |
| 75 | 100 | 0.25 |
| 100 | 100 | 0.25 |
| 150 | 100 | 0.25 |
| 200 | 100 | 0.25 |
| 250 | 100 | 0.25 |
| 300 | 100 | 0.25 |
| 375 | 100 | 0.25 |
| 400 | 100 | 0.25 |
| 500 | 100 | 0.25 |
| 600 | 100 | 0.25 |
| 15 | 50 | 0.25 |
| 20 | 50 | 0.25 |
| 50 | 50 | 0.25 |
| 75 | 50 | 0.25 |
| 100 | 50 | 0.25 |
| 125 | 50 | 0.25 |
| 150 | 50 | 0.25 |
| 175 | 50 | 0.25 |
| 200 | 50 | 0.25 |
| 250 | 50 | 0.25 |
| 300 | 50 | 0.25 |
| 375 | 50 | 0.25 |
| 400 | 50 | 0.25 |
| 500 | 50 | 0.25 |
| 600 | 50 | 0.25 |
