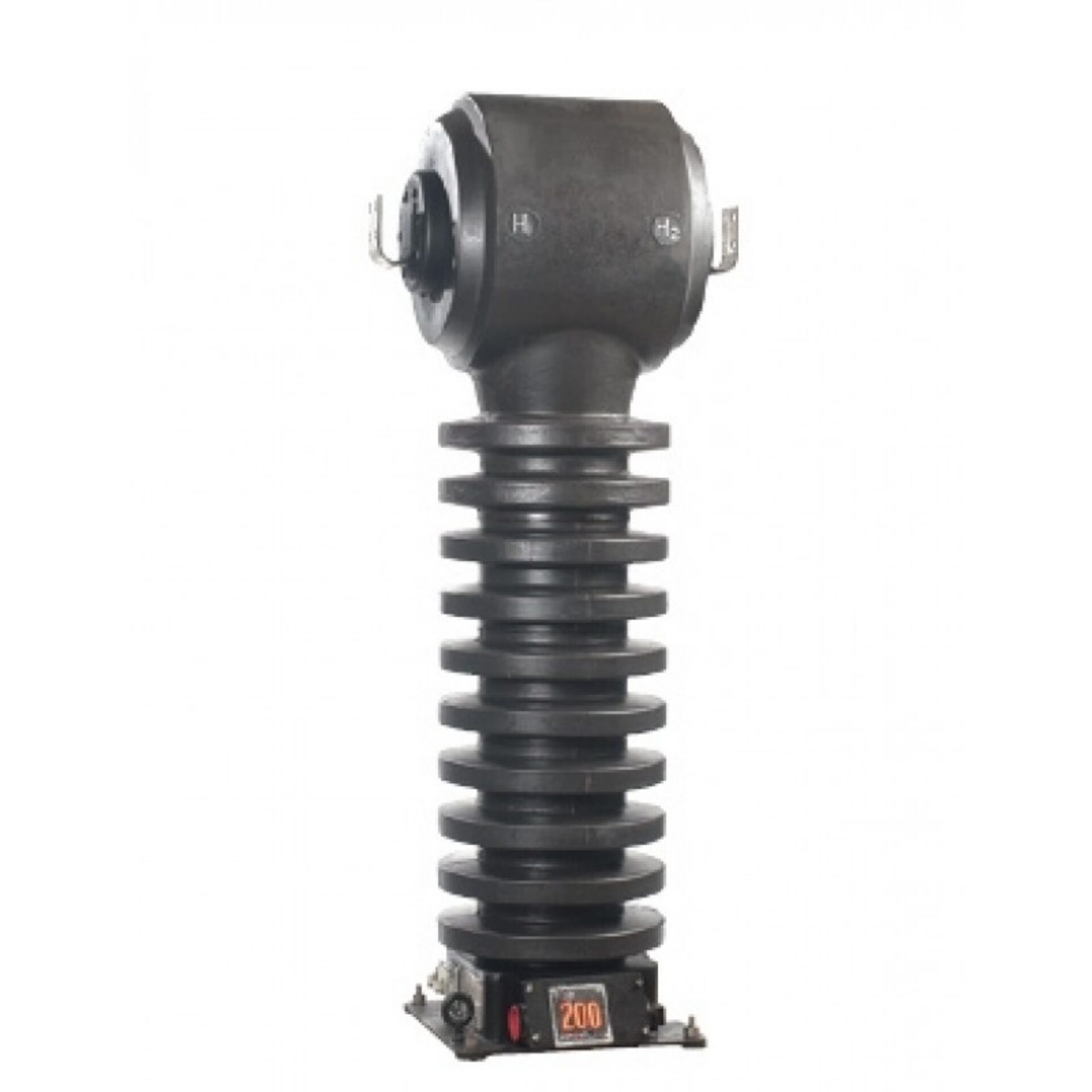

JKW-250 Outdoor Current Transformer - 46KV Class
Introducing the JKW-250 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical power systems. and brought to you by Spectrum Industries, this transformer exemplifies reliability, precision, and durability in outdoor electrical applications. Engineered to operate efficiently in challenging environments, the JKW-250 is ideal for measuring high current levels in medium-voltage distribution networks, ensuring accurate readings and safe operation.
Overview
Introducing the JKW-250 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical power systems. and brought to you by Spectrum Industries, this transformer exemplifies reliability, precision, and durability in outdoor electrical applications. Engineered to operate efficiently in challenging environments, the JKW-250 is ideal for measuring high current levels in medium-voltage distribution networks, ensuring accurate readings and safe operation.
a global leader in electrical equipment and technology, this current transformer benefits from decades of innovation and expertise in power system solutions. Its robust construction and weather-resistant features make it suitable for outdoor installations, providing peace of mind in various climatic conditions. The JKW-250 is rated at 46kV class, making it suitable for a wide range of medium-voltage applications, including substations, industrial facilities, and utility networks.
Spectrum Industries ensures that this product adheres to the highest standards of quality and performance. Designed with ease of installation and maintenance in mind, the JKW-250 offers a reliable and accurate means of current measurement, contributing to the overall safety and efficiency of your electrical infrastructure. Whether for new installations or upgrades, this current transformer is a dependable choice that combines innovative design with proven technology.
Request a Quote for JKW-250 Outdoor Current Transformer - 46KV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 250 kV
- Weight
- 543 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Creep Distance
- 70.98 in [1803 mm]
- Insulation Material
- HY-BUTE 60 butyl rubber (molded, hydrophobic, non-arc-tracking, resistant to heat/chemicals/ozone/UV)
- Measurement Canada Approval
- T-0117
- Accuracy Options
- High accuracy options available upon request (sheet footnote).
- IEEE Metering Accuracy Class
- 0.3 B1.8 (uniform across all catalog numbers in the unit selection table)
Specification Table
| Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|
| 5 | 25/50:5 | 0.3B1.8 |
| 5 | 50/100:5 | 0.3B1.8 |
| 5 | 75/150:5 | 0.3B1.8 |
| 5 | 100/200:5 | 0.3B1.8 |
| 5 | 150/300:5 | 0.3B1.8 |
| 5 | 200/400:5 | 0.3B1.8 |
| 5 | 300/600:5 | 0.3B1.8 |
| 5 | 400/800:5 | 0.3B1.8 |
| 5 | 500/1000:5 | 0.3B1.8 |
| 5 | 600/1200:5 | 0.3B1.8 |
| 5 | 800/1600:5 | 0.3B1.8 |
| 5 | 1000/2000:5 | 0.3B1.8 |
| 5 | 1500/3000:5 | 0.3B1.8 |
