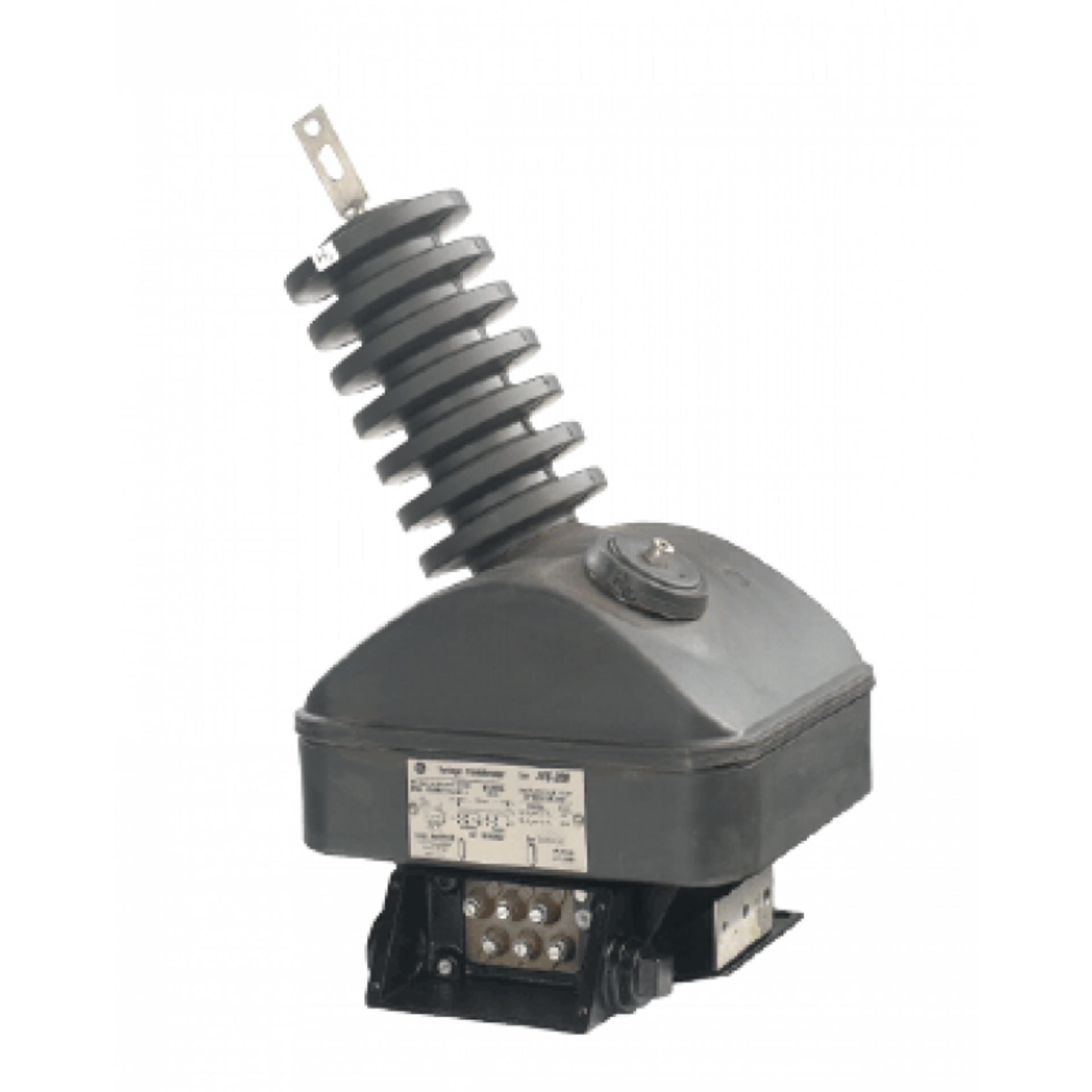

JVS-150 Outdoor Voltage Transformer - 25kV Class
Introducing the JVS-150 Outdoor Voltage Transformer, a high-performance product, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern electrical infrastructure, this transformer offers reliable voltage regulation and enhanced safety for outdoor applications. Its robust construction ensures durability and longevity, even in challenging environmental conditions, making it an ideal choice for utility providers and industrial users alike.
Overview
Introducing the JVS-150 Outdoor Voltage Transformer, a high-performance product, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern electrical infrastructure, this transformer offers reliable voltage regulation and enhanced safety for outdoor applications. Its robust construction ensures durability and longevity, even in challenging environmental conditions, making it an ideal choice for utility providers and industrial users alike.
a global leader in electrical equipment and solutions, the JVS-150 combines advanced technology with proven engineering excellence. Its 25kV class rating signifies its capability to handle substantial voltage loads, providing consistent and stable power distribution. Whether deployed in urban or rural settings, this transformer delivers exceptional performance, minimizing downtime and maintenance costs while maximizing operational efficiency.
Spectrum Industries takes pride in offering products that adhere to the highest standards of quality and safety. The JVS-150 Outdoor Voltage Transformer exemplifies this commitment, featuring a design that emphasizes ease of installation, safety features, and long-term reliability. With its proven track record and ’s innovative technology, this transformer is a dependable solution for ensuring the safe and efficient transmission of electrical power in outdoor environments. Trust Spectrum Industries to provide equipment that supports your infrastructure needs with precision and confidence.
Request a Quote for JVS-150 Outdoor Voltage Transformer - 25kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 230 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Primary Winding Style
- Lattice-Type
- Creep Distance
- 27.50 in (698.5 mm)
- Overvoltage Capability
- 173% of rated voltage for 1 minute without exceeding 175C temperature rise
- Nominal System Voltage
- 24,000 V
- Approval
- Measurement Canada Approval T-0118
- Secondary Terminal
- Screw-type (1/4-20 UNC) binding heads, enclosed in conduit box with 1-1/2 in threaded conduit openings each end
- Ground Terminal
- Clamp-type, accepts No. 2 solid to 500 MCM copper or aluminum grounding cable
- Baseplate Material
- Cast aluminum, two coats baked enamel
- Mounting Orientation
- Any position, upright to inverted
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- 0.3 accuracy class, ZZ burden designation (also rated W,X,M,Y,Z), all models
- Burden — Value
- 3000
- Burden — Condition
- max
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 14400 | 120 | 120:1 & 200:1 |
