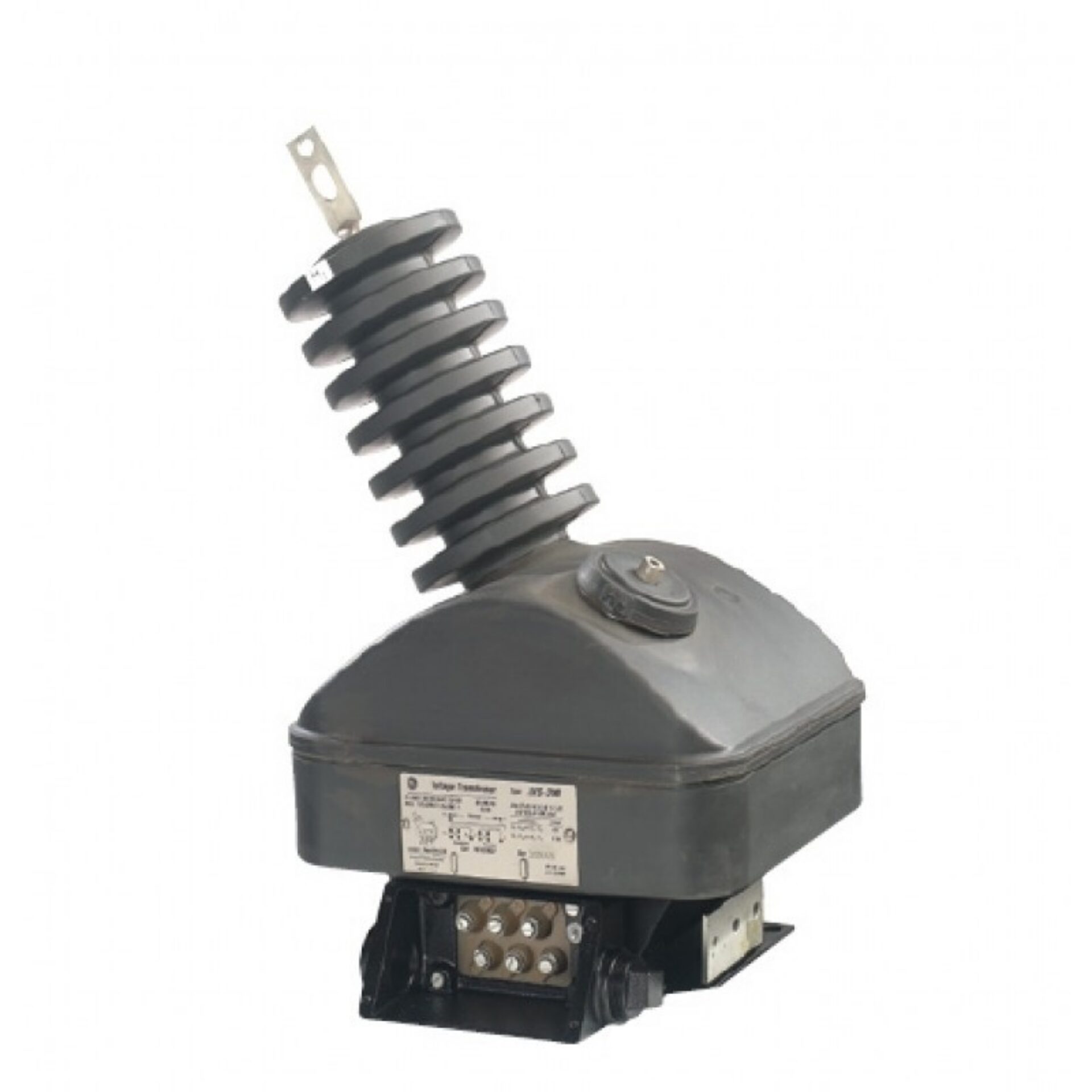

JVS-200 Outdoor Voltage Transformer - 36kV Class
Introducing the JVS-200 Outdoor Voltage Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical distribution systems. and produced by Spectrum Industries, this transformer offers reliable performance and exceptional durability in outdoor environments. Engineered to operate efficiently at 36kV class, the JVS-200 is ideal for utility companies and industrial applications where robust voltage transformation is essential.
Overview
Introducing the JVS-200 Outdoor Voltage Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical distribution systems. and produced by Spectrum Industries, this transformer offers reliable performance and exceptional durability in outdoor environments. Engineered to operate efficiently at 36kV class, the JVS-200 is ideal for utility companies and industrial applications where robust voltage transformation is essential.
Built with precision and high-quality materials, the JVS-200 ensures consistent voltage regulation and minimal power loss, contributing to the overall stability of electrical networks. Its rugged construction is specifically designed to withstand harsh weather conditions, including rain, snow, and extreme temperatures, making it a dependable choice for outdoor installations. The transformer’s compact design allows for easier installation and maintenance, reducing downtime and operational costs.
Produced by Spectrum Industries under the trusted manufacturing standards of, the JVS-200 embodies innovation, safety, and efficiency. It is engineered to deliver long-lasting performance while adhering to strict industry standards and safety protocols. Whether used in utility distribution or industrial settings, this transformer provides a reliable and efficient solution for voltage transformation needs, ensuring the continuous and safe delivery of electrical power.
Request a Quote for JVS-200 Outdoor Voltage Transformer - 36kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 200 kV
- Weight
- 240 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation
- HY-BUTE 60 butyl rubber
- Primary Winding Style
- Lattice-type
- Accuracy Class & Burden
- 0.3ZZ, all models
- Creep Distance
- 36.50 in [927 mm]
- Shipping / Net Weight
- 280 / 240 lbs
- Overvoltage Capability
- 173% of rated voltage for one minute
- Connection
- Line-to-ground only, on grounded systems
- Revenue Metering Approval
- Measurement Canada T-0118
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 20125 | 120 | 175/300 & 175/300:1 |
