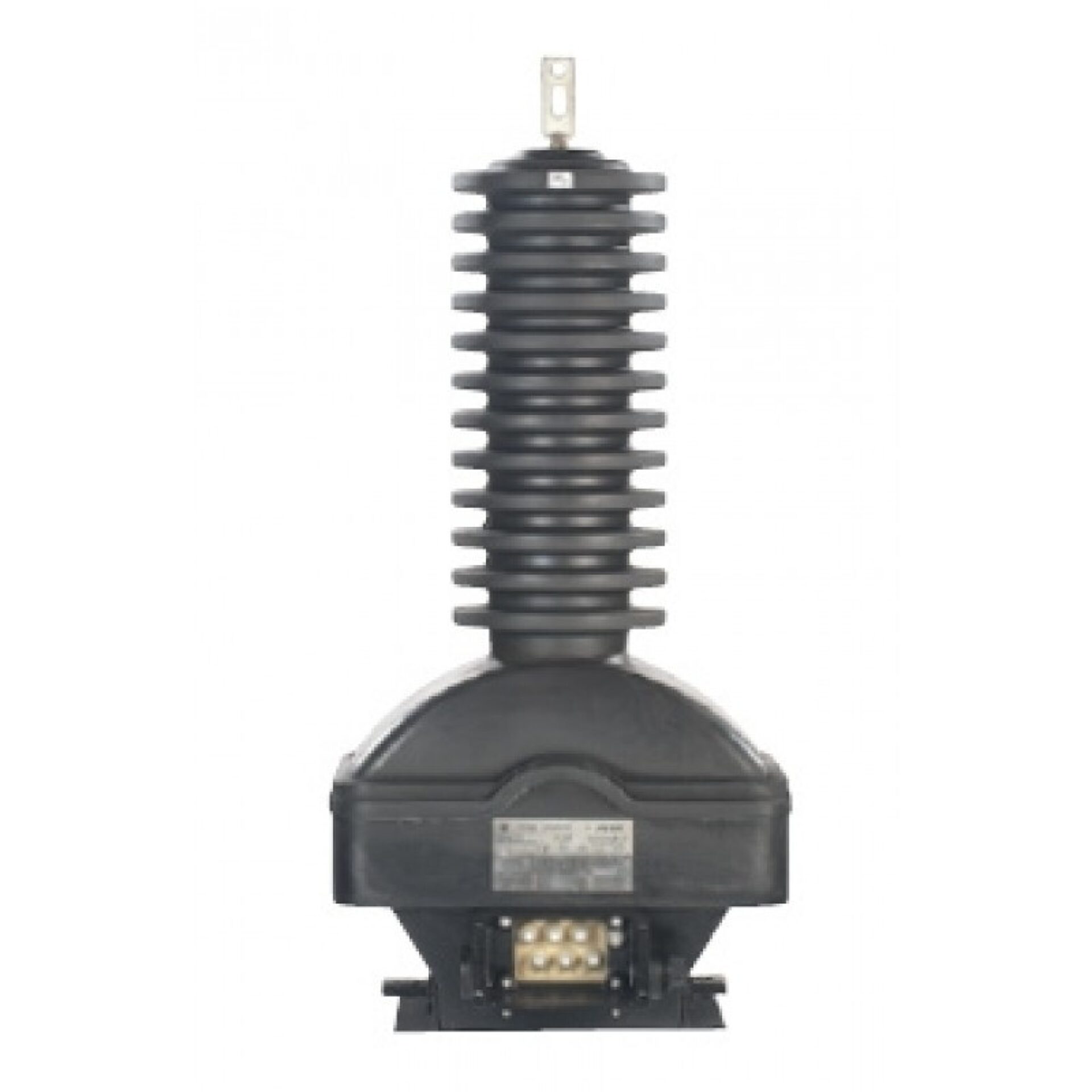

JVS-250 Outdoor Voltage Transformer - 46kV Class
Introducing the JVS-250 Outdoor Voltage Transformer, a high-quality solution designed to meet the demanding needs of modern electrical infrastructure. and produced by Spectrum Industries, this transformer offers reliable performance and durability in outdoor environments, making it an ideal choice for utility companies and electrical service providers. Engineered to operate efficiently at a 46kV class, the JVS-250 ensures accurate voltage transformation and stable power delivery across a variety of applications.
Overview
Introducing the JVS-250 Outdoor Voltage Transformer, a high-quality solution designed to meet the demanding needs of modern electrical infrastructure. and produced by Spectrum Industries, this transformer offers reliable performance and durability in outdoor environments, making it an ideal choice for utility companies and electrical service providers. Engineered to operate efficiently at a 46kV class, the JVS-250 ensures accurate voltage transformation and stable power delivery across a variety of applications.
Built with precision and robust construction, the JVS-250 is designed to withstand harsh weather conditions, ensuring long-lasting performance even in challenging outdoor settings. Its advanced design incorporates safety features and ease of installation, reducing maintenance costs and improving overall system reliability. Spectrum Industries’ commitment to quality is evident in every aspect of this transformer, from its high-grade materials to its meticulous manufacturing processes.
Whether used in distribution networks or for specialized industrial applications, the JVS-250 provides a dependable and efficient solution for voltage regulation needs. Its compatibility with existing infrastructure and adherence to industry standards make it a versatile addition to any electrical system. Trust in ’s legacy of innovation combined with Spectrum Industries’ expertise to deliver a product that ensures safety, efficiency, and longevity in outdoor electrical applications.
Request a Quote for JVS-250 Outdoor Voltage Transformer - 46kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 250 kV
- Weight
- 420 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- Butyl rubber (molded), non-arc tracking, resistant to heat/chemicals/ozone/UV
- Primary Winding Style
- Lattice-type
- Creep Distance
- 48 in (1219 mm)
- Approval
- Measurement Canada Approval T-0118
- Secondary Terminal Voltages
- X1-X3 = 115V, X2-X3 = 60V, Y1-Y3 = 115V, Y2-Y3 = 69V (dual tapped secondary)
- Tap Loading Limit
- To achieve 5,000 VA total on the 67.08V tap, loading on that tap must not exceed 3,000 VA if combined with other tap loading; if all load is on the 67.08V tap alone, thermal rating is 4,000 VA
- Ground Terminal
- Clamp-type, accepts No. 2 solid to 500 MCM copper or aluminum grounding cable
- Bushing Configuration
- Single-bushing, line-to-ground operation on grounded systems only
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- Class 0.3 at all standard burden designations (W, X, M, Y, Z, ZZ)
- Burden — Value
- 5000
- Burden — Condition
- max
- Max Overload — Multiplier
- 1.73
- Max Overload — Duration
- 60
- Max Overload — Condition
- 173% of rated voltage for one minute without exceeding 175C temperature rise
Specification Table
| Primary V | Ratio (display) |
|---|---|
| 27600 | 240/400:1 |
Downloads
Browse Other Transformers
Large Transformer Inventory In Stock.
Need Transformers Fast? Download Our Current Inventory List!
