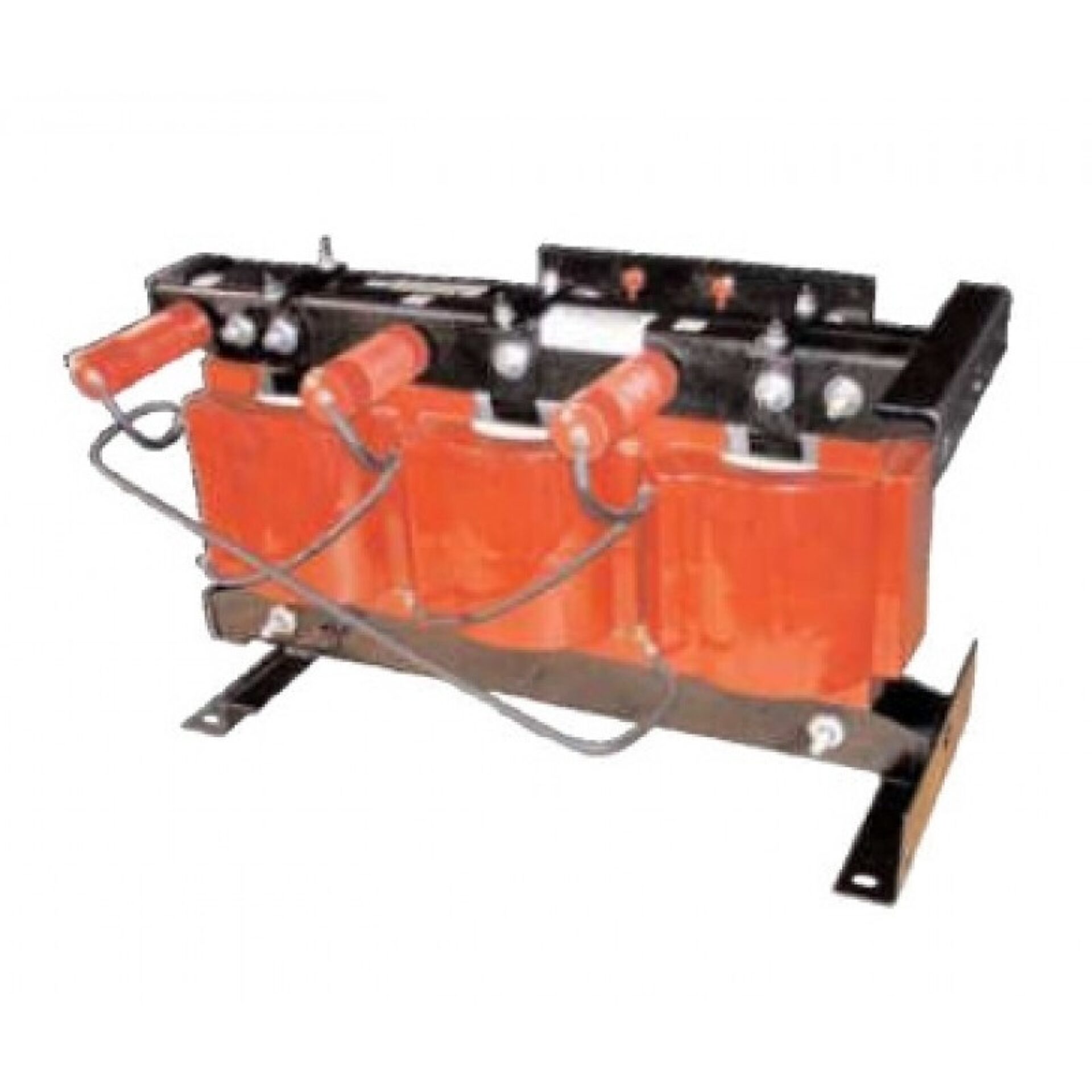

Model 3CPT3-60-30 Control Power Transformer - 30 kVA - 60 kV BIL
Introducing the Model 3CPT3-60/30 Control Power Transformer, a high-quality solution to meet the demanding needs of industrial and electrical applications. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable control power with exceptional efficiency and durability. With a power rating of 30 kVA, it is well-suited for a variety of control circuit applications, ensuring stable voltage and optimal performance in complex electrical systems.
Overview
Introducing the Model 3CPT3-60/30 Control Power Transformer, a high-quality solution to meet the demanding needs of industrial and electrical applications. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable control power with exceptional efficiency and durability. With a power rating of 30 kVA, it is well-suited for a variety of control circuit applications, ensuring stable voltage and optimal performance in complex electrical systems.
Built with precision and attention to detail, the Model 3CPT3-60/30 features a robust construction that guarantees long-lasting operation even in challenging environments. Its 60 kV BIL (Basic Insulation Level) provides added safety and reliability, making it a trusted choice for critical control and automation systems. The transformer’s compact design allows for easy installation and integration into existing setups, while its high-quality components ensure minimal maintenance and downtime.
and distributed by Spectrum Industries, this control power transformer exemplifies the commitment to excellence and innovation. Whether used in industrial manufacturing, power distribution, or automation control panels, the Model 3CPT3-60/30 offers dependable performance and peace of mind. It is an ideal solution for professionals seeking a durable, efficient, and reliable control power transformer to support their electrical infrastructure.
Request a Quote for Model 3CPT3-60-30 Control Power Transformer - 30 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 730 lbs
- Mounting
- Indoor
- Application
- Switchgear
- Insulation Class
- 5 kV class, 60 kV BIL full wave
- Thermal Rating
- 30 kVA at 30°C ambient; 25.7 kVA at 55°C ambient, 80°C rise
- Primary Taps
- Suffix A: (1) + 7 1/2% taps; Suffix B: (2) + 2 1/2% taps
- Fusing
- Available as unfused only
- Terminals
- Primary: copper compression lugs. Secondary: brass studs 1/2-13 with flatwasher, lockwasher, two nuts.
- Construction
- Epoxy resin-encapsulated windings, steel mounting base (7 ga / 0.188in with 8x 0.56x0.875in slots), varnish coated assembly, vertical or horizontal mounting
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 208 | 30 | 20E | Suffix A: (1) + 7 1/2% taps; Suffix B: (2) + 2 1/2% taps |
| 4160 | 208 | 30 | 15E | Suffix A: (1) + 7 1/2% taps; Suffix B: (2) + 2 1/2% taps |
| 4800 | 208 | 30 | 10E | Suffix A: (1) + 7 1/2% taps; Suffix B: (2) + 2 1/2% taps |
