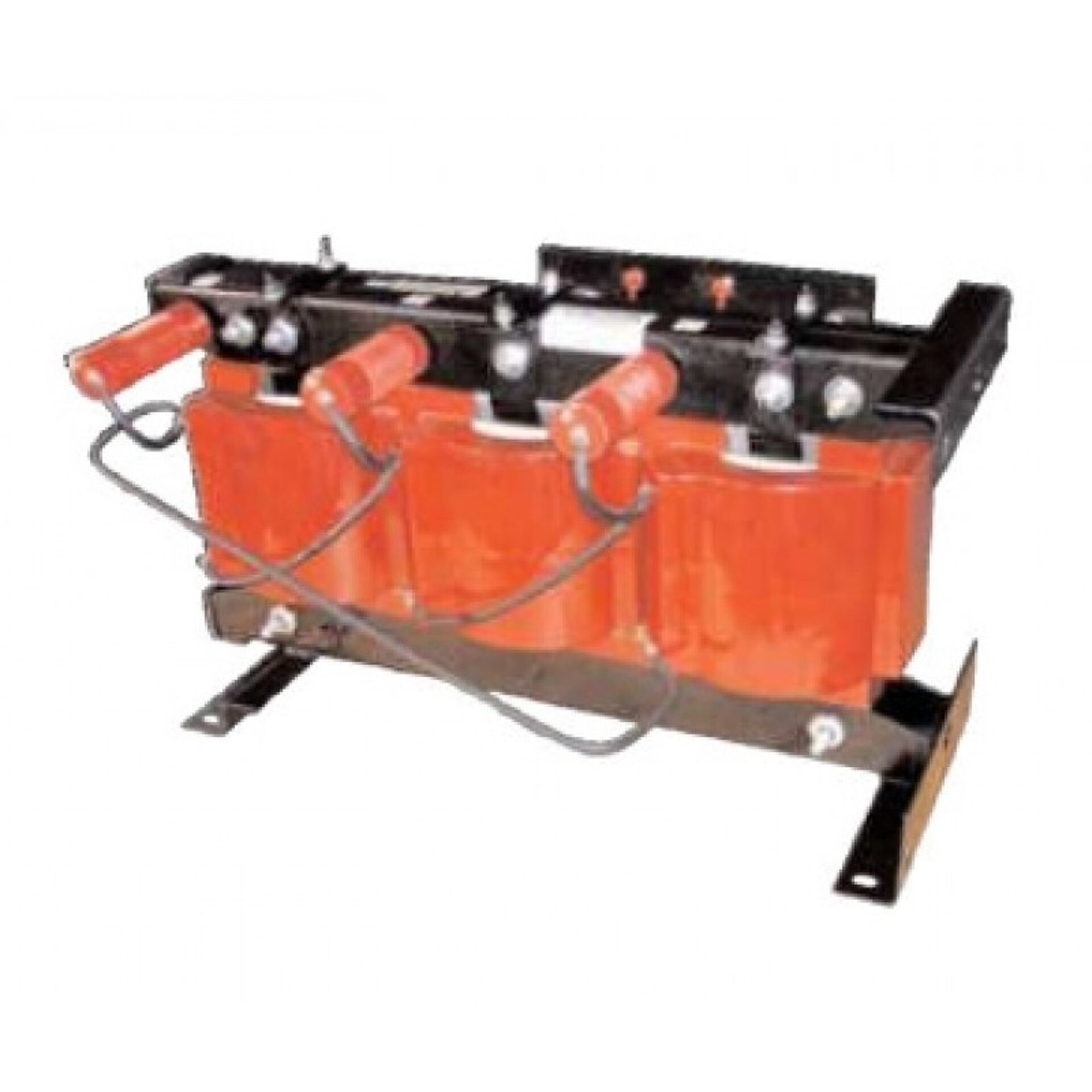

Model 3CPT5-95-45 Control Power Transformer - 45 kVA - 95 kV BIL
Introducing the Model 3CPT5-95-45 Control Power Transformer, a high-performance solution engineered to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment and innovation, this transformer exemplifies durability, reliability, and precision. Designed specifically for control power applications, the 3CPT5-95-45 ensures stable voltage supply and efficient operation in a variety of industrial and commercial environments.
Overview
Introducing the Model 3CPT5-95-45 Control Power Transformer, a high-performance solution engineered to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment and innovation, this transformer exemplifies durability, reliability, and precision. Designed specifically for control power applications, the 3CPT5-95-45 ensures stable voltage supply and efficient operation in a variety of industrial and commercial environments.
This transformer boasts a robust 45 kVA power rating, making it suitable for a wide range of control circuit requirements. With a primary voltage of 95 kV and a secondary voltage of 45 kV, it is capable of handling high voltage loads while maintaining optimal performance. Its construction emphasizes safety and longevity, featuring high-quality materials and engineering standards that meet or exceed industry specifications. The compact design facilitates easy installation and maintenance, reducing downtime and operational costs.
a trusted name in electrical manufacturing, the Model 3CPT5-95-45 Control Power Transformer is an ideal choice for engineers and technicians seeking a reliable, efficient, and durable component for their control systems. Whether used in power distribution, automation, or other critical applications, this transformer provides peace of mind through its proven performance and adherence to rigorous quality standards. Spectrum Industries proudly offers this product, ensuring you receive a dependable solution backed by leading technological expertise.
Request a Quote for Model 3CPT5-95-45 Control Power Transformer - 45 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 730 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level
- 15 kV class, 95 kV BIL full wave
- Thermal Rating
- 45 kVA at 30 C ambient; 38.6 kVA at 55 C ambient, 80 C rise
- Winding Construction
- Windings encapsulated in epoxy resin; assembly varnish coated
- Terminals
- Primary: copper compression-type lugs. Secondary: brass studs 1/2-13 with one flatwasher, lockwasher and two regular nuts.
- Mounting Base
- 7 ga. (0.188 in thk) steel mounting base and frame with (8) 0.56 x 0.875 slots; vertical or horizontal mounting
- Fuse Configuration
- Available as unfused only
- Tap Configuration
- Catalog suffix A = (1) + 7 1/2% taps; suffix B = (2) + 2 1/2% taps, supplied on primary side
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 208 | 45 | 15E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 8400 | 208 | 45 | 15E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 12000 | 208 | 45 | 7E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 12470 | 208 | 45 | 7E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 13200 | 208 | 45 | 7E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 13800 | 208 | 45 | 7E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
