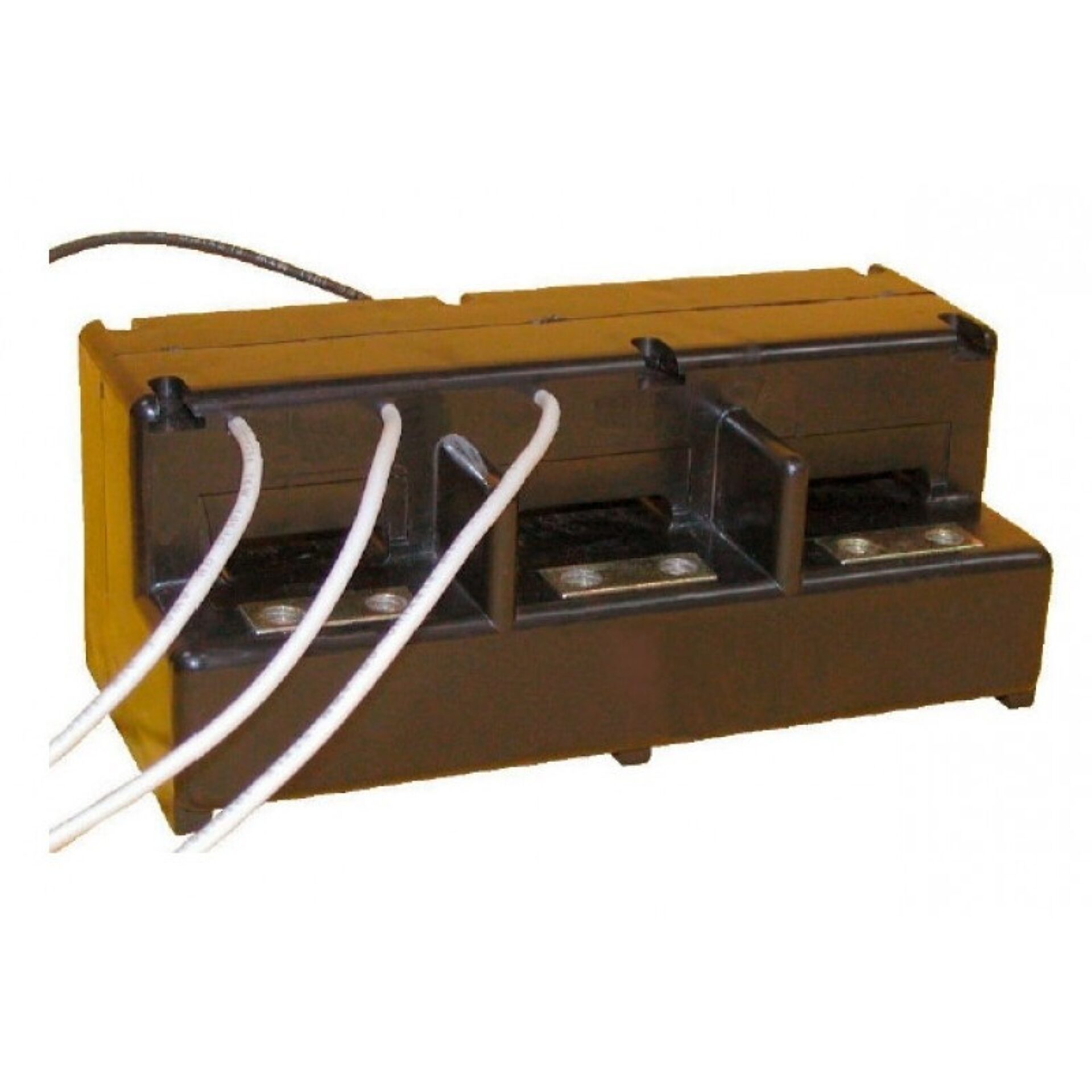

Model 3P9 Current Transformer
APPLICATION: 3 phase metering and motor overload.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Secondary leads are UL 1015, 105oC., CSA approved, No. 16 AWG, 24" long.
Window Size 1.25" x 0.25" Full Radius
Approximate weight 6 lbs.
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
