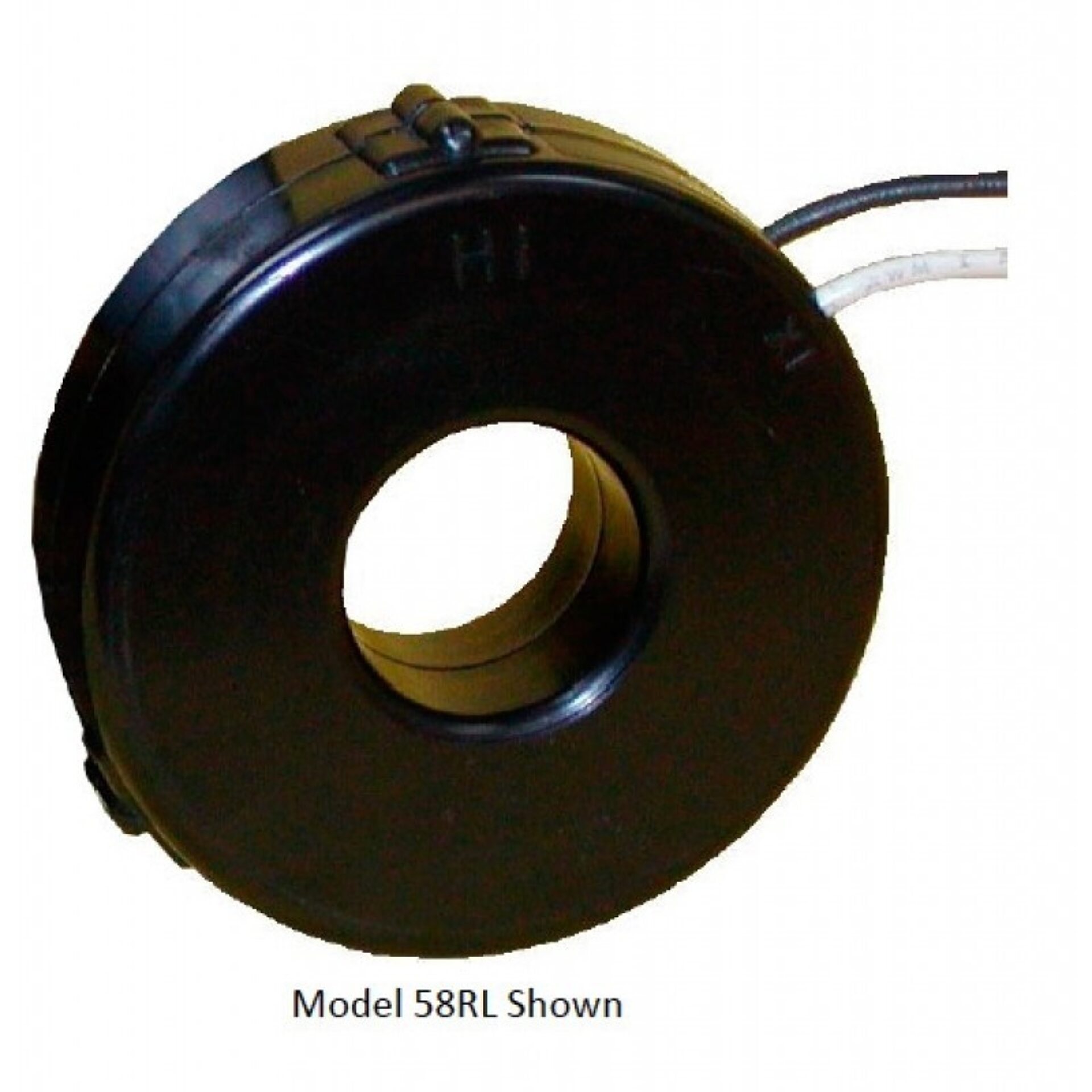

Model 58 Current Transformer
Introducing the Model 58 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise current measurement and voltage transformation, this current transformer is an essential tool for professionals in electrical engineering, power distribution, and maintenance. Its robust construction and reliable performance make it suitable for a wide range of industrial and commercial applications, ensuring accurate readings and safe operation in complex electrical systems.
Overview
Introducing the Model 58 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise current measurement and voltage transformation, this current transformer is an essential tool for professionals in electrical engineering, power distribution, and maintenance. Its robust construction and reliable performance make it suitable for a wide range of industrial and commercial applications, ensuring accurate readings and safe operation in complex electrical systems.
The Model 58 Current Transformer features advanced design specifications that prioritize durability and accuracy. Built with high-grade materials, it offers excellent resistance to environmental factors such as temperature fluctuations and electrical surges. This transformer is engineered to provide consistent, precise current readings, which are critical for monitoring and controlling electrical systems effectively. Its compatibility with various measurement and protection devices makes it a versatile addition to any electrical setup.
a globally recognized leader in electrical equipment manufacturing, the Model 58 embodies the company's commitment to quality and innovation. Spectrum Industries ensures that this product is readily available to meet the demanding needs of industry professionals, delivering reliable performance and long-lasting service. Whether used in power plants, substations, or industrial automation, the Model 58 Current Transformer is a dependable choice for accurate and safe electrical measurements.
Request a Quote for Model 58 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.3 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Window Diameter
- 1.25"
- Flexible Leads
- UL 1015, 105 degC, CSA approved; #16 AWG, 24" long
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Model Designations
- 58, 58RT, 58RBT, 58RL, 58RBL
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 60 | 5 | 60:5 |
| 75 | 5 | 75:5 |
| 80 | 5 | 80:5 |
| 100 | 5 | 100:5 |
| 120 | 5 | 120:5 |
| 125 | 5 | 125:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
