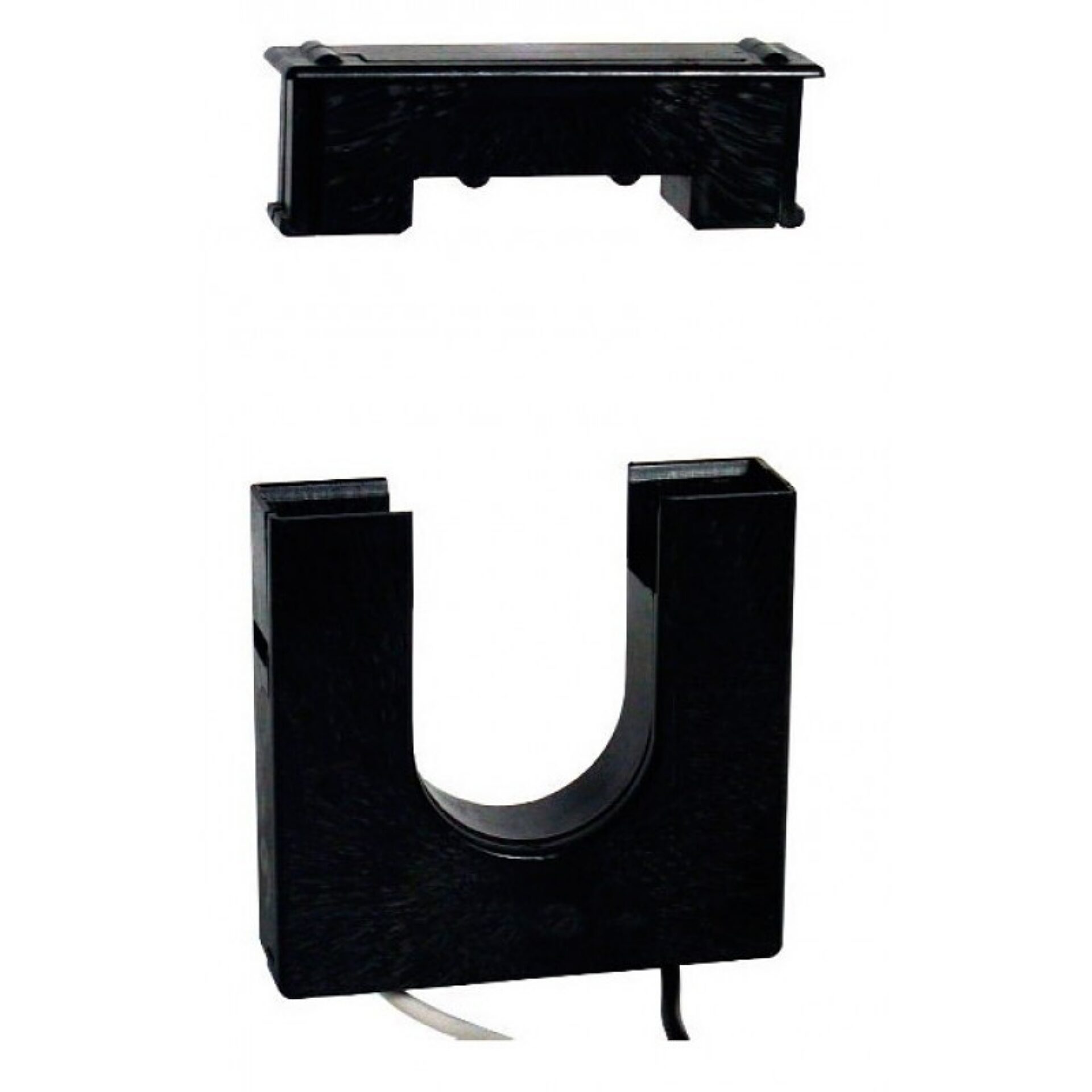

Model 610 High Accuracy Split Core Current Transformer
Introducing the Model 610 High Accuracy Split-Core Current Transformer, a premier solution in collaboration with Spectrum Industries. Designed to deliver precise current measurement in a variety of electrical applications, this transformer is ideal for both installation and maintenance tasks where accuracy and reliability are paramount. Its split-core design allows for easy installation without the need to disconnect wiring, making it a convenient choice for retrofit projects and ongoing system monitoring.
Overview
Introducing the Model 610 High Accuracy Split-Core Current Transformer, a premier solution in collaboration with Spectrum Industries. Designed to deliver precise current measurement in a variety of electrical applications, this transformer is ideal for both installation and maintenance tasks where accuracy and reliability are paramount. Its split-core design allows for easy installation without the need to disconnect wiring, making it a convenient choice for retrofit projects and ongoing system monitoring.
a global leader in electrical and electronic manufacturing, the Model 610 embodies the company's commitment to quality and innovation. Spectrum Industries, renowned for their expertise in electrical measurement solutions, has partnered with to develop this high-performance current transformer. The result is a product that combines advanced engineering with user-friendly features, ensuring accurate readings even in demanding environments.
Built with high-precision components, the Model 610 provides exceptional accuracy across a wide range of current levels. Its robust construction ensures durability and long-term stability, making it suitable for industrial, commercial, and utility applications. Whether used for energy management, system troubleshooting, or detailed electrical analysis, this transformer offers dependable performance. With Spectrum Industries’ focus on quality and ’s technological expertise, the Model 610 stands out as a reliable tool for professionals seeking precise current measurement solutions.
Request a Quote for Model 610 High Accuracy Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.63 lbs
- Application
- Energy Management
- Standards
- UL, CSA
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Continuous Thermal Current Rating Factor
- 330 A at 30°C ambient; 250 A at 55°C ambient
- Window Size
- 1.30" x 1.47"
- Lead Wire
- UL 1015, 105°C, CSA approved, #18 AWG, 24" long unless otherwise specified
- Minimum Input Impedance
- 14K ohms minimum (for connected instrumentation)
- Output — Kind
- V
- Output — Max
- 5
Specification Table
| Ratio (display) |
|---|
| 1,000 Turns |
| 500 Turns |
