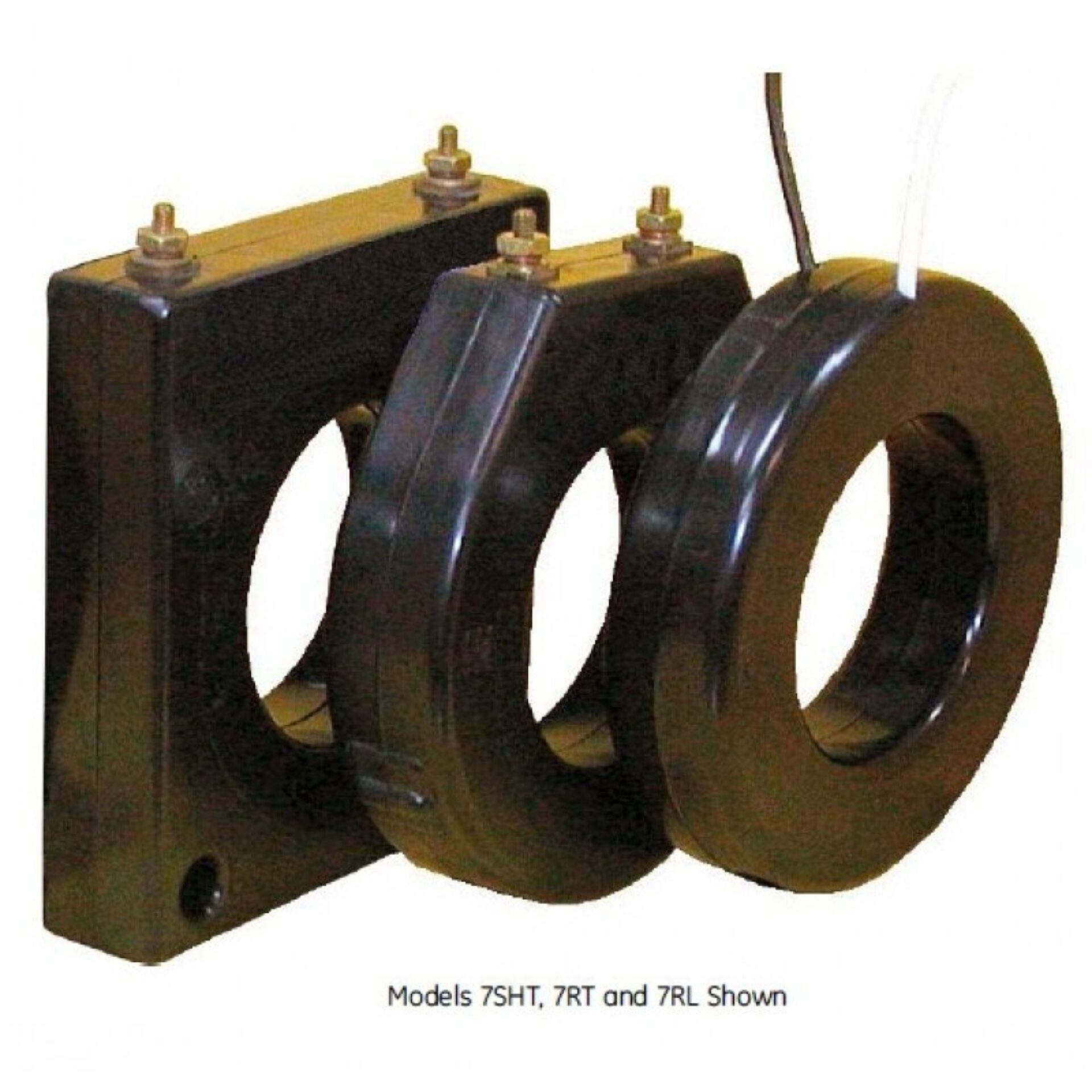

Model 7 Current Transformer
Introducing the Model 7 Current Transformer, a precision-engineered product, brought to you by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance, this current transformer is an essential component for electrical systems that demand high accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model 7 offers seamless integration and consistent results, making it a trusted choice for professionals seeking dependable instrumentation.
Overview
Introducing the Model 7 Current Transformer, a precision-engineered product, brought to you by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance, this current transformer is an essential component for electrical systems that demand high accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model 7 offers seamless integration and consistent results, making it a trusted choice for professionals seeking dependable instrumentation.
a global leader in electrical and electronic manufacturing, the Model 7 Current Transformer benefits from advanced engineering and rigorous quality standards. Its robust construction ensures long-term stability and minimal maintenance, even in demanding environments. The transformer’s design emphasizes safety, efficiency, and precision, providing users with confidence in their measurement data. Its compact form factor allows for easy installation without compromising performance, making it suitable for a wide range of applications.
Spectrum Industries takes pride in offering products that meet the highest standards of quality and reliability. The Model 7 Current Transformer exemplifies this commitment, combining ’s technological expertise with Spectrum Industries’ dedication to customer satisfaction. Whether for new installations or upgrades to existing systems, this current transformer is an excellent choice for engineers and technicians seeking accuracy, durability, and peace of mind in their electrical measurements.
Request a Quote for Model 7 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering
- Standards
- UL, CSA
- Window Diameter
- 2.50 in
- Insulation Level
- 600 V, 10 kV BIL full wave
- Secondary Leads
- #16 AWG, 24 in, UL 1015, 105 C, CSA
- Terminals
- Brass studs No. 8-32 with flat washer, lockwasher, and nut
- Case Style Options
- SFT, SHT, RT, RBT, RL, RBL
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
| 1600 | 5 | 1600:5 |
