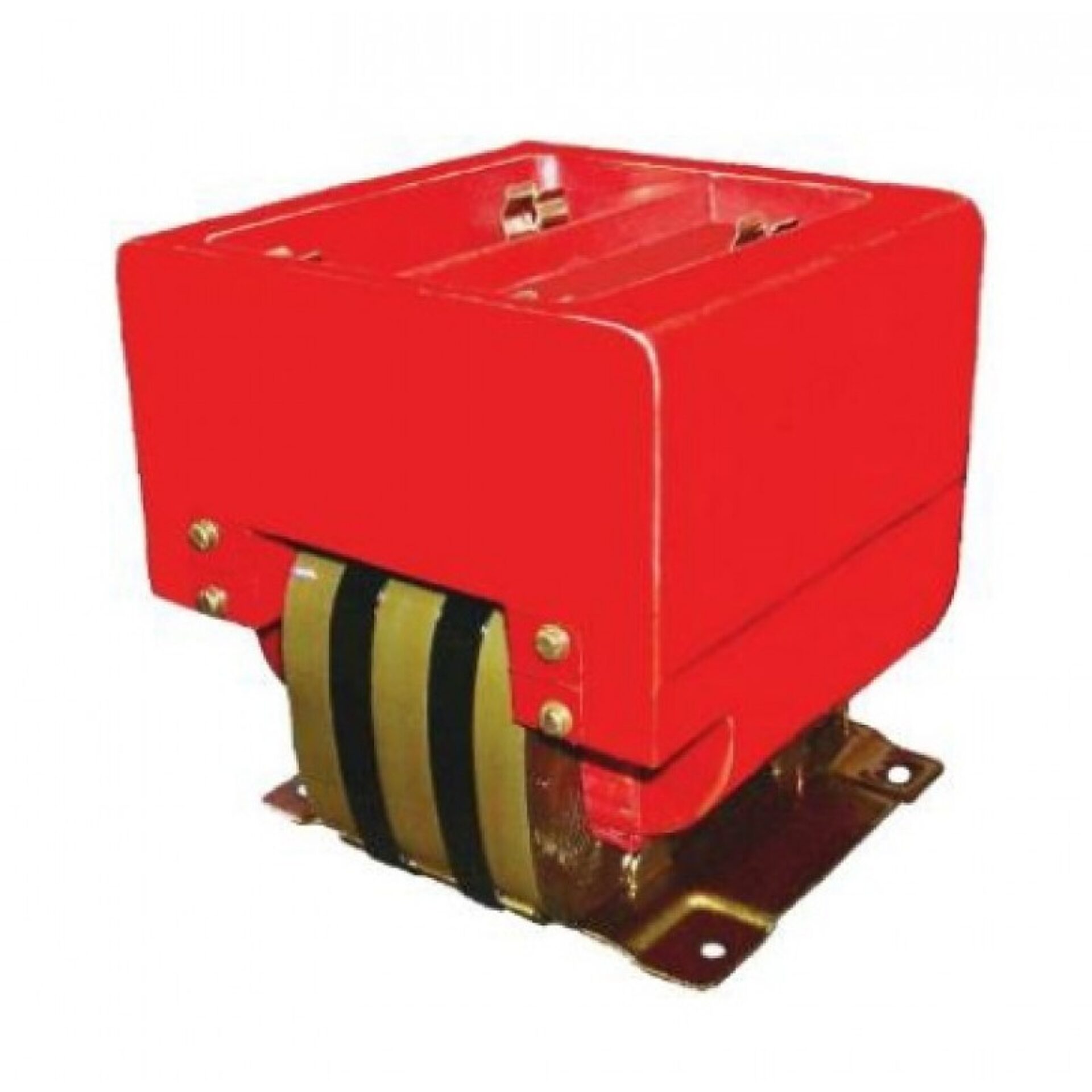

Model CPT3-60-1.5 Medium Voltage Control Power Transformer - 1.5 kVA - 60 kV BIL
Introducing the Model CPT3-60-15 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of industrial and utility applications. and distributed by Spectrum Industries, this transformer exemplifies high-quality engineering and durability, ensuring optimal performance in various electrical systems. With a power rating of 15 kVA and a voltage rating of 60 kV BIL, the CPT3-60-15 offers a robust solution for controlling and distributing electrical power in medium-voltage environments.
Overview
Introducing the Model CPT3-60-15 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of industrial and utility applications. and distributed by Spectrum Industries, this transformer exemplifies high-quality engineering and durability, ensuring optimal performance in various electrical systems. With a power rating of 15 kVA and a voltage rating of 60 kV BIL, the CPT3-60-15 offers a robust solution for controlling and distributing electrical power in medium-voltage environments.
Built with precision and adherence to industry standards, this transformer is engineered to provide consistent voltage regulation and protection for sensitive control circuits. Its compact design allows for easy integration into existing systems, minimizing installation space while maximizing functionality. Whether used in power distribution, control panels, or industrial automation setups, the CPT3-60-15 is designed to deliver stable and reliable power transfer, reducing downtime and maintenance costs.
a global leader in electrical equipment manufacturing, the Model CPT3-60-15 reflects a commitment to quality, safety, and innovation. Spectrum Industries is proud to offer this high-performance transformer as part of their extensive product lineup, ensuring that customers receive equipment that meets the highest standards of performance and reliability. Whether upgrading existing infrastructure or deploying new systems, this transformer is an excellent choice for engineers and technicians seeking dependable medium-voltage control power solutions.
Request a Quote for Model CPT3-60-1.5 Medium Voltage Control Power Transformer - 1.5 kVA - 60 kV BIL
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 54 lbs
- Mounting
- Indoor
- Application
- Distribution, Motor Control, Control Power
- Insulation Level
- 5 kV, 60 kV BIL full wave
- Thermal Rating
- 1.5 kVA at 30 C ambient
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Construction
- Epoxy-encapsulated windings, steel mounting base, varnish coated
- Secondary Voltage
- 120/240 V (110/220 V on the 3,300 V / 50 Hz unit)
- Service Condition
- Indoor use; corrosion-resistant mounting base
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 2400 | 240 | 1.5 | 3E |
| 3300 | 220 | 1.5 | 2E |
| 4160 | 240 | 1.5 | 2E |
| 4800 | 240 | 1.5 | 2E |
