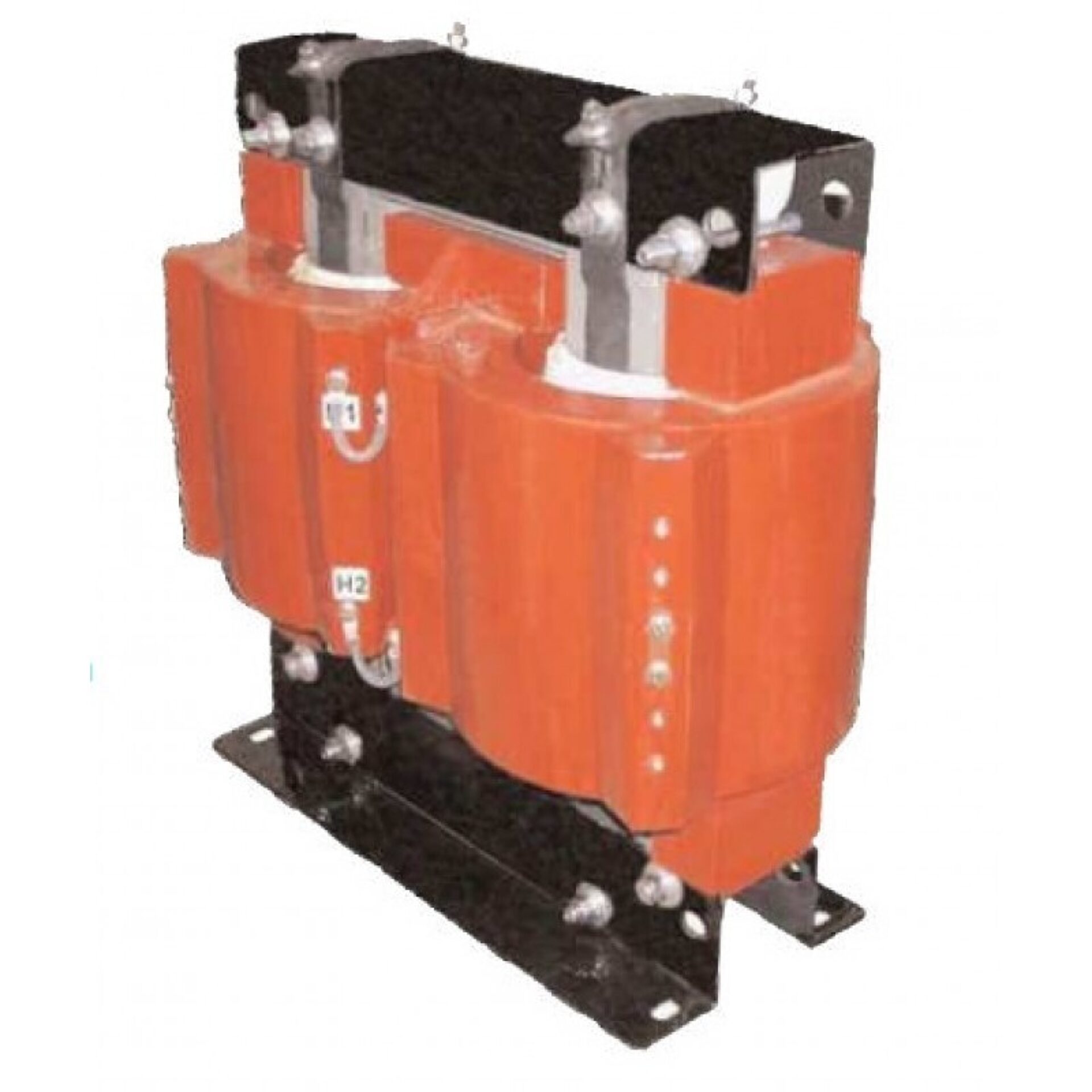

Model CPTN5-95-25 Medium Voltage Control Power Transformer - 25 kVA - 95 kV BIL
Introducing the Model CPTN5-95-25 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment manufacturing, this transformer exemplifies durability, reliability, and efficiency. Engineered specifically for control power applications, it provides a stable and consistent voltage supply essential for the safe operation of various industrial and commercial equipment.
Overview
Introducing the Model CPTN5-95-25 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment manufacturing, this transformer exemplifies durability, reliability, and efficiency. Engineered specifically for control power applications, it provides a stable and consistent voltage supply essential for the safe operation of various industrial and commercial equipment.
The Model CPTN5-95-25 is rated at 25 kVA and is designed to operate at a voltage of 95 kV BIL, making it well-suited for medium voltage control circuits. Its robust construction ensures long-lasting performance even in challenging environments, while its precise engineering guarantees minimal electrical losses. This transformer is an excellent choice for applications requiring dependable power distribution, offering peace of mind through its proven design and quality standards established by.
Spectrum Industries, a trusted name in electrical components and equipment, produces this transformer with the highest standards of quality and safety. Whether used in industrial automation, utility substations, or other control systems, the Model CPTN5-95-25 provides a reliable and efficient power solution. Its compact design and ease of installation make it a practical choice for a variety of electrical infrastructure projects, ensuring seamless integration and optimal performance.
Request a Quote for Model CPTN5-95-25 Medium Voltage Control Power Transformer - 25 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 450 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level
- 15 kV Class, 95 kV BIL full wave
- Thermal Rating
- 25 kVA at 30°C ambient; 21.5 kVA at 55°C ambient, 80°C rise
- Tap Configuration
- 1 ± 7 1/2% or 2 ± 2 1/2% taps above and below nominal voltage on the primary winding
- Terminals
- Primary: brass screws 1/4-20 with flatwasher and starwasher. Secondary: 1/2-13 brass studs.
- Cooling
- Self cooled
- Fusing
- Available as unfused only
- Construction
- Windings encapsulated in epoxy resin; steel mounting base; assembly varnish coated
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 7200 | 120 | 25 | 10E |
| 8400 | 120 | 25 | 10E |
| 12000 | 120 | 25 | 7E |
| 12470 | 120 | 25 | 7E |
| 13200 | 120 | 25 | 7E |
| 13800 | 120 | 25 | 7E |
| 14400 | 120 | 25 | 7E |
