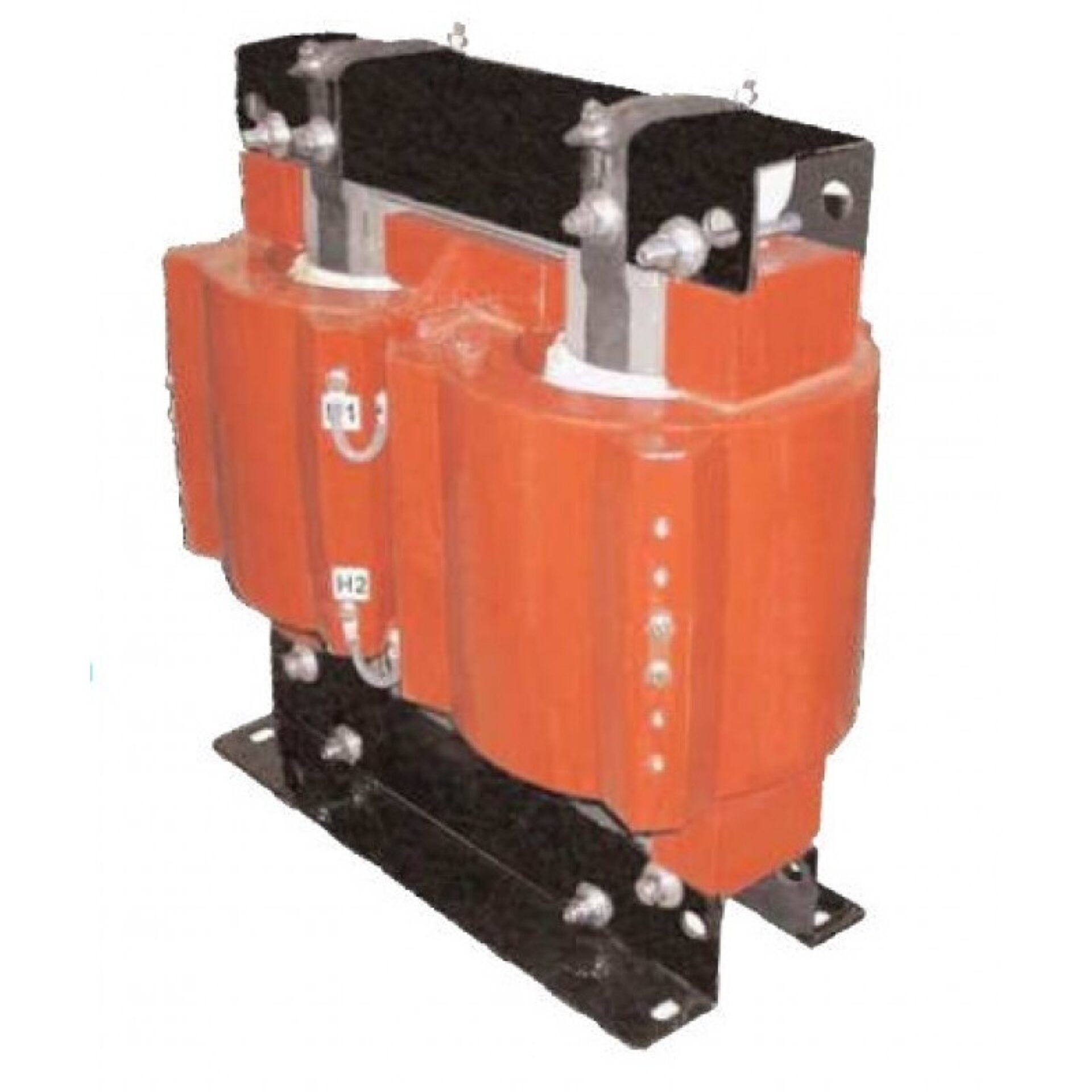

Model CPTN5-95-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 95 kV BIL
Introducing the Model CPTN5-95-375 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver reliable power management in demanding industrial environments, this transformer offers an optimal combination of performance, durability, and efficiency. With a rated capacity of 375 kVA, it is well-suited for various medium voltage applications where stable and consistent power supply is essential.
Overview
Introducing the Model CPTN5-95-375 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver reliable power management in demanding industrial environments, this transformer offers an optimal combination of performance, durability, and efficiency. With a rated capacity of 375 kVA, it is well-suited for various medium voltage applications where stable and consistent power supply is essential.
a global leader in electrical and electronic manufacturing, this transformer exemplifies advanced engineering and innovative design. Its robust construction ensures long-term operational stability, even under challenging conditions, making it a dependable choice for industrial facilities, power distribution systems, and control applications. The Model CPTN5-95-375 features a voltage rating of 95 kV, providing the necessary voltage transformation to meet specific operational requirements while maintaining safety and compliance standards.
Spectrum Industries is proud to offer this high-performance product, which combines ’s renowned quality with Spectrum’s commitment to customer satisfaction. Whether upgrading existing infrastructure or designing new systems, this transformer delivers the power capacity and reliability needed to keep your operations running smoothly. Trust in this -produced transformer from Spectrum Industries to provide the performance and peace of mind essential for your medium voltage power needs.
Request a Quote for Model CPTN5-95-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 450 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Class
- 15 kV Class
- Thermal Rating
- 37.5 kVA at 30 C ambient; 32.2 kVA at 55 C ambient
- Primary Terminals
- Brass screws, 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- 1/2-13 brass studs
- Voltage Taps
- 1 +/- 7.5% or 2 +/- 2.5% taps above and below nominal voltage on the primary winding
- Winding Insulation
- Encapsulated in epoxy resin
- Mounting Base
- Steel base, varnish coated assembly
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|
| 7200 | 37.5 | 20E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 8400 | 37.5 | 20E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 12000 | 37.5 | 10E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 12470 | 37.5 | 10E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 13200 | 37.5 | 10E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 13800 | 37.5 | 10E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
| 14400 | 37.5 | 10E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) above/below nominal |
