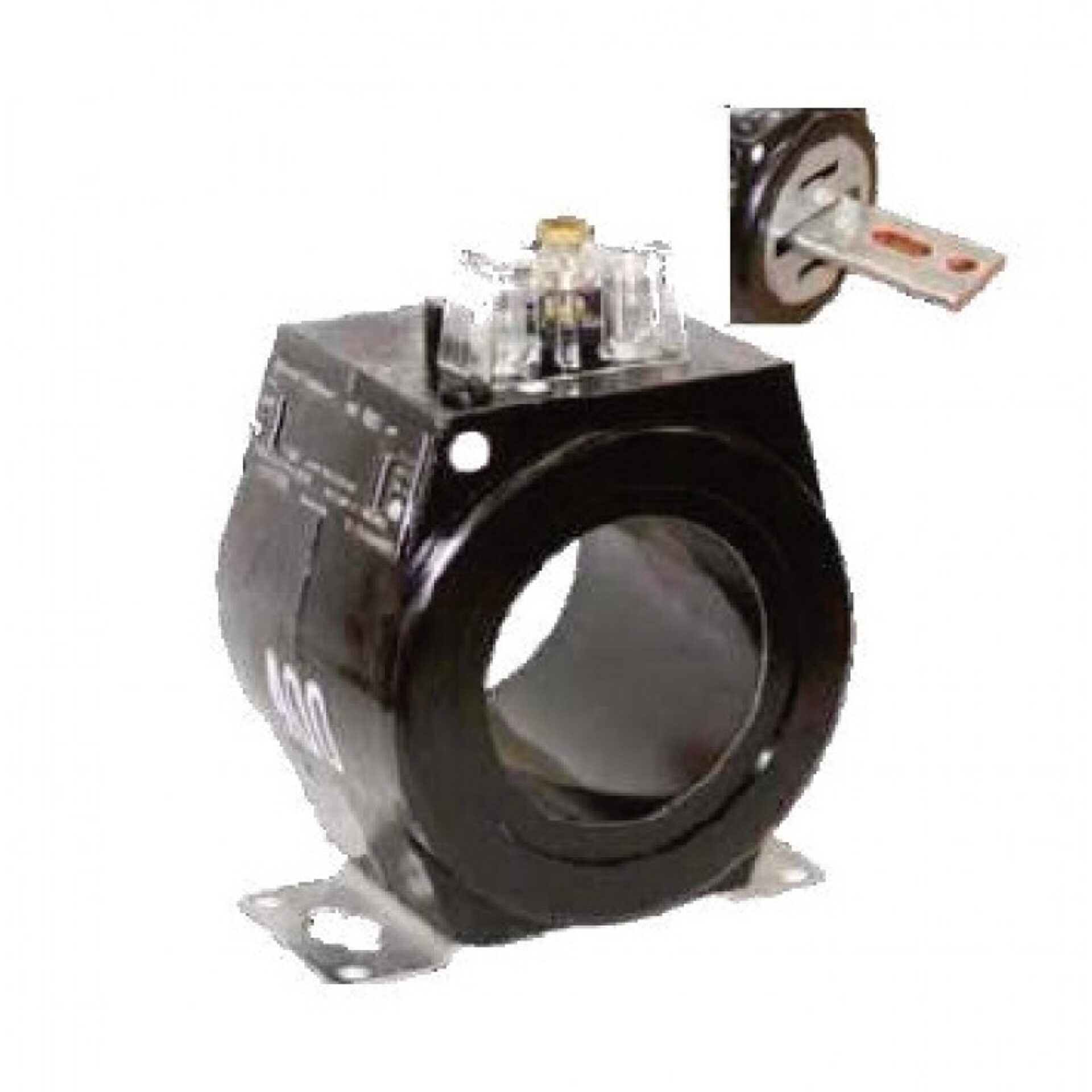

Model JAK-0C Indoor/Outdoor Current Transformer - Primary Bar Type Single Ratio
Introducing the Model JAK-0C Indoor/Outdoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed with precision and durability in mind, this current transformer is ideal for a wide range of electrical measurement and monitoring applications. Whether you need to measure current in indoor or outdoor environments, the Model JAK-0C offers reliable performance, ensuring accurate readings and long-lasting operation.
Overview
Introducing the Model JAK-0C Indoor/Outdoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed with precision and durability in mind, this current transformer is ideal for a wide range of electrical measurement and monitoring applications. Whether you need to measure current in indoor or outdoor environments, the Model JAK-0C offers reliable performance, ensuring accurate readings and long-lasting operation.
a global leader in electrical and electronic manufacturing, this current transformer reflects a commitment to quality and technological innovation. Its robust construction and versatile design make it suitable for various settings, including industrial, commercial, and utility applications. The primary bar-type configuration with a single ratio ensures straightforward installation and easy integration into existing systems, providing consistent and precise current measurements.
Spectrum Industries takes pride in offering products that meet the highest standards of performance and reliability. The Model JAK-0C is no exception, combining ’s advanced engineering with Spectrum’s dedication to customer satisfaction. Whether used for monitoring power systems, protecting equipment, or conducting electrical diagnostics, this current transformer is a dependable choice for professionals seeking accuracy and durability in their measurement tools.
Request a Quote for Model JAK-0C Indoor/Outdoor Current Transformer - Primary Bar Type Single Ratio
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 15 lbs
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Primary Current Range
- 100-3,000 A
- Window Diameter
- 1.50 in / 2.60 in / 3.062 in
- Environment
- Indoor / Outdoor
- Primary Bar Length
- 11.88 in standard; 14.50 in available on request
- Construction
- Encapsulated core & coil in molded Valox thermoplastic case
- Base Mounting Options
- Low Base, High Base
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- IEEE meter accuracy class at 60 Hz, from B0.1 up to the rated burden shown per catalog row
- Input Voltage Option — Volts
- 600
- Input Voltage Option — AC/DC
- AC
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 100 | 5 | 100:5 | 0.3B0.2 | 4 | 4 |
| 100 | 5 | 100:5 | 0.3B0.2 | 4 | 4 |
| 200 | 5 | 200:5 | 0.3B0.5 | 4 | 4 |
| 200 | 5 | 200:5 | 0.3B0.5 | 4 | 4 |
| 300 | 5 | 300:5 | 0.3B0.5 | 4 | 2.9 |
| 300 | 5 | 300:5 | 0.3B0.5 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.5 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.5 | 4 | 2.9 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.4 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.4 |
| 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.8 |
| 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.8 |
| 800 | 5 | 800:5 | 0.3B0.5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 0.3B0.5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B1.8 | 1.5 | 1.1 |
| 1200 | 5 | 1200:5 | 0.3B1.8 | 1.5 | 1.1 |
| 1500 | 5 | 1500:5 | 0.3B1.8 | 1.5 | 1.1 |
| 1500 | 5 | 1500:5 | 0.3B1.8 | 1.5 | 1.1 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1 | 0.7 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1 | 0.7 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1 | 0.7 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1 | 0.7 |
