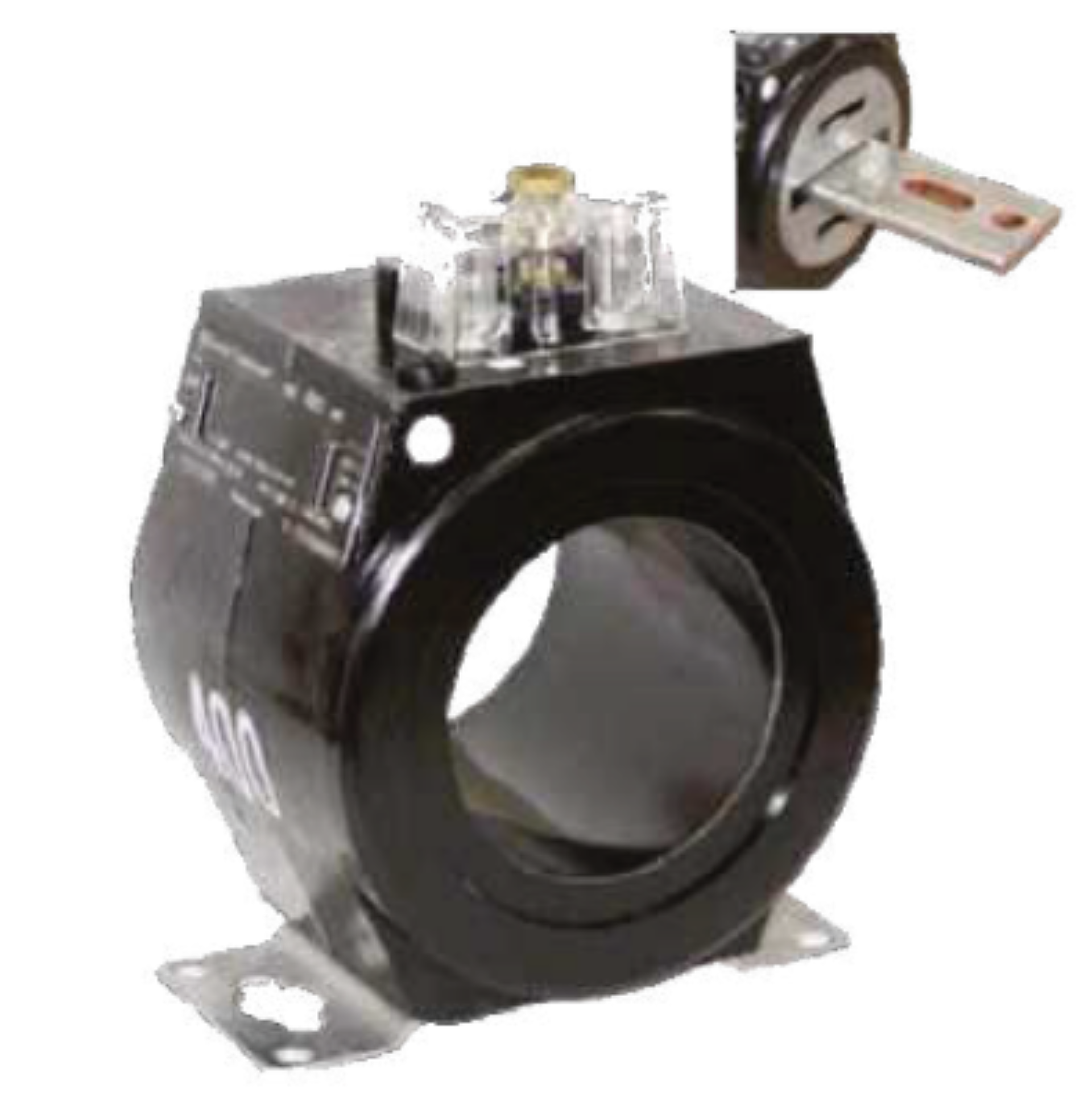

Model JAK-0C Indoor/Outdoor Current Transformer - Window Type Dual Ratio
Overview
Introducing the Model JAK-0C Indoor/Outdoor Current Transformer, a versatile and reliable solution for precise current measurement applications. and distributed by Spectrum Industries, this innovative device is designed to meet the demanding needs of both industrial and commercial environments. Its compact window-type dual-ratio design allows for easy installation on existing wiring without the need to disconnect circuits, making it an efficient choice for maintenance and upgrades.
Built with durability and accuracy in mind, the Model JAK-0C features a robust construction that ensures long-term performance even in challenging conditions. Its dual-ratio capability provides flexibility, enabling users to select the appropriate ratio for their specific measurement requirements. Whether used indoors or outdoors, this current transformer offers dependable operation, making it suitable for a wide range of applications such as energy management, power monitoring, and electrical system analysis.
a name synonymous with quality and innovation in electrical equipment, the Model JAK-0C embodies the company's commitment to delivering high-performance products. Spectrum Industries’ distribution of this transformer ensures that customers receive a product that combines advanced engineering with ease of use. Overall, the Model JAK-0C is an excellent choice for professionals seeking an accurate, durable, and adaptable current transformer for their electrical measurement needs.
Request a Quote for Model JAK-0C Indoor/Outdoor Current Transformer - Window Type Dual Ratio
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 12 lbs
- Mounting
- Indoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Rated Voltage
- 600 V
- Window Diameter
- 2.60 in / 3.062 in
- Service Environment
- Indoor / Outdoor
- Weight - Low Base Adder
- 0.7 lbs
- Weight - High Base / Wide Base Adder
- High Base +1.0 lbs
- Case Material
- Valox thermoplastic polyester resin, polyurethane resin encapsulation
- Secondary Terminals
- Tin-plated brass, compression type, 0.275 in cross-hole, 1/4-28 clamp screw, interlocked shorting device
- Primary Bar Assembly Catalog Number
- See variant notes (0821C34762-1/-2/-9/-10, 0821B38171)
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- IEEE Meter Accuracy Class, 60 Hz, 0.3% class from B0.1 to the burdens shown in the catalog table
Specification Table
| Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 5 | 200/400:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 200/400:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 300/600:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 300/600:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 400/800:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 400/800:5 | 0.3B0.5 | 2 | 1.5 |
| 5 | 1000/2000:5 | 0.3B0.5 | — | — |
| 5 | 1000/2000:5 | 0.3B0.5 | — | — |
| 5 | 1500/3000:5 | 0.3B0.5 | — | — |
| 5 | 1500/3000:5 | 0.3B0.5 | — | — |
