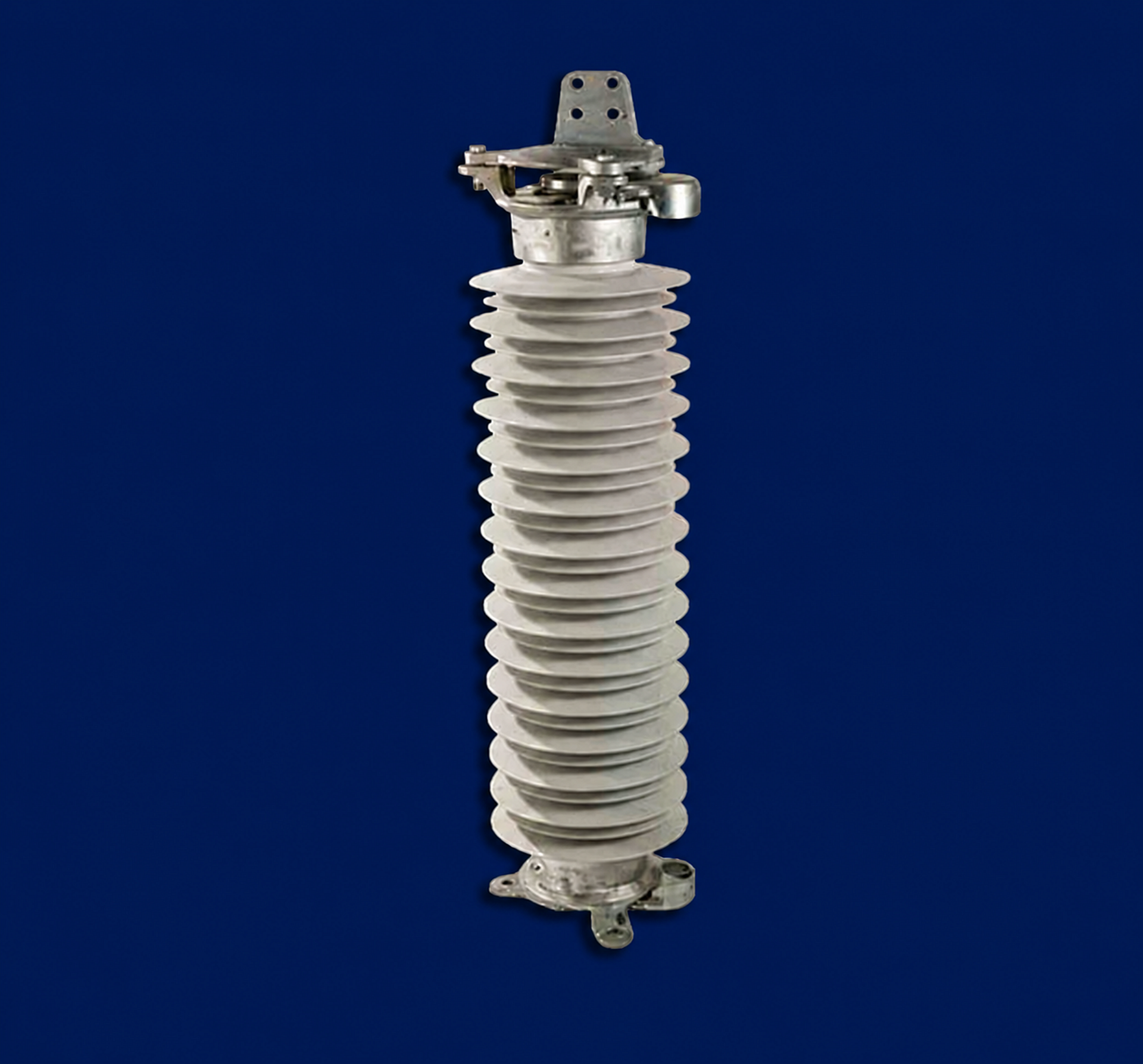

Intermediate Class Polymer Arrester

Name: Spectrum Industries
Price range: $

Polymer intermediate-class metal-oxide surge arresters for mid-voltage distribution and industrial systems, kV ratings from 3 to 144 kV.

Our 9L12 Series is a polymer intermediate class metal-oxide surge arrester family for mid-voltage distribution and industrial systems 3-144 kV.

Rated Voltage (kV rms)

Duty-cycle rating, 3–144 kV.

Terminal / Mounting

Extra-High Creepage Housing

Installation Altitude

Standard rating is 6,000 ft (1,800 m); specify if higher.

Contact sales

Overview

Applied on mid-voltage distribution feeders, industrial substation bus positions, and generator step-up transformer terminals rated 3 through 144 kV. The 9L12 Series bridges the gap between distribution class and station class arresters, delivering higher energy handling and TOV capability at a lighter weight and lower cost than porcelain station arresters.

Construction uses a gapless metal-oxide varistor stack encapsulated in a silicone rubber polymer housing with epoxy-fibreglass module and stainless-steel end fittings. Housing is hydrophobic, non-fragmenting under pressure-relief events, and provides excellent tracking resistance for polluted environments. Both NEMA 4-hole and single-eyebolt mounting configurations are supplied. Each unit is factory routine-tested per ANSI/IEEE C62.11 for reference voltage, watts loss, and residual voltage.

Typical deployments include distribution substation transformer terminals, industrial plant substation apparatus, wind and solar collector substations, and cable-riser applications above 36 kV. Refer to the attached data sheet for MCOV, kV, and discharge current selection; contact our engineering team for non-standard mounting or higher-energy applications.

Specification Table

Housing	Class	Mounting	Rated Voltage (kV)	MCOV (kV)	Max Discharge Voltage (0.5 µs, kV)	Switching Surge Protective Level (kV)	Discharge Voltage (1.5 kA)	Discharge Voltage (3 kA)	Discharge Voltage (5 kA)	Discharge Voltage (10 kA)	Discharge Voltage (20 kA)	Discharge Voltage (40 kA)	Height (in)	Height (mm)	Creepage (in)	Creepage (mm)	Weight (lbs)	Weight (kg)
polymer	Intermediate	4-Hole NEMA	3	2.55	8.6	6.4	6.8	7.2	7.5	8.1	9	10.1	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	Eyebolt	3	2.55	8.6	6.4	6.8	7.2	7.5	8.1	9	10.1	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	4-Hole NEMA	6	5.1	17.1	12.7	13.6	14.4	15	16.2	17.9	20.2	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	Eyebolt	6	5.1	17.1	12.7	13.6	14.4	15	16.2	17.9	20.2	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	4-Hole NEMA	9	7.65	25.8	19.1	20.5	21.6	22.6	24.4	27	30.4	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	Eyebolt	9	7.65	25.8	19.1	20.5	21.6	22.6	24.4	27	30.4	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	4-Hole NEMA	10	8.4	28.4	21.1	22.6	23.8	24.9	26.9	29.8	33.5	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	Eyebolt	10	8.4	28.4	21.1	22.6	23.8	24.9	26.9	29.8	33.5	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	4-Hole NEMA	12	10.2	34.1	25.3	27.1	28.6	29.9	32.3	35.8	40.3	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	Eyebolt	12	10.2	34.1	25.3	27.1	28.6	29.9	32.3	35.8	40.3	6.8	172.7	15.4	391.2	6.2	2.8
polymer	Intermediate	4-Hole NEMA	15	12.7	42.9	31.8	34.1	36	37.6	40.6	44.9	50.6	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	Eyebolt	15	12.7	42.9	31.8	34.1	36	37.6	40.6	44.9	50.6	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	4-Hole NEMA	18	15.3	51.6	38.3	40.9	43.2	45.2	48.8	54	60.9	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	Eyebolt	18	15.3	51.6	38.3	40.9	43.2	45.2	48.8	54	60.9	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	4-Hole NEMA	21	17	56.9	42.2	45.1	47.7	49.9	53.8	59.6	67.1	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	Eyebolt	21	17	56.9	42.2	45.1	47.7	49.9	53.8	59.6	67.1	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	4-Hole NEMA	24	19.5	68.3	50.6	54.2	57.2	59.9	64.8	71.5	80.6	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	Eyebolt	24	19.5	68.3	50.6	54.2	57.2	59.9	64.8	71.5	80.6	12.2	309.9	30.8	782.3	10	4.5
polymer	Intermediate	4-Hole NEMA	27	22	77.4	57.4	61.4	64.9	67.9	73.2	81	91.3	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	Eyebolt	27	22	77.4	57.4	61.4	64.9	67.9	73.2	81	91.3	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	4-Hole NEMA	30	24.4	85.3	63.3	67.7	71.5	74.8	80.7	89.3	101	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	Eyebolt	30	24.4	85.3	63.3	67.7	71.5	74.8	80.7	89.3	101	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	4-Hole NEMA	36	29	102	76	81.3	85.9	89.8	96.9	107	121	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	Eyebolt	36	29	102	76	81.3	85.9	89.8	96.9	107	121	17.6	447	46.2	1173.5	13.5	6.1
polymer	Intermediate	4-Hole NEMA	39	31.5	108.4	80.4	86.1	90.9	95.1	102.6	113.6	127.9	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	Eyebolt	39	31.5	108.4	80.4	86.1	90.9	95.1	102.6	113.6	127.9	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	4-Hole NEMA	45	36.5	125.1	92.8	99.3	104.9	109.8	118.4	131.1	147.6	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	Eyebolt	45	36.5	125.1	92.8	99.3	104.9	109.8	118.4	131.1	147.6	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	4-Hole NEMA	48	39	136.6	101.3	108.4	114.5	119.8	129.2	143	161.1	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	Eyebolt	48	39	136.6	101.3	108.4	114.5	119.8	129.2	143	161.1	23	584.2	61.6	1564.6	17	7.7
polymer	Intermediate	4-Hole NEMA	54	42	147.9	109.7	117.4	125	129.7	139.9	154.9	174.5	28.4	721.4	77	1955.8	19.6	8.9
polymer	Intermediate	Eyebolt	54	42	147.9	109.7	117.4	125	129.7	139.9	154.9	174.5	28.4	721.4	77	1955.8	19.6	8.9
polymer	Intermediate	4-Hole NEMA	60	48	165	122.4	131	138.3	144.7	156.1	172.8	195	28.4	721.4	77	1955.8	19.6	8.9
polymer	Intermediate	Eyebolt	60	48	165	122.4	131	138.3	144.7	156.1	172.8	195	28.4	721.4	77	1955.8	19.6	8.9
polymer	Intermediate	4-Hole NEMA	72	57	199	147.7	158.1	166.9	174.6	188.4	209	235	33.8	858.5	92.4	2347	23.1	10.5
polymer	Intermediate	Eyebolt	72	57	199	147.7	158.1	166.9	174.6	188.4	209	235	33.8	858.5	92.4	2347	23.1	10.5
polymer	Intermediate	4-Hole NEMA	90	70	250	185.7	198.7	209.8	219.5	236.8	262	295	44	1117.6	109	2768.6	52	23.6
polymer	Intermediate	Eyebolt	90	70	250	185.7	198.7	209.8	219.5	236.8	262	295	44	1117.6	109	2768.6	52	23.6
polymer	Intermediate	4-Hole NEMA	96	76	261.7	194.1	207.7	219.4	229.5	247.6	274.1	308.8	44	1117.6	109	2768.6	53	24.1
polymer	Intermediate	Eyebolt	96	76	261.7	194.1	207.7	219.4	229.5	247.6	274.1	308.8	44	1117.6	109	2768.6	53	24.1
polymer	Intermediate	4-Hole NEMA	108	88	296	219.5	234.9	248.1	259.6	280	310	349.2	44	1117.6	109	2768.6	54	24.5
polymer	Intermediate	Eyebolt	108	88	296	219.5	234.9	248.1	259.6	280	310	349.2	44	1117.6	109	2768.6	54	24.5
polymer	Intermediate	4-Hole NEMA	120	98	327.7	243	261	274.7	287.4	310	343.2	386.6	66.5	1689.1	162	4114.8	67.5	30.7
polymer	Intermediate	Eyebolt	120	98	327.7	243	261	274.7	287.4	310	343.2	386.6	66.5	1689.1	162	4114.8	67.5	30.7
polymer	Intermediate	4-Hole NEMA	132	106	375.2	278.3	297.8	314.5	329.1	355	393	443	66.5	1689.1	162	4114.8	67.5	30.7
polymer	Intermediate	Eyebolt	132	106	375.2	278.3	297.8	314.5	329.1	355	393	443	66.5	1689.1	162	4114.8	67.5	30.7
polymer	Intermediate	4-Hole NEMA	144	115	392	290.9	311.3	328.7	343.9	371	411	463	66.5	1689.1	162	4114.8	67.5	30.7
polymer	Intermediate	Eyebolt	144	115	392	290.9	311.3	328.7	343.9	371	411	463	66.5	1689.1	162	4114.8	67.5	30.7
